Duoyi DY517A Digital Manifold Pressure Tester

Category Brand

Duoyi DY517A Digital Manifold Pressure Tester

  • 1/4-inch standard interface design
  • Built-in 89 kinds of refrigerant pressure-evaporation temperature database
  • non-slip silicone design
  • liquid crystal display
  • LCD backlight support

Product Description

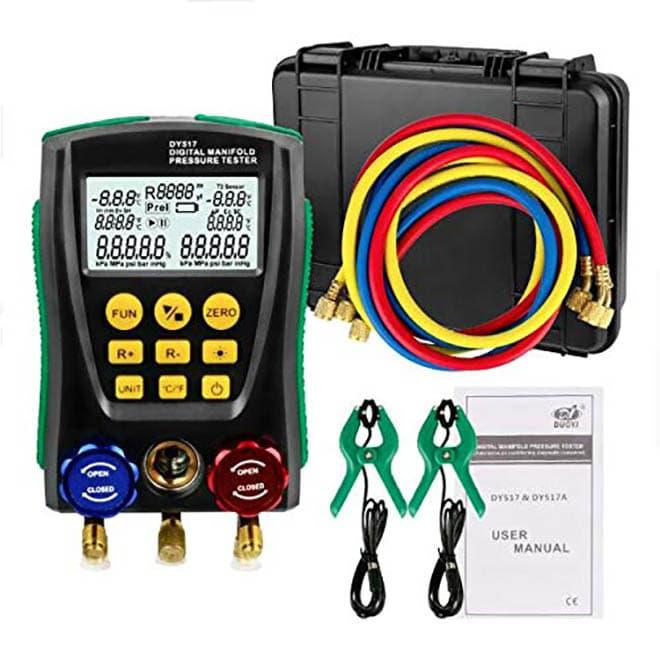

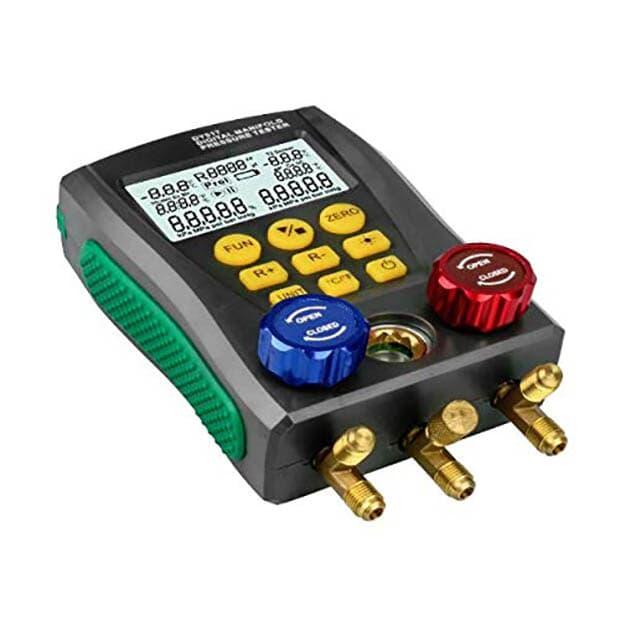

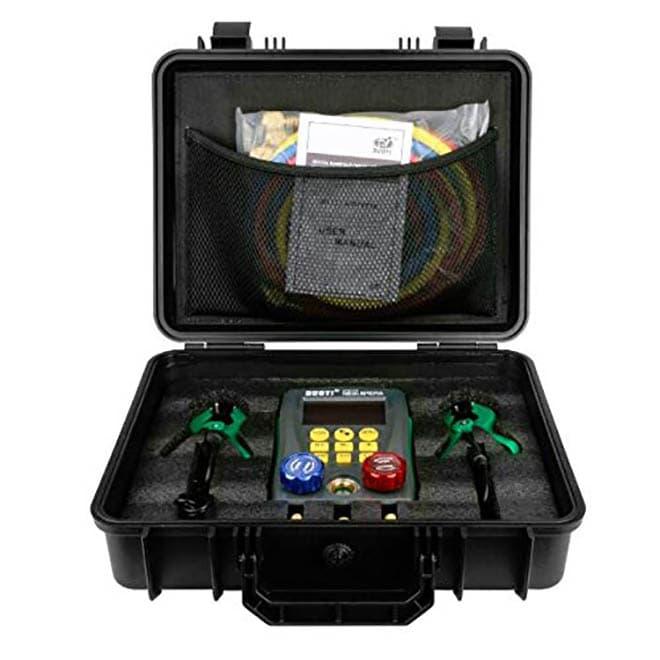

Duoyi DY517A Digital Manifold Pressure Tester

The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners and cold storage. The instrument has double pressure test, dual temperature test (need test clip).

And digital readout, multi-unit switching, multi-mode function and built-in refrigerant database. The instrument uses high-strength engineering plastics and flexible non-slip silicone design, the whole machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability. Large-size liquid crystal display, LCD backlight support, data display clear and easy to read, convenient light operation. Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument’s durability and versatility.

The instrument can measure double pressure (gauge pressure) at the same time, as well as dual temperature measurement , with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs.

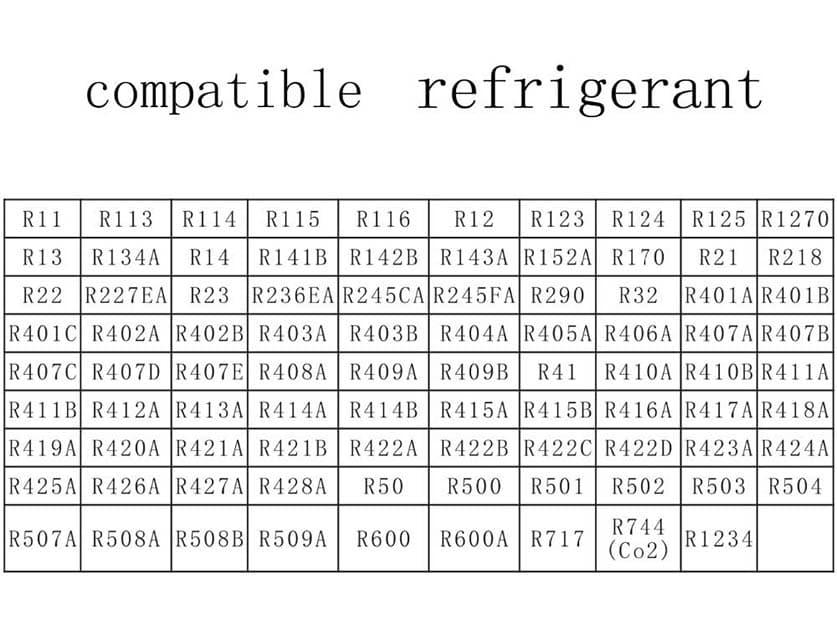

Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data.
Also it tests percentage of vacuum measurement; pressure leak measurement, leak time speed record. It is deserved to have this multi-functional, accurate and simply operated digital manifold let you do the job right.

Features Duoyi DY517A Digital Manifold Pressure Tester :

  • 1/4-inch standard interface design
  • Built-in 89 kinds of refrigerant pressure-evaporation temperature database
  • non-slip silicone design
  • liquid crystal display
  • LCD backlight support

Specifications Duoyi DY517A Digital Manifold Pressure Tester

  • Pressure test: gauge pressure
  • Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
  • Pressure test range: 0 Kpa – 6000 Kpa
  • Pressure test resolution: 1 Kpa
  • Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
  • Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
  • Vacuum test: relative vacuum
  • Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
  • Vacuum test range: -101 Kpa – 0 Kpa
  • Vacuum test resolution: 1 Kpa
  • Temperature test unit: °C (Celsius), °F (Fahrenheit)
  • Temperature test range: -40°C–150°C (-40°F–302°F)
  • Temperature test resolution:
  • 0.1°C (-40°C–99.9°C), 1°C (100°C–150°C)
  • 0.1°F (-40°F–99.9°F), 1°F (100°F–302°F)
  • Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
  • Built-in 89 kinds of refrigerant NIST: According to American NIST standard
  • Power Supply: 4 X 1.5V (SIZE.AA / LR6) Battery not include
  • Dimensions: 170*110*50mm weight: 950g







Duoyi DY517A – Manual


Produk asli Kami distributor langsung Pressure Tester .Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Duoyi

Model

DY517A

Made In

China

Weight

5 Kg
