Trimble TDC600 GNSS Handheld Data Collector
CV. Karya Mandiri Techindo has a wide range of Trimble products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Professional GNSS performance in a rugged smartphone
The Trimble® TDC600 handheld is a sleek, all-in-one rugged smartphone with a built-in professional GNSS receiver. Designed for ease-of-use in a wide range of GIS applications, the TDC600 helps you collect and retrieve highly accurate spatial information while staying in touch with the office—all with a single device. It’s the smart, productive way to collect data and communicate from the field.
Features Trimble TDC600 GNSS Handheld Data Collector :
Multi-functional design
- A modern Android 10.0 operating system with Google Mobile Services certification gives you access to any application—third party or custom-built—to suit your workflow and personalize your device. With the familiar, intuitive interface, you and your teams can start work straight away with no time wasted on set-up and training.
- A super bright 6-inch high definition screen makes for easy viewing in both sunlight and deep shadow.
- With a slim and lightweight form factor, it easily fits in your hand or in a pocket for comfortable operation and portability. A fitted hand strap provides extra handling security while on the job.
- You can leave your phone at home and carry just one device on the job for collecting accurate GNSS data, making phone calls, sending text messages and emails, and accessing the Internet.
|
Built for the field
- Work anywhere at any time and collect accurate real-time spatial data, even without cellular coverage or Wi-Fi connectivity, with the high yield GNSS receiver that supports SBAS.
- A fast, powerful 2.2 GHz Qualcomm® Snapdragon 626 processor handles quick data input and processing with ease.
- The user-replaceable, high capacity battery lets you complete a full day’s work with no interruptions or revisits to the job site, saving time and money.
- Keep in contact with the office with Wi-Fi, Bluetooth 4.1 and 4G LTE cellular connectivity for real time office-to-field collaboration.
- A large 4 GB memory and 64 GB of internal storage provides plenty of room to store data, photos and videos.

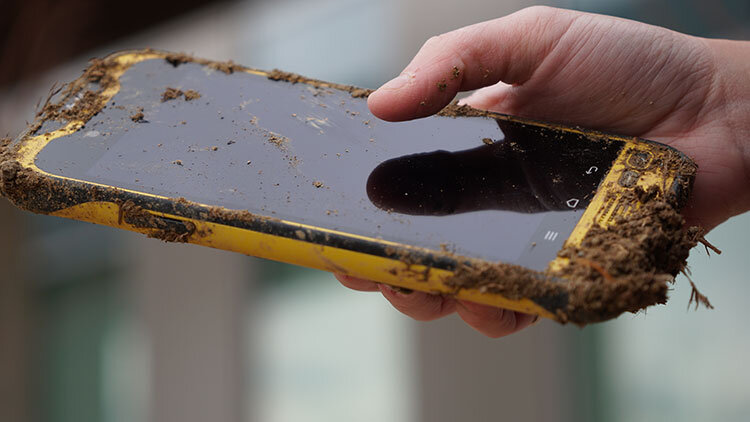

- Work in all weather and conditions for continuous productivity with military specs and IP67 rating which protects against water and dust ingress, and drops, shocks and vibration. The durable design has no need for a protective case.
- High resolution front and rear cameras document assets and site information, and facilitate face to face conversations.
|
Full Trimble solution
- Compatible with Trimble Unity Remote Monitoring and Work Management Software.
- Compatible external Trimble GNSS receivers, such as the Trimble R2 and Trimble R1, are also supported for high-accuracy positioning requirements.
|
Specifications Trimble TDC600 GNSS Handheld Data Collector :
SYSTEM
- Integrated 4G cellular data, text and voice capability
- 5 MP front camera and 13 MP rear camera
- Bluetooth v 4.1
- Wi-Fi IEEE 802.11 a/b/g/n/ac, 2.4 GHz / 5 GHz dual-band
- 6.0 inch LED-backlight screen with capacitive multi-touch
- Long-life user replaceable Li-Ion battery
- 2.2 GHz Qualcomm Snapdragon™ 626 processor
- 4 GB RAM
- 64 GB flash memory1
- 1 MicroSD memory card slot
- Integrated speaker and microphone
OPERATING SYSTEM
- Android 8.0 (Oreo)
- Languages available: Afrikaans, Azebaijani, Bulgarian, Czech, Danish, Dutch, English,
Finnish, French, German, Greek, Hindi, Hungarian, Italian, Korean, Lithuanian,
Norwegian (Bokmål), Polish, Portuguese (Portugal and Brazil), Romanian, Russian,
Serbian (Cyrillic), Simplified Chinese, Spanish, Swedish, Turkish
- Software package includes: Google Mobile Services
|
COMMUNICATIONS2
- Cellular: GSM (850/900/1800/1900), WCDMA (B1/B2/B5/B8), LTE-FDD (B1/B2/
B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B28), LTE-TDD (B38/B39/B40/B41),
TD-SCDMA (B34/B39)
- Wi-Fi IEEE 802.11 a/b/g/n/ac
- Bluetooth 4.1
- NanoSIM x 2
- USB 3.0 (Type-C)
- NFC
STANDARD ACCESSORIES
- Hand strap
- A/C charger
- USB cable
- Lanyard
OPTIONAL ACCESSORIES
- External magnetic GPS antenna
- Pole bracket
- Replacement batteries
|
PERAWATAN :
Selain dikalibrasi rutin ada baiknya untuk perawatan hariannya, setelah theodolite digunakan dilap dari kotoran atau debu yang menemepel menggunakan kain bersih atau majun dengan sedikit minyak kayu putih.
MANFAAT KALIBRASI :
- Menjaga kondisi instrumen ukur dan bahan ukur agar tetap sesuai dengan spesefikasinya
- Untuk mendukung sistem mutu yang diterapkan di berbagai industri pada peralatan laboratorium dan produksi yang dimiliki.
- Bisa mengetahui perbedaan (penyimpangan) antara harga benar dengan harga yang ditunjukkan oleh alat ukur.
- Kalibrasi Sebaiknya Dilakukan Secara Rutin & Berkala, Baiknya Alat Itu Dikalibrasi Per 6 Bulan Sekali Atau Waktu Pemakaian Alat Sudah Mencapai 1.000 jam.
Produk asli Kami distributor langsung Trimble . Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilaya indonesia.
Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.
