Description
Bante 221 Portable ORP Meter
Karya Mandiri Techindo has a wide range of Bante products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Professional portable ORP meter, 1 point calibration, setup menu contains 9 options, accuracy: 0.2 mV.
Features Bante 221 Portable ORP Meter
- Professional portable ORP meter is equipped with a backlit LCD display.
- 1 point offset calibration allows adjusting the displayed value to a known standard.
- Relative and absolute millivolt modes ensure the reliable oxidation-reduction potential measurements.
pH Mode
- 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
- Automatic electrode diagnosis shows the pH slope and zero offset.
- Automatic temperature compensation ensures accurate readings over the entire range.
- Calibration due alarm reminds user to calibrate the meter regularly.
Other Features
- Auto-read function senses and locks the measurement endpoint.
- Auto-power off effectively conserves battery life.
- Setup menu allows setting the number of calibration points, resolution, stability criteria, date and time, etc.
- Reset function automatically restores all settings to the factory defaults.
- Expanded memory stores or recalls up to 500 data sets.
- USB communication interface for data transfer or connecting a power adapter to the meter.
Specifications Bante 221 Portable ORP Meter
| Model | Bante221 | |
| ORP | ||
| Range | -1999.9 to 1999.9 mV | |
| Resolution | 0.1 / 1 mV, selectable | |
| Accuracy | ±0.2 mV | |
| Calibration | 1 point | |
| Measurement Modes | Relative / Absolute mV | |
| pH | ||
| Range | -2.000 to 20.000 pH | |
| Resolution | 0.001 / 0.01 / 0.1 pH, selectable | |
| Accuracy | ±0.002 pH | |
| Calibration | 1 to 5 points | |
| pH Buffer Options | USA / NIST / DIN / 2 custom buffers | |
| Temperature | ||
| Range | 0 to 105°C / 32 to 221°F | |
| Resolution | 0.1°C/°F | |
| Accuracy | ±0.5°C / ±0.9°F | |
| Calibration | 1 point | |
| Calibration Range | Reading ±10°C/°F | |
| Other Specifications | ||
| Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic | |
| Hold Function | Manual / Auto-read measurement endpoint | |
| Stability Criteria | Low / High | |
| Calibration Due Alarm | 1 to 31 days or off | |
| Auto-Power Off | 10 / 20 / 30 minutes after last key pressed | |
| Memory | Stores up to 500 data sets | |
| Output | USB communication interface | |

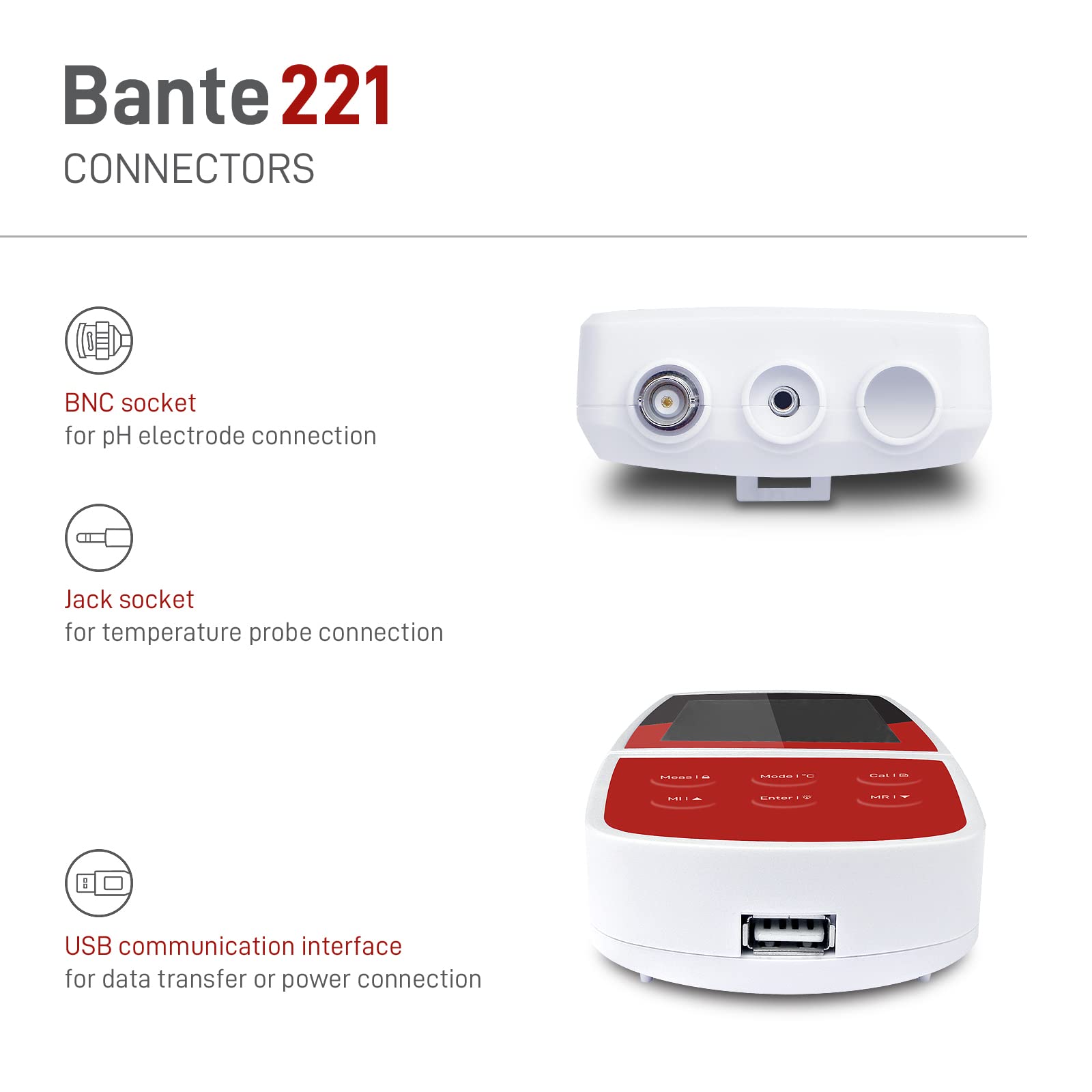

| Connector | BNC, 3.5 mm jack socket | |
| Display | Custom LCD (80 × 60 mm) | |

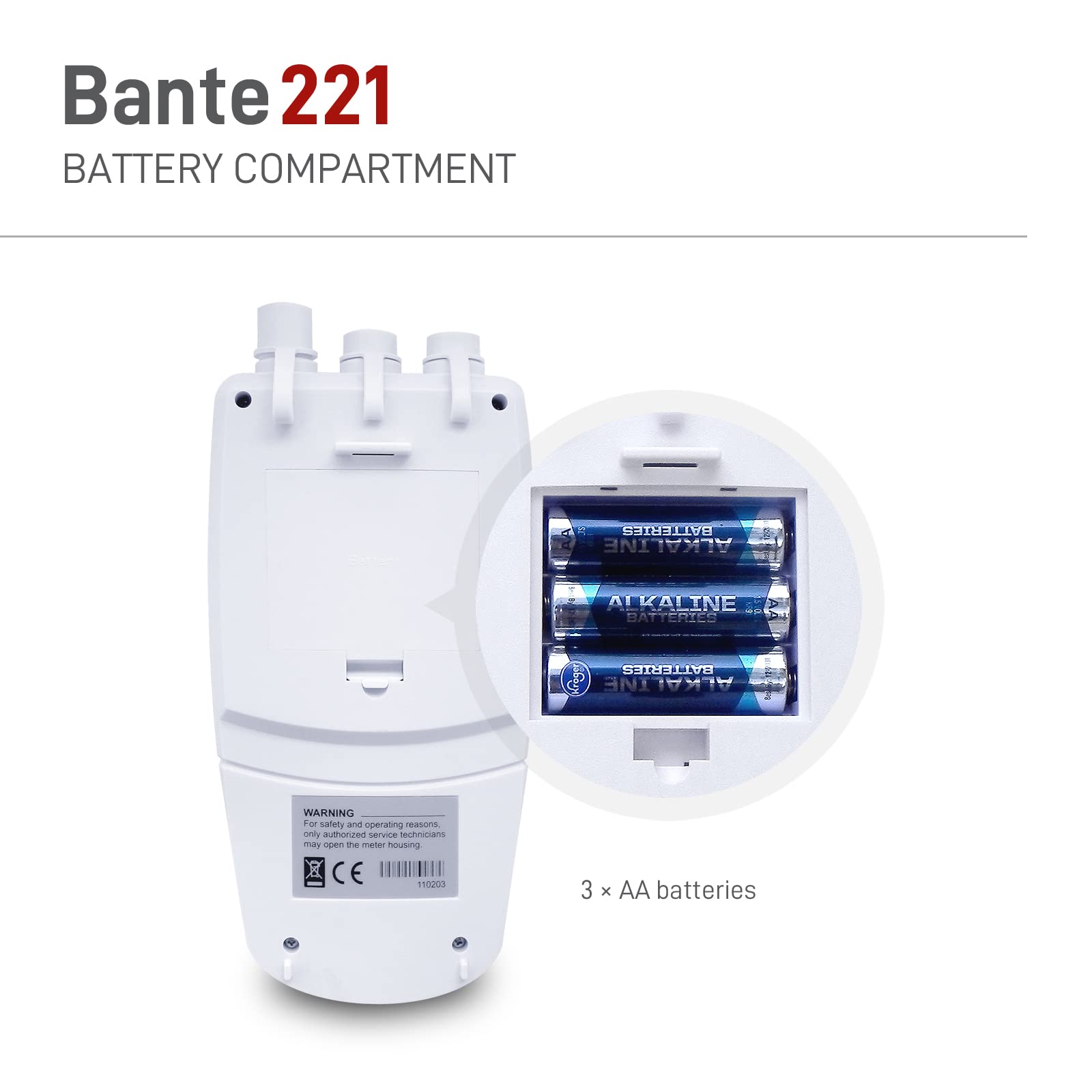

| Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter | |
| Battery Life | Approximately 150 hours without backlight | |
| Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
| Dimensions | 170 × 85 × 30 mm | |
| Weight | 300 g |
Bante 221 – Datasheet
