Description

Bante 540 Portable Conductivity/TDS/Salinity Meter

Karya Mandiri Techindo has a wide range of Bante products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Professional portable conductivity meter, selectable TDS, salinity and resistivity measurement modes, 1 to 5 points calibration, setup menu contains 12 options, accuracy: 0.5% F.S.

Features Bante 540 Portable Conductivity/TDS/Salinity Meter

Professional portable conductivity meter is equipped with a backlit LCD display.
1 to 5 points calibration with automatic recognition for conductivity standards.
Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear and pure water compensations, seawater and practical salinity measurement modes.
Automatic temperature compensation corrects conductivity measurements to the reference temperature.
Auto-read function senses and locks the measurement endpoint.
Calibration due alarm reminds user to calibrate the meter regularly.
Calibration log shows the calibration points and factors.
Setup menu allows setting the number of calibration points, stability criteria, temperature unit, date and time, etc.
Reset function automatically restores all settings to the factory defaults.
Expanded memory stores or recalls up to 500 data sets.
USB communication interface enables easy data transfer to a PC.
Multi-mode power scheme (batteries, power adapter, USB port) ensures the smooth operation of the meter.

Specifications Bante 540 Portable Conductivity/TDS/Salinity Meter

Model		Bante540
Conductivity
Range		0 to 20.00, 200.0, 2000 µS/cm, 20.00, 200.0 mS/cm
Resolution		0.001, 0.01, 0.1, 1, automatic
Accuracy		±0.5% F.S.
Calibration		1 to 5 points
Calibration Solutions		10 µS / 84 µS / 1413 µS / 12.88 mS / 111.8 mS
TDS
Range		0 to 10.00, 100.0, 1000 ppm, 10.00, 200.0 ppt
Resolution		0.01, 0.1, 1, automatic
Accuracy		±1% F.S.
TDS Conversion Factor		0.1 to 1.0 (default 0.5)
Salinity
Range		0.00 to 80.00 ppt / 0.00 to 42.00 psu
Resolution		0.01
Accuracy		±1% F.S.
Resistivity
Range		0.00 to 20.00 MΩ
Resolution		0.01
Accuracy		±1% F.S.
Temperature
Range		0 to 105°C / 32 to 221°F
Resolution		0.1°C/°F
Accuracy		±0.5°C / ±0.9°F
Calibration		1 point
Calibration Range		Reading ±10°C/°F
Other Specifications
Temperature Compensation		0 to 100°C / 32 to 212°F, manual or automatic
Temperature Coefficient		0.0 to 10.0%/°C
Pure Water Compensation		Yes
Reference Temperature		20 / 25°C
Cell Constant		K=0.1 / 1 / 10 / Custom
Hold Function		Manual / Auto-read measurement endpoint
Stability Criteria		Low / High
Calibration Due Alarm		1 to 31 days or off
Auto-Power Off		10 / 20 / 30 minutes after last key pressed
Memory		Stores up to 500 data sets
Output		USB communication interface

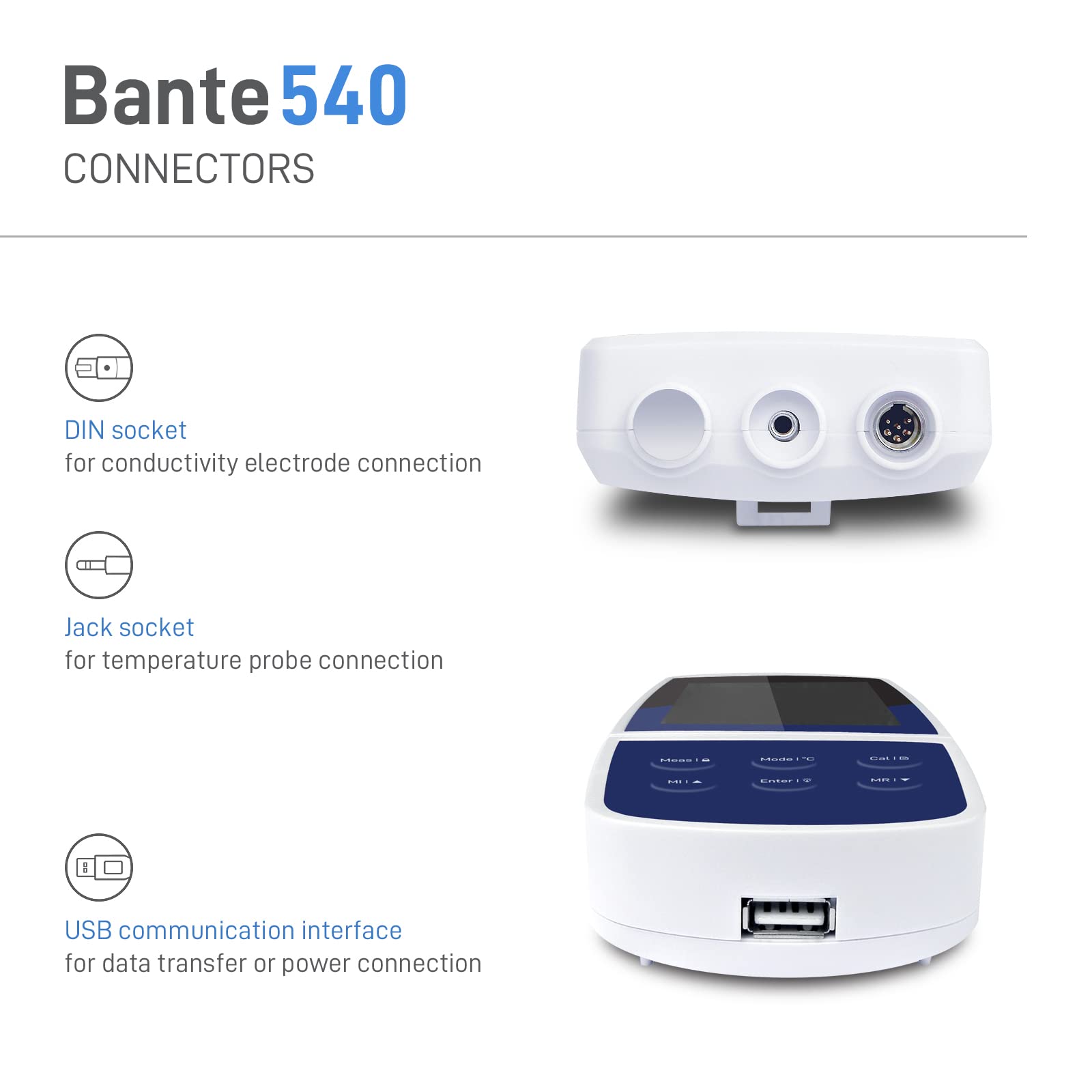

Connector		6-pin mini-DIN, 3.5 mm jack socket
Display		Custom LCD (80 × 60 mm)
Power Supply		3 × 1.5V AA batteries or 5V DC power adapter
Battery Life		Approximately 150 hours without backlight
Environmental Conditions		0 to 50°C / 32 to 122°F, relative humidity < 80%
Dimensions		170 × 85 × 30 mm
Weight		300 g

Bante 5 Series – Datasheet
