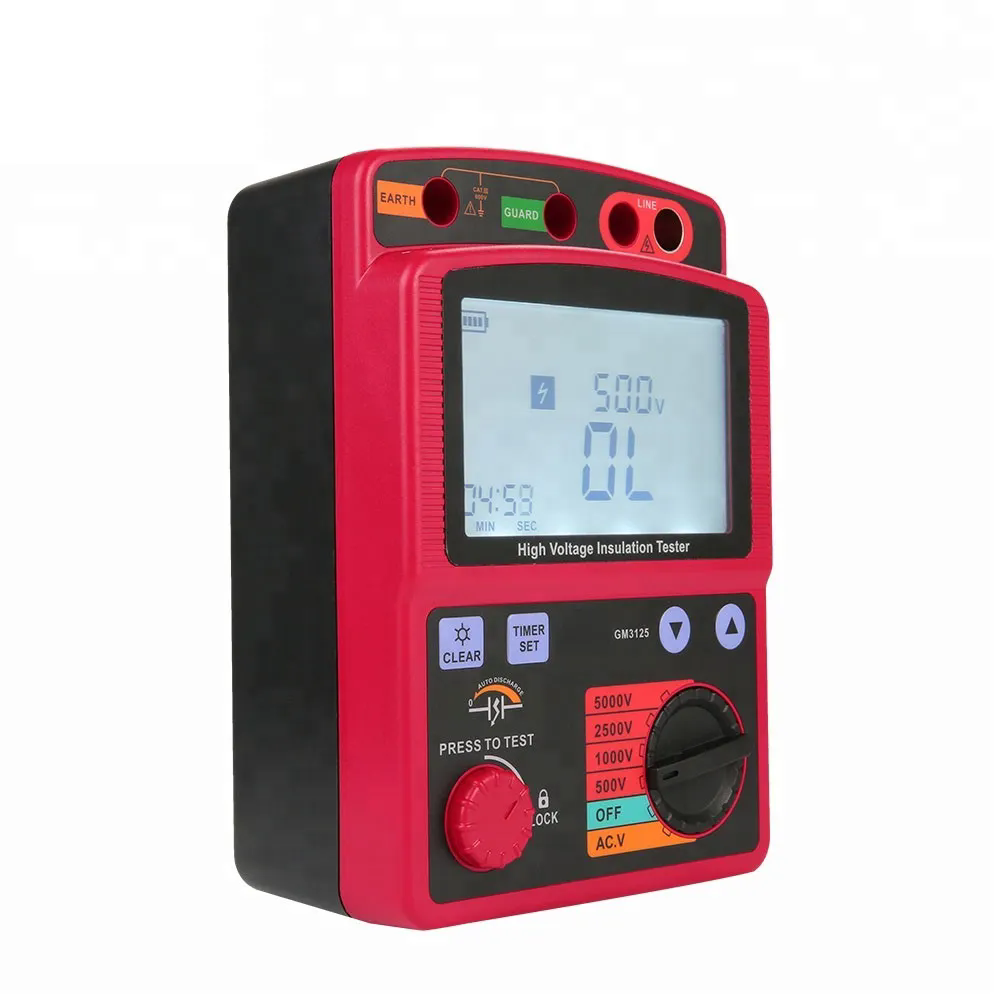

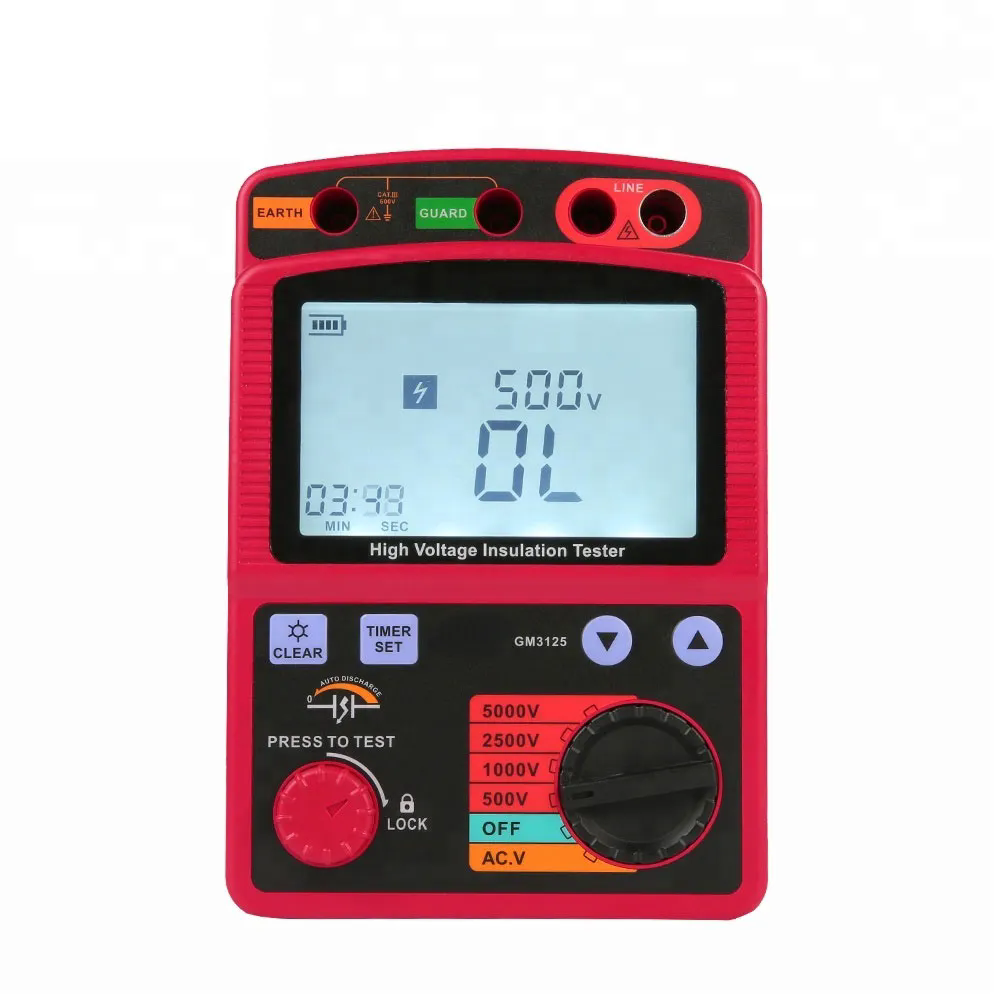

Benetech GM3125 High Voltage Insulation Tester
Karya Mandiri Techindo has a wide range of Benetech products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Benetech GM3125 Insulation Tester We often need a resistance tester in our daily life.
For example, when we are repairing electronic equipment, we need to know the resistance for basic safety.Benetech GM3125 High-voltage Insulation Resistance Tester is your advisable choice. High quality material ensures its strong outer shell, uneasy to crack or break. The precise electronic components make its stable performance and reliable measuring results. High measuring precision and high resolution complete its value and cost performance. You will find it is worthwhile to have one.
Features Benetech GM3125 High Voltage Insulation Tester
- Ergonomic design
- High accuracy with +-5% tolerance
- Feature protective function of voltage overload
- LCD backlight display
- Low battery indicatior
- Auto power off
- Voltage resistance and wide measuring range
Specifications Benetech GM3125 High Voltage Insulation Tester
Insulation resistance tester
| Rated voltage | 500V | 1000V | 2500V | 5000V |
| Test range | 0.0 ~ 99.9MΩ 100 ~ 999MΩ | 0.0~99.9 MΩ 100~999 MΩ 1.00~1.99GΩ | 0.0~99.9 MΩ 100~999 MΩ 1.00~1.99GΩ 10.0~99.9GΩ | 0.0~99.9 MΩ 100~999 MΩ 1.00~9.99GΩ 10.0~99.9GΩ 100~1000GΩ |
| Open circuit voltage | DC 500V +30%, -0% | DC 1000V +20% -0% | DC 2500V +20% -0% | DC 5000V +20% -0% |
| Rated current | 0.5MΩloading 1mA~1.2mA | 1MΩ loading 1mA~1.2mA | 2.5MΩ loading 1mA~1.2mA | 5MΩ loading 1mA~1.2mA |
| Short- circuit current | Approx. 1.3mA | |||
| Accuracy | ±5%rdg±3dgt (0~99.9GΩ) ±20%rdg±3dgt (above 100GΩ) | |||
Voltage tester
30~600V (Resolution 1V)
| DV | OF | |
| Measuring range | ±30~±600V | 30~600V（50/60Hz） |
| Resolution | 1V | |
| Accuracy | ±2%rdg±3dgt | |
Technology parameter
| Technology parameter | Technology index |
| Display | Max. 999 counts LCD display (1000 counts only at 1T is displayed) |
| Over range indication | OL mark appears on insulation resistance range. LO mark appears on voltage’s range. |
| Auto- ranging | Range shifts to upper range: 1000 count Range shifts to lower range: 95 counts (merely on the insulation resistance range) |
| Sample rate | 0.5~ 10 times/sec |
| Operable altitude | Less than 2000m (Indoor use) |
| Operation circumstance | Temperature 0~40℃, humidity <= 85% |
| Storage circumstance | Temperature -20~ 60 , humidity <= 90% |
| Overload protection | Insulation resistance : AC 1200V/ 10s Voltage : AC 720V/ 10s |
| Voltage resistance | AC8320 (50/60Hz)/ 5 second (between electrical circuit and enclosure) |
| Insulation resistance | 1000M of more/ DC 1000V (between electrical circuit and enclosure) |
| Power supply | DC12V (8×1.5V LR14 battery) |
| Battery’s life | Approx. 15 hours |
| Dimension | 153x 96 ×200mm |
| Weight | 1032g (without batteries and test wires) |
Package Includes:
- Benetech GM3125 Insulation Tester
- Test Wires(Red, Black, Green)
- Alligator Clips(Red, Black, Green)
- 1.5V LR14 Alkaline Batteries
- Screw Driver
- Accessory Bag
- User Manual
- Carrying Bag
Benetech GM3125 – Manual
