Product Description

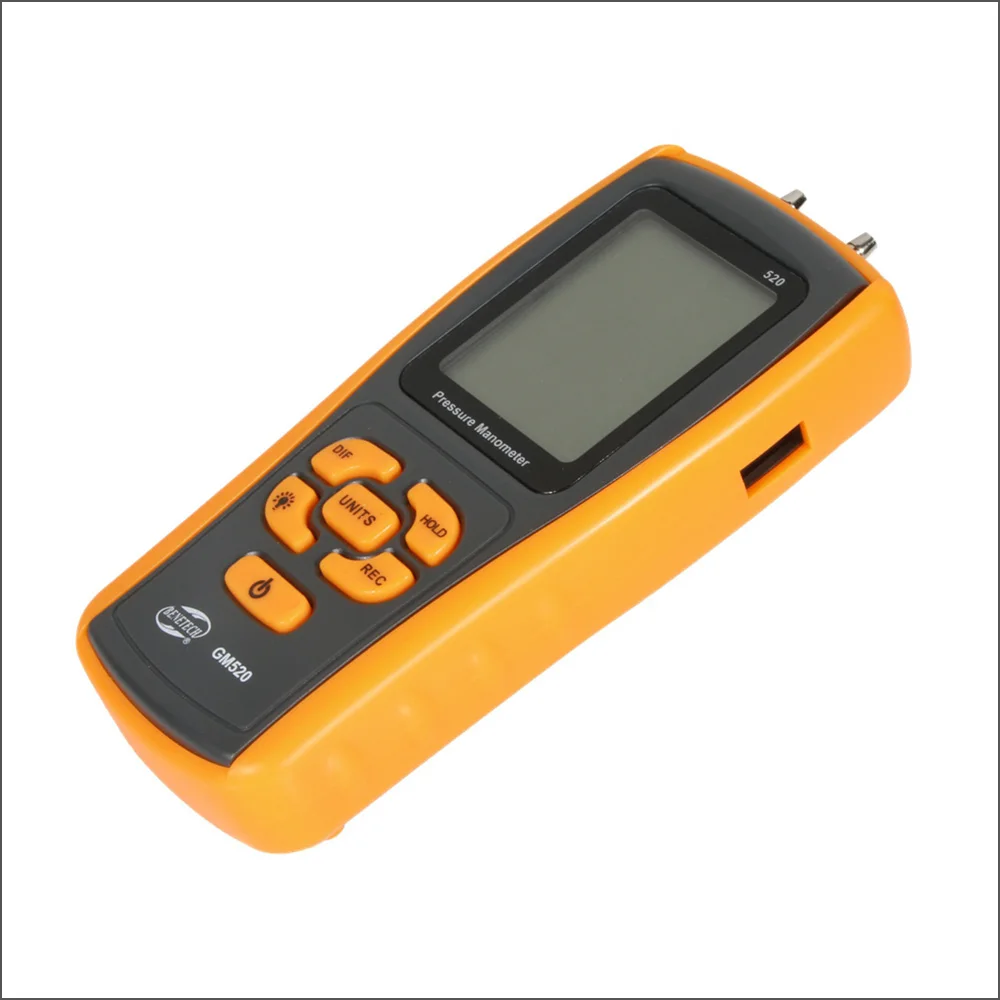

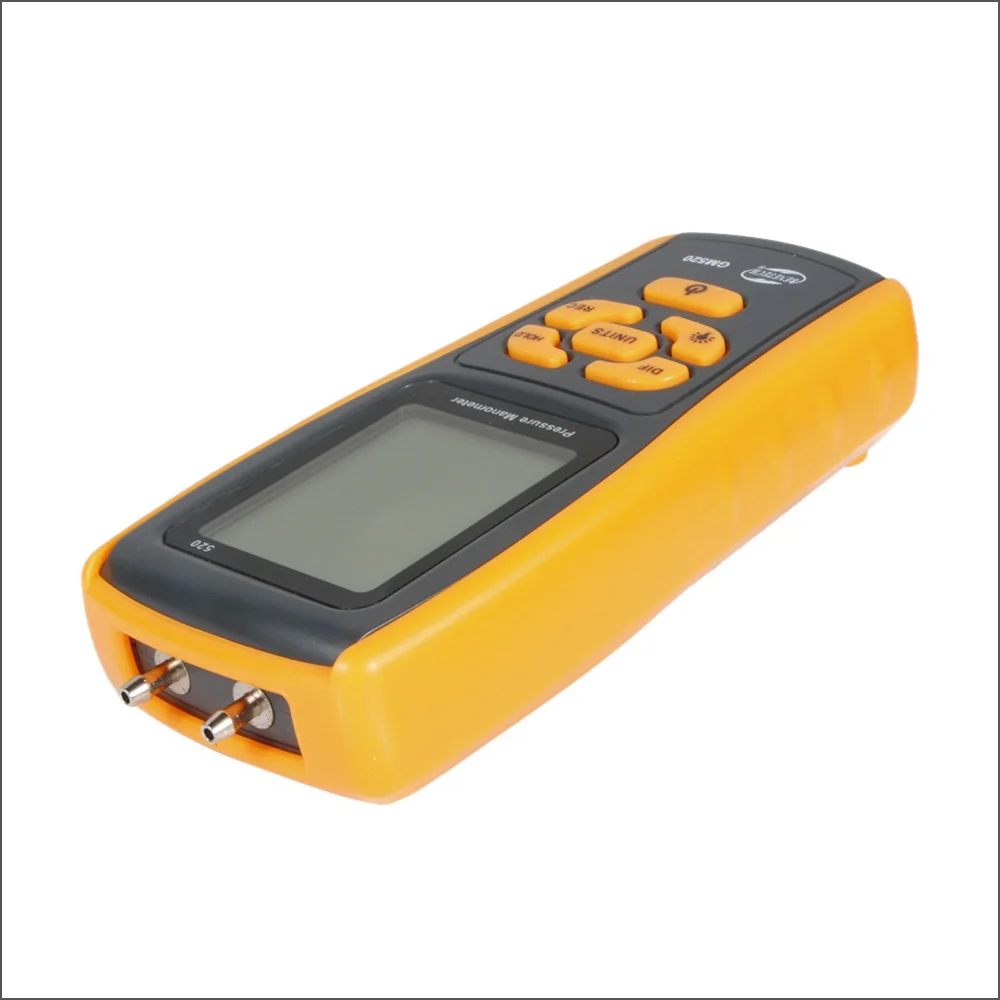

Benetech GM520 Pressure Manometer
Karya Mandiri Techindo has a wide range of Benetech products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
There are following 11 selectable pressure units: bar、mbar、kPa、kgf/cm²、mmHg、cmH2O、Ozf/in²、psi、inHg、inH2O、ftH2O. This unit features data save and adjustment, automatic turn-off, connecting with PC to read and export the data with a USB wire.
Features Benetech GM520 Pressure Manometer
- Large LCD
- Data hold
- With differential mode and record mode
- USB port
- Reset and data adjustment
- Low battery indication and automatic power off
Specifications Benetech GM520 Pressure Manometer
| Measuring range | ±35kPa |
| Accuracy | ±0.3%FSO(25℃) |
| Repeatability | ±0.2%(Maximum＋/－0.5 FSO) |
| Linearity/hysteresis | ±0.29 FSO |
| Response | Typical 0.5s |
| Low battery indication | Yes |
| Up overload indication | Err1 |
| Down overload indication | Err2 |
| Operating temperature | 0~50℃ |
| Storage temperature | -10~60℃ |
| Power supply | 1.5V AAA battery*4 |
| USB communication | Yes |
| Unit | Range | Resolution | Maximum pressure |
| bar | 0.350 | 0.001 | 1.500 |
| mbar | 350.0 | 0.1 | 1500.0 |
| kPa | 35.00 | 0.01 | 150 |
| kgf/cm² | 0.356 | 0.001 | 1.529 |
| mmHg | 262.5 | 0.1 | 1125.0 |
| cmH2O | 356.6 | 0.1 | 1528.5 |
| Ozf/in² | 81.20 | 0.01 | 348.00 |
| psi | 5.076 | 0.001 | 21.755 |
| inHg | 10.33 | 0.01 | 44.29 |
| inH2O | 140.3 | 0.1 | 601.5 |
| ftH2O | 11.69 | 0.01 | 50.10 |
| Environmental temperature compensation | |||
Benetech GM520 – Manual
