Brookfield DVNext Rheometer Viscometer

Description

Brookfield DVNext Rheometer Viscometer

CV. Karya Mandiri Techindo has a wide range of Brookfield products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Advanced Rheometer for Precise Viscosity and Yield Stress Measurements

The DVNext Rheometer by AMETEK Brookfield offers advanced features to ensure repeatability, reliability, and ease of use. Available in both Standard and 21 CFR Part 11 Compliant versions, the DVNext Rheometer is designed for laboratories that require accurate and efficient viscosity and yield stress measurements.

Features Brookfield DVNext Rheometer Viscometer

▶ Standard Version Features

Digital Leveling:

• • Ensures precise instrument setup for accurate measurements.

Start-up Wizard:

• • Simplifies the initial setup process with guided instructions.

Gel-Timer Functionality:

• • Measure gelation time with ease for various applications.

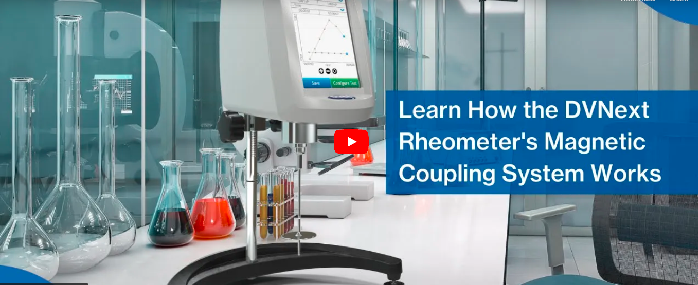

Optional Magnetic Coupling Attachment:

• • Upgrade to a magnetic coupling that replaces the EZ-lock for enhanced spindle security.

Optional Bar Code Scanner:

• • Streamline data entry and sample tracking with a convenient barcode scanner.

17025 Calibration (Optional)

• Achieve compliance with ISO 17025 standards for calibration accuracy.

▶ Compliant Version Features

• Hand-held Scanner for Bar Code Detection:

  Easily capture and input data with a hand-held barcode scanner.

• Accessory Detection with Bar Code:

  Automatically identify and configure accessories using barcode detection for seamless operation.

• Magnetic Coupling Attachment:

  Upgrade to a magnetic coupling that replaces the EZ-Lock for enhanced spindle security and ease of use.

• Compliance with 21CFR Part 11 and GAMP:

  Ensure regulatory compliance in both stand-alone and GAMP-compliant environments.

• Ethernet Connectivity:

  Enable network integration and remote monitoring with Ethernet connectivity.

• LIMS Connectivity:

  Seamlessly connect to Laboratory Information Management Systems (LIMS) for efficient data management.

• Printing to Non-editable PDF:

  Generate secure, non-editable PDF reports directly from the device, ensuring data integrity.

Options

• Cone Plate Version:

  Choose the cone plate version for precise viscosity measurements in small sample volumes.

• Ball Bearing:

  Opt for ball bearing support for enhanced stability and accuracy in high-torque applications.

• Quick Action Stand:

  Select the quick action stand for fast and convenient instrument setup and adjustments.

*Not applicable to HA or HB models

Specifications Brookfield DVNext Rheometer Viscometer

• DVNXLV Model:

  • Viscosity Range: 1 cP* to 6M cP (mPa·s)
  • Speed Range: 0.1 – 250 RPM
  • Speed Increments: 2.6K

• DVNXRV Model:

  • Viscosity Range: 100 cP++ to 40M cP (mPa·s)
  • Speed Range: 0.1 – 250 RPM
  • Speed Increments: 2.6K

• DVNXHA Model:

  • Viscosity Range: 200 cP to 80M cP (mPa·s)
  • Speed Range: 0.1 – 250 RPM
  • Speed Increments: 2.6K

• DVNXHB Model:

  • Viscosity Range: 800 cP to 320M cP (mPa·s)
  • Speed Range: 0.1 – 250 RPM
  • Speed Increments: 2.6K

Why Choose DVNEXT Rheometer?

• Precision and Repeatability:

  Ensure accurate and reliable results with advanced features like digital leveling and real-time graphing.

• Compliance:

  Meet regulatory standards with the 21 CFR Part 11 Compliant version, including features like audit trails and secure data management.

• Versatility:

  Adapt to a wide range of testing needs with optional accessories and configurable features.

What’s Include:

• Instrument: DVNext Rheometer
• Spindles: 6 RV/HA/HB spindles or 4 LV spindles
• RTD Temperature Probe: For precise temperature measurement
• Spindle Guard Leg*: Stabilizes the spindle during viscosity assessments
• Lab Stand: Model G Base for stable testing
• Screen Protector: Protects the touchscreen from wear
• Carrying Case: For easy transport and protection of the instrument

Brookfield DVNext Rheometer – Brochure
