Description

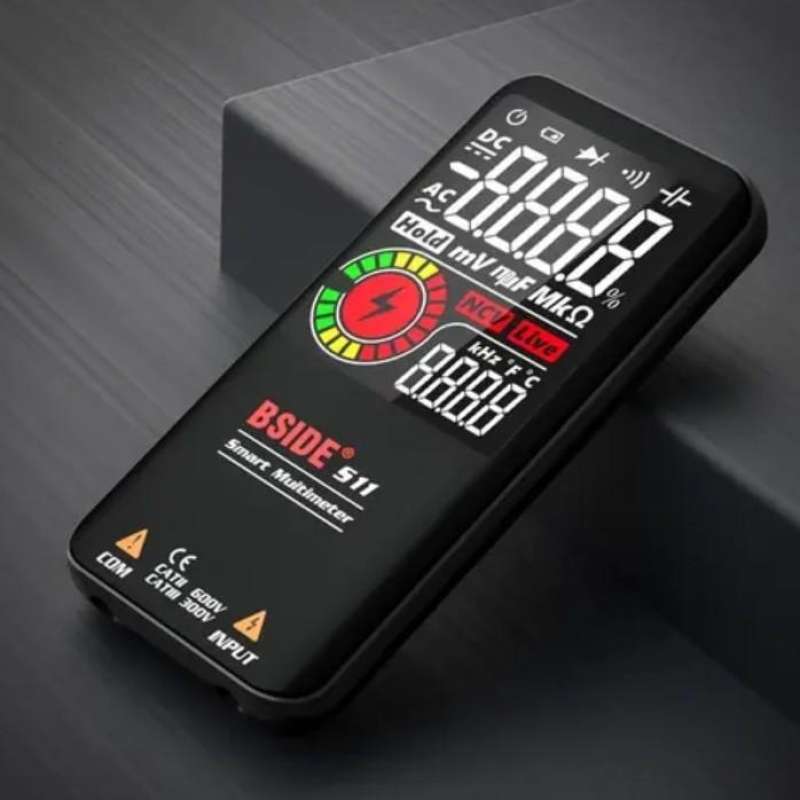

BSIDE S11 Smart Multimeter
Karya Mandiri Techindo has a wide range of BSIDE products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features BSIDE S11 Smart Multimeter
- Multifunctional Multimeter with Wide Test : the digital multimeter can measure AC/ voltage, resistance, capacitance, frequency, diode, continuity, NCV live line.
- Functions: measuring diodes within 3V. when the resistance is less than 50O, the will sound up when measuring resistance. The sounds when live voltage signal recognized
- Rechargeable Li-ion : built-in 800mAh rechargeable li-ion , convenient to use and recharged.
- High Display: the 3.5-inch large EBTN LCD greatly enhance the reading experience, the value is very easy to read even under the sunlight or poor light condition.

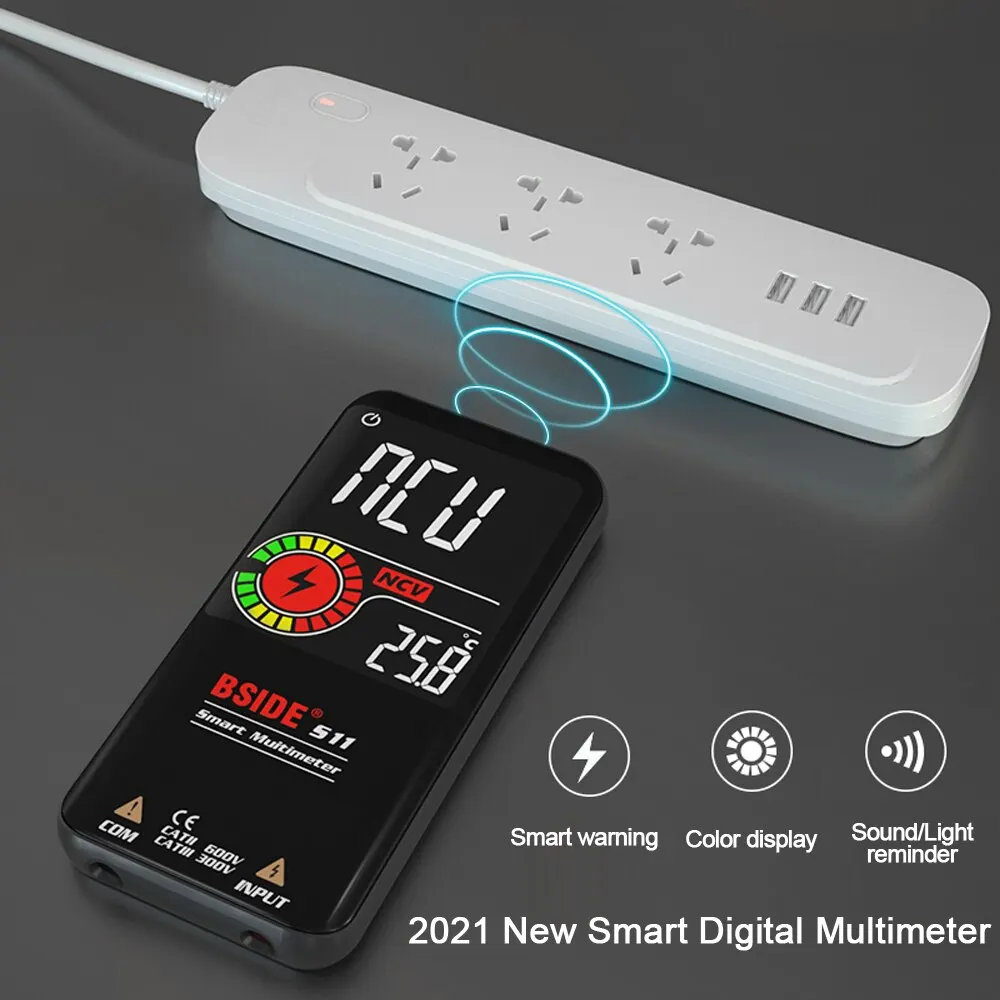

- Reliable & Practical: NCV measurement, auto ranging 9999 counts multimeter with DATA hold function.
- Safety Assurance: with full measuring overload , double insulation , .II 600V and .III 300V safety level.
- Digital Pocket Size Handheld Multimeter: compact portable size designed and with a sleeve and a storage pouch for protecting against shocks, friction and bumps.
Specifications BSIDE S11 Smart Multimeter
| Color | Black / Red (Optional) | ||
| Voltage | 0.8~620V | ||
| AC Voltage | 2.2~620V | ||
| Resistance | 1O~999.9O, 1kO~60MO | ||
| Capacitance | 1nF~999.9nF, 1µF~99.99mF | ||
| Frequency | 1Hz~1kHz(ACV 2~10V), 1Hz~60kHz(ACV10~620V) | ||
| Duty Ratio | 0.1%~99.9% (ACV2~620V) | ||
| Material | ABS | ||
| Safety Level | II 600V, .III 300V | ||
| Display | Color LCD | ||
| Max. Display | 9999 digits | ||
| Sampling | About 0.4 seconds | ||
| Auto -off | 5 minutes | ||
| Operate Environment | 0~40?, 0~80%RH | ||
| Storage Environment | -10~60?, 0~70%RH | ||
| Operate Altitude | 2000m | ||
| Item Size | 143.4 * 70.9 * 15.7mm / 5.65 * 2.79 * 0.62in | ||
| Item Weight | 119g / 4.20oz | ||
| Package Weight | 320g / 11.29oz | ||
| Package Size | 16.9 * 9.5 * 4.4cm / 6.65 * 3.74 * 1.73in |
Packing List
- 1 * Multimeter
- 1 * Pair of Test Pen
- 1 * USB Cable
- 1 * Protective Sleeve
- 1 * Storage Pouch
- 1 * Manual
KARYA MANDIRI TECHINDO adalah Supplier BSIDE S11 Smart Multimeter dan juga menjual Brand BSIDE. Lihat produk kami lainnya di sini JSI, SGI, SMG atau hubungi kami lewat Whatsapp 0821-3010-0456 atau via email karyamandiritechindo@gmail.com.
