CEM AT-9996 True RMS Digital Multimeter with Oscilloscope
Karya Mandiri Techindo has a wide range of CEM products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

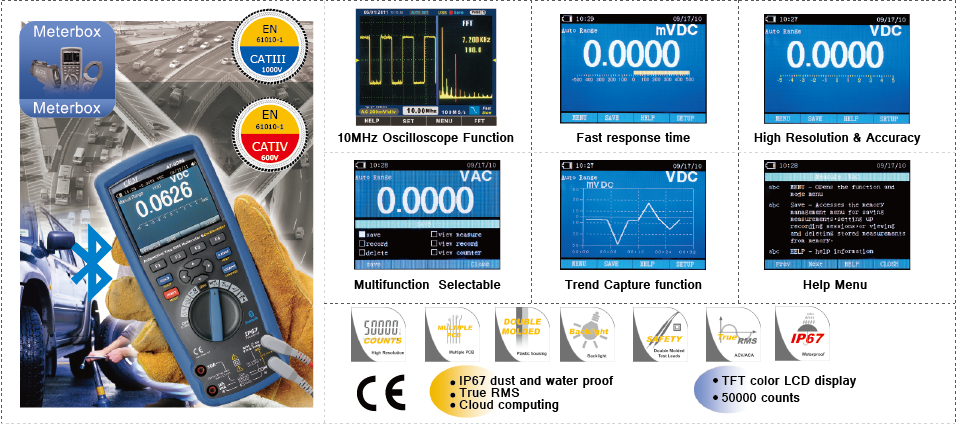

Professional Automotive Oscilloscope DMM with TFT color LCD display AT-9996 is Professional Automotive True RMS Digital Multimeter with oscilloscope functions and TFT color LCD display, providing fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture features. RPM measurement for automotive engines with 2 to 10 Cylinders using the inductive Pick-up. 14 Functions including DCV, ACV, DCA, ACA, Resistance, RPM (Tach), Dwell angle, Duty cycle, Frequency, Temperature(ºC/ºF), Capacitance, Continuity and Diode Check.
Read pulse duty cycle and dwell angle for electronic fuel injection feedback carburetors, and ignition
Measures Milliseconds pulse width to test on-time of fuel injectors, idle air control motors, and electronic trans mission controls.
Safety Conformance
EN61010-1 CAT IV 600V, CAT III 1000V; 1000V input protection on all ranges
10A/1000V & 0.5A/1000V fuses protection on current ranges
Features CEM AT-9996 True RMS Digital Multimeter with Oscilloscope
- Large 50,000 count 320 x 240 TFT color LCD display
- 10MHz/50MS/s bandwidth/Real time sample rate
- Logging function with TrendCapture for easy review of logged data
- Bluetooth PC interface for easy data transfer & accuracy calibration
- 100kHz/100kHz bandwidth (voltage/current)
- AC, AC+DC true-RMS measurements
- Records events and trends
- Saves measurements
- A/D convert fast sampling time
- Peak capture (records transients as fast as 250μs)
- Min/Max/Average with Time stamp (records signal fluctuations)
- Motor winding and low ohm (50Ω) measurement range
- Low pass filter
- IP Rating 67
- Compatible with AC/DC clamp-on adaptor with bluetooth at mV range
Specifications CEM AT-9996 True RMS Digital Multimeter with Oscilloscope
| Oscilloscope Functions | |||
| Display Size | 3.5″ color LCD; 320 x 240 pixels | ||
| Bandwidth | 10MHz | ||
| Real time sample rate | 50MS/s | ||
| Risetime | 17.5ns | ||
| Glitch Capture | 50ns | ||
| Vertical Sensitivity | 20mV to 100V/div | ||
| Vertical Resolution | 8 bits | ||
| Trigger Mode | Ferr Run, Single Shot, Edge | ||
| Trigger Source | CH1 | ||
| Trigger Coupling | AC/DC | ||
| Input impedance | 1MΩ/20pF | ||
| Max Input Volatge | 400V(peak) | ||
| Cursor Measurement | Voltage and time | ||
| Automotive True RMS Multimeter Functions | |||
| Function | Maximum | Max, resolution | Accuracy |
| Voltage DC | 1000V | 1μV | ±(0.025% + 5) |
| Voltage AC | 1000V | 1μV | ±(0.4% + 40) |
| Current DC | 10A | 0.01μA | ±(0.15% + 2) |
| Current AC | 10A | 0.01μA | ±(0.07% + 5) |
| Temperature | -50ºC to 1350ºC | 0.1ºC | ±(1.0% + 1ºC) |
| Resistance | 50MΩ | 0.1Ω | ±(0.05% + 2) |
| Capacitance | 10mF | 0.001nS | ±(1.0% + 5) |
| Frequency | 10MHz | 0.01Hz | ±(0.005% + 1) |
| RPM(Tach) | 600 ~ 4000RPM; 600 ~ 12000RPM(x 10RPM) |
±(2.5%+2d) | |
| Dwell Angle | 1CYL, 2CYL, 3CYL, 4CYL, 5CYL, 6CYL, 8CYL, 10CYL, 12CYL |
±(2.5%+2d) | |
| Duty Cycle | 0.1~99.9% | ±(1.5%+2d) | |
| Period | 0.1~20mS | ±(3.0%+5d) | |
| Pulse Width | 0.1~10mS | ±(3.0%+5d) | |
| Diode and Continuity | Yes | ||
| PC Interface | Bluetooth | ||
| Power Supply | 6 hours Li-ion rechargeable battery;AC Adaptor/charger | ||
| Weight | 631g | ||
| Size(HxWxD) | 220mm x 96mm x 60mm | ||
| Accessories | Test leads, Li-ion batteries, Type K temperature probe, Software, gift box with carrying case | ||
CEM AT 9996 – Datasheet
