Description

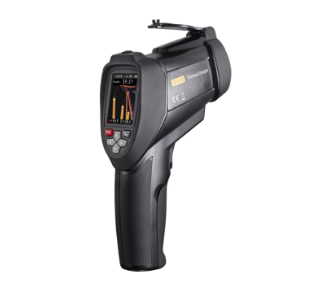

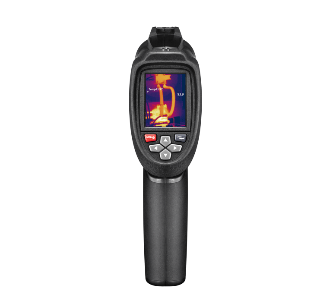

CEM DT-9868S Thermal Camera
Karya Mandiri Techindo has a wide range of CEM Instrument products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
CEM Instruments DT9868S is a Professional InfraRed 32×32 pixels Imager Thermometer with 2.2” color TFT LCD display, 32×32 pixels Imagers & a microSD memory card for capturing Circular images(BMP) for viewing on your PC, providing fast, easy and accurate readings for most surface temperature measurements.
Applications
- Plant/General Maintenance
- HVAC/R
- Transportation/Automotive
- Cooling and Reheating
- Serving areas
- Food service Equipment
Features CEM DT-9868S Thermal Camera
- IR temperature measurement resolution 32×32
- 640*480 pixel video camera
- 2.2″ TFT 320×240 Pixels color LCD display
- Image Capture Frequency 9Hz
- <Thermal Sensitivity (NETD) 100 mK
- Hot Spot and Cold Spot Tracking
- Visual Camera & Images Capture(BMP)
- MicroSD memory card
- Date/time setup controls, Adjustable emissivity & trigger lock
- Li-ion rechargeable battery
- USB interface to smartphone / PC
- Language selection: English, Chinese,French, German, Italia
Specifications CEM DT-9868S Thermal Camera
| Imaging and optical data | |
| Thermal sensitivity (NETD) | 100 mK |
| Image frequency | 9Hz |
| Detector data | |
| Detector type | Uncooled hyper-thin pyroelectric ceramic |
| Spectral range | 8-14μm |
| IR resolution | 32 x 32 pixels |
| Object temperature range | -20°C to 600°C (-4°F to 1112°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Spotmeter | Center spot |
| Emissivity adjustable | 0.10~1.0 Adjustable |
| Single point infrared thermometer | |
| Temperature range | -50°C to 1000°C (-58°F to 1832°F) (9868H) |
| D:S | 50:1(9868H) |
| Basic accuracy | ±1°C (±1.8°F) or ±1% of reading (9868H) |
| Response Time | Less than 150ms (9868H) |
| Micro SD memory card | MAX. support 8GB |
| Field of View | 33° x 33° |
| Color palettes | GRAY/GRAY IRON/ IRON/RAINBOW |
| Image storage format | Standard BMP, including measurement data, on memory card > 1000 pictures |
CEM DT 9868S – Datasheet
