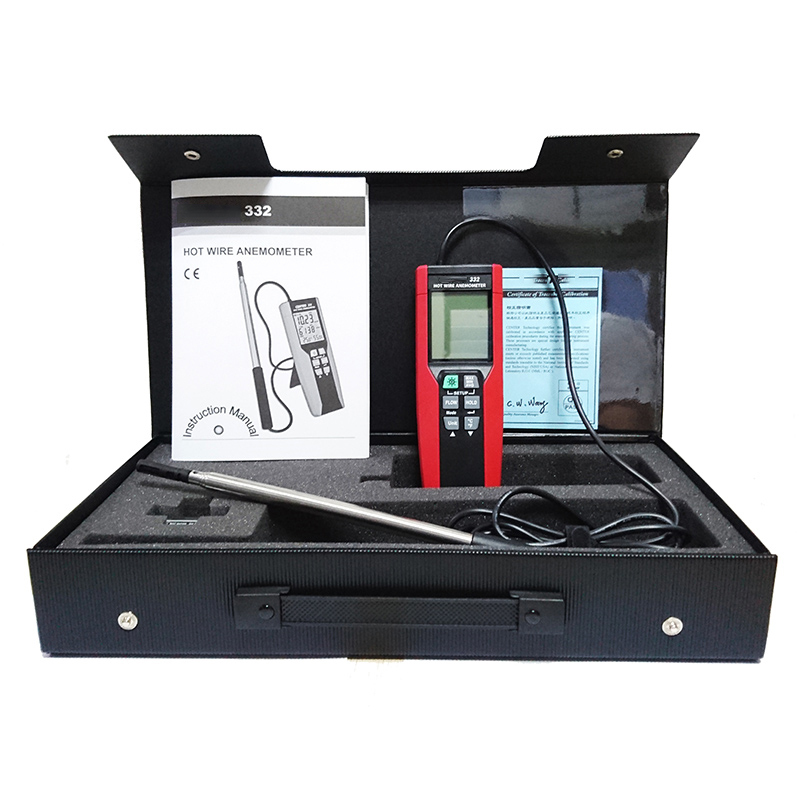

CENTER 332 Hot Wire Anemometer
Karya Mandiri Techindo has a wide range of CENTER products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
CENTER 332 Hot Wire Anemometer is a convenient instrument for measuring instantaneous flow velocity. The advantages of hot wire anemometers are that they minimize their disturbance to the measured flow and are very sensitive to rapid velocity changes. They are much more durable and is capable of accurately measuring airflow, gases and emissions in pipes, ducts and stacks. With a telescopic probe, it is easy to obtain readings at the operator’s desired location. With the probe’s built-in Temperature Humidity measurement capability, necessary data can be collected at the same time.
Features CENTER 332 Hot Wire Anemometer
- Air Velocity Measurement: m/s, km/hr, ft/min, MPH, Knots & Build In Temperature ºC / ºF, Humidity %RH
- Air Velocity Compensation In Atmospheric Pressure
- Air Flow Measure: CMM, CFM
- Telescoping Hot Wire Probe
- Fast Response

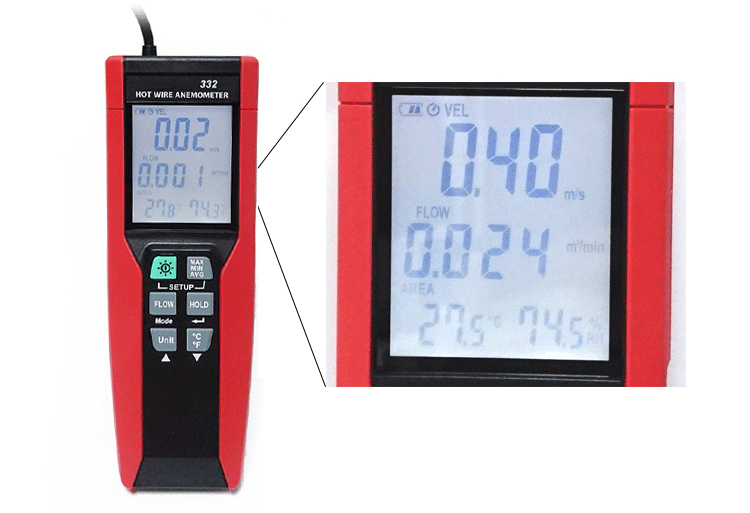

- Large LCD Display With Backlight
- Min/Max/Avg & 2/3Vmax Function
- With USB Interface Supply Power
- Adjustable Auto Power Off Timer
- Data Hold Function
- Battery Life Indicator
- Tilt Stand
Specifications CENTER 332 Hot Wire Anemometer
| Measuring Range: Air Velocity: 0~25 m/s (0~5000ft/min) Air flow: 0~999900 m3/min (ft3/min) Temperature: -20°C~60°C (-4°F~140°F) Humidity: 0~100%RH |
| Accuracy: Air Velocity / Flow: ±3% reading ±1% F.S. Temperature : ±0.8°C (±1.5°F) Humidity: ±3.5%RH |
| Resolution: 0.01m/s (1 ft/min)、0.001 m3/min (ft3/min)、0.1°C、0.1°F、0.1%RH |
| Sampling Rate: 2 time/sec |
| Telescopic Probe Length: 330 to 870 mm (4 sections) |
| Cable Length: 1890 mm |
| Max. Extension Length: 2220 mm |
| Operation Condition: 0~50°C (< 80%RH) |
| Storage Condition: -20~60°C (< 70%RH) |
| Battery: 9V alkaline battery |
| Dimensions: 185x65x36 mm (meter only) |
| Weight: Approx. 410g |
CENTER 332 – Datasheet
