Description

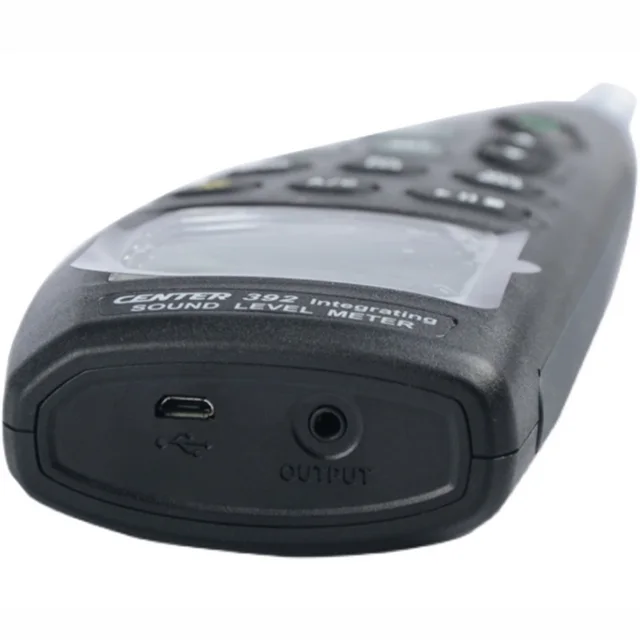

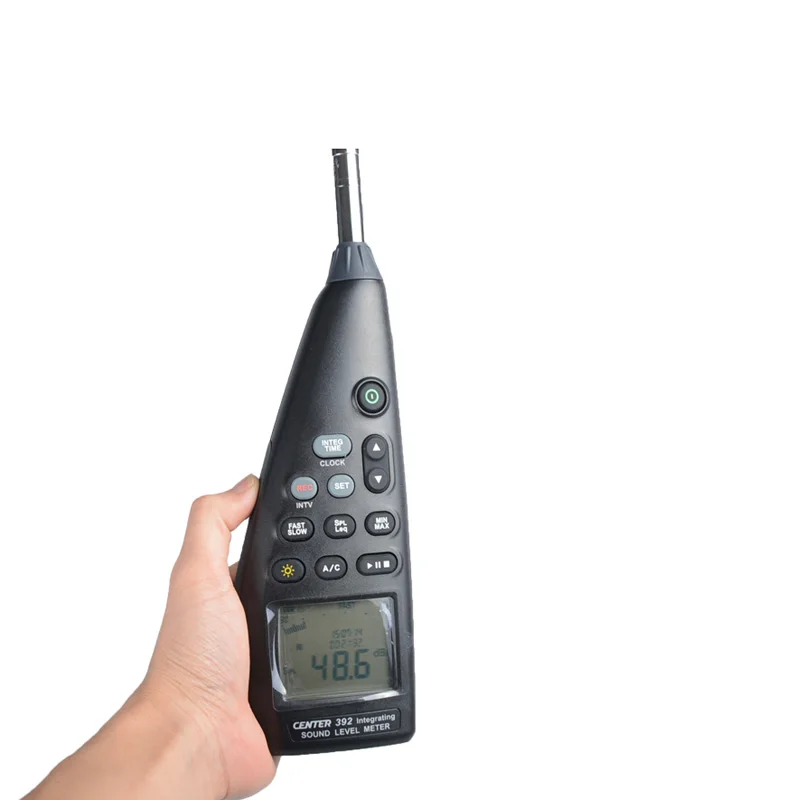

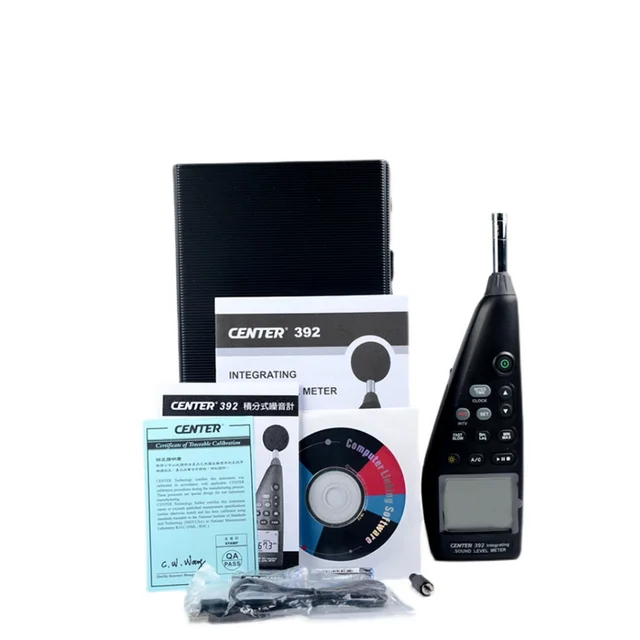

CENTER 392 Integrating Sound Level Meter
Karya Mandiri Techindo has a wide range of CENTER products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
CENTER 392 is a fully IEC 61672-1 class 2 sound level meter. This meter has only one measurement range and ranges from 30dB to 130dB which is a full 100dB. Operators do not need to worry about which range to use as in the 3 or 4 range models and also about signal latency in the auto range models. This unit is also a data logger and is equipped with manual storage capability that can store 64,000 Data Logger Records.
Features CENTER 392 Integrating Sound Level Meter
- Complies with IEC 61672-1 class 2 standard
- Measures Leq, MaxL, MinL, SPL
- 64,000 Records Data Logger
- PC interface
- With Windows Software
- AC / DC Signal Output
- Back-lit display
Specifications CENTER 392 Integrating Sound Level Meter
| Level Range: 30~130dB |
| Accuracy: ±1.4dB (ref. 94dB@1KHz) |
| Frequency Weighting: A / C |
| Time Weighting: Fast, Slow |
| Frequency Range: 20Hz to 8KHz |
| Microphone: ½ inch Electret condenser microphone |
| Measuring Time: 10s, 1m, 5m,10m,15m,30m,1h,8hrs,24hrs |
| Auxiliary Outputs: AC/DC Output |
| Battery: 1.5V AA size battery x 4 |
| Dimensions: 272x83x42 mm |
| Weight: Approx.390g |
CENTER 392 – Datasheet
