Product Description
ETCR3620 Portable MilliOhmmeter
Karya Mandiri Techindo has a wide range of ETCR products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
ETCR3620 Portable Milliohmmeter(DC Low Value Resistance Tester) apply to measure the wire resistance of cables, the contact resistance of switches, connectors and relays, the DC resistance of coils, motors and transformers windings, and the connection resistance of the connecting conductor between the metal riveting, the metal components, the ground grid and the ground pole, etc.
Features ETCR3620 Portable MilliOhmmeter
- The instrument is light, easy to operate and carry
- With swift line resistance calibration function, measurement more accuracy
Specifications ETCR3620 Portable MilliOhmmeter
Measure Gear And Accuracy
| Gear | Accuracy | Resolution | Test Current |
| 200mΩ | ±0.1%FS±15dgt | 0.1mΩ | ≤1.2A |
| 2Ω | 1mΩ | ≤510mA | |
| 20Ω | 0.01Ω | ≤210mA | |
| 200Ω | 0.1Ω | ≤210mA | |
| 2kΩ | 1Ω | ≤21mA | |
| 20kΩ | 10Ω | ≤2.1mA |
Technical Specification
| Function | Description |
| Power Supply | DC 7.4V 2000mAH rechargeable lithium battery |
| Range | 1mΩ~20.0kΩ |
| Detection Mode | Precision 4-wire method, AC/DC 2 channel simultaneous detection |
| Data Storage | 200 groups (power down or replace the battery will not lose the data) |
| Test Wire | 2 sets: Red/Black each 1 set, length 0.8m |
| Backlight Function | Yes, suitable to the dim place |
| Inspection Function | Yes |
| Display Mode | Display area: 58.5mm×46mm |
| Low Voltage Indicator | When battery voltage is lower than 6.5V±0.3V, remind to replace the battery in time |
| Host Size | 159mm×100mm×66mm |
| Weight | Meter: about 460g; Total weight: about 640g( include accessories) |
| Working Temperature | -10℃~40℃ , below 80%rh |
| Store Temperature | -10℃~60℃ , below 70%rh |
| Withstand Voltage | AC 3700V/rms(between housing and screws) |

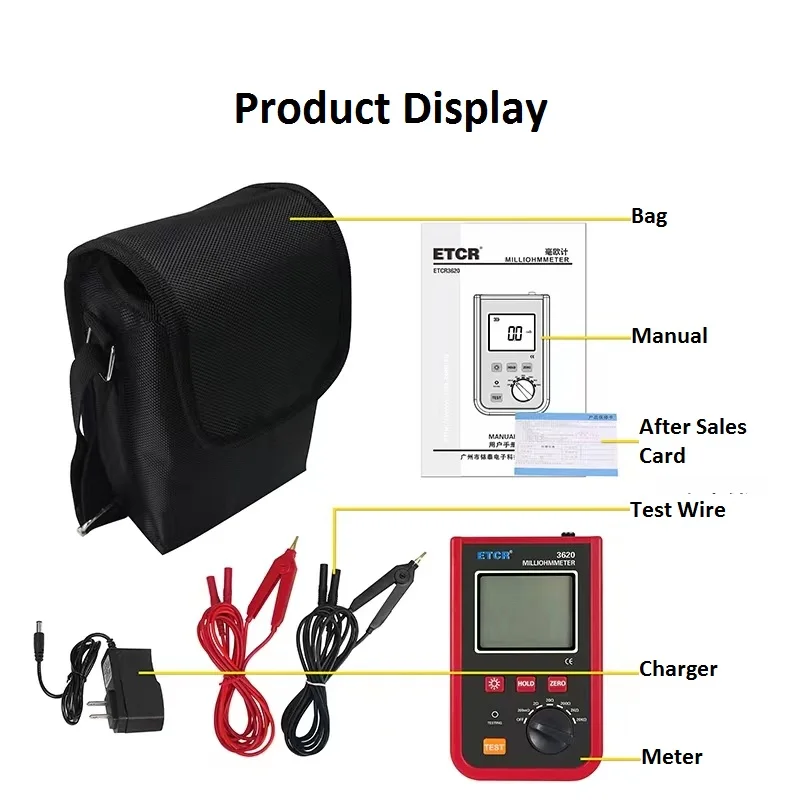

| Accessories | Meter: 1PCS; Test wires: 1 set; Cloth Bag: 1PCS; Charger :1PCS |
ETCR3620 – Datasheet
