Description

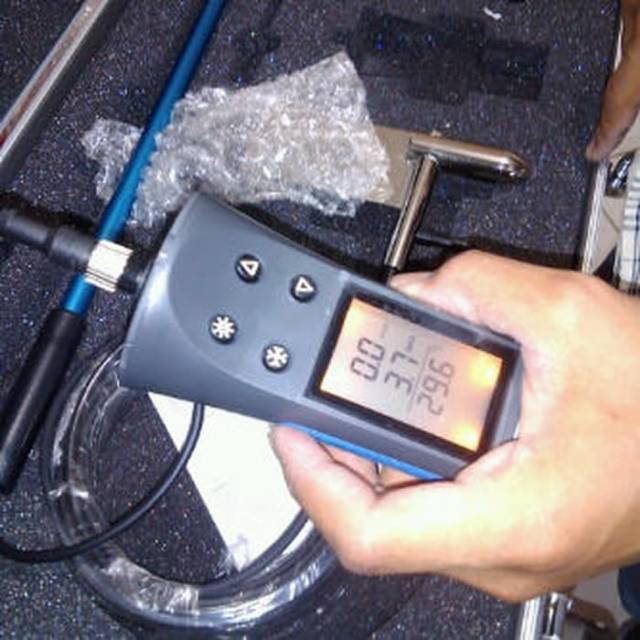

Flowatch FL-03 Current Meter
Karya Mandiri Techindo has a wide range of Flowatch products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Flowatch FL-03 Current Meter
This competitively priced instrument (flowmeter – thermometer) has been developed for use under challenging circumstances. Because of its different impellers, you can use it to measure amost any liquid or gaseous medium.
Fields of application
- Measure rivers flows
- Irrigation canals
- Ocean flows
- Air conditioning conduits
- Sewage flows
- Ventilation shafts
- Hydrological studies
- Aerological studies
- Chimney flues
Specification Flowatch FL-03 Current Meter
Flow Speed Measurements
| Regular size windspeed impeller | ||
| Diameter | Ø 20 mm, hole diameeter Ø 33 mm | |
| Minimum sensitivity | ‹ 3km/h – ‹ 1m/s | |
| Precision | +/-2% “off-axis ” error: +/-30° / +/-3% | |
| Operating temperature | -50°C à +100°C | |
| Small size windspeed impeller | ||
| Diameter | Ø 12 mm, hole diameter Ø 18 mm | |
| Minimum sensitivity | ‹ 3km/h – ‹ 1m/s | |
| Precision | +/-2% | |
| “off-axis ” error | +/-10° / +/-3% | |
| Operating temperature | -50°C to +100°C | |
| Water impeller | ||
| Diameter | Ø 60 mm | |
| Minimum sensitivity | ‹ 0.3km/h – ‹ 0.1m/s | |
| Precision | +/-2% | |
| “off-axis ” error | +/-20° / +/-3% | |
| Selectable units | knots, mph, km/h, m/s, fps et cm/s | |
| Speed resolution | 0.1 for all units (except in cm/s: 3cm/s) | |
| Functions | Current, minimum, average, maximum temperature and windchill factor | |
Temperature
| Selectable units | °C, °F, °C felt and °F felt | |
| Precision Thermometer | +/- 0.2°C | |
| Resolution of the thermometer | +/- 0.1°C | |
| Functions | Ambient temperature measurement, felt, minimum, average and maximum | |
Flowatch FL 03 – Datasheet
