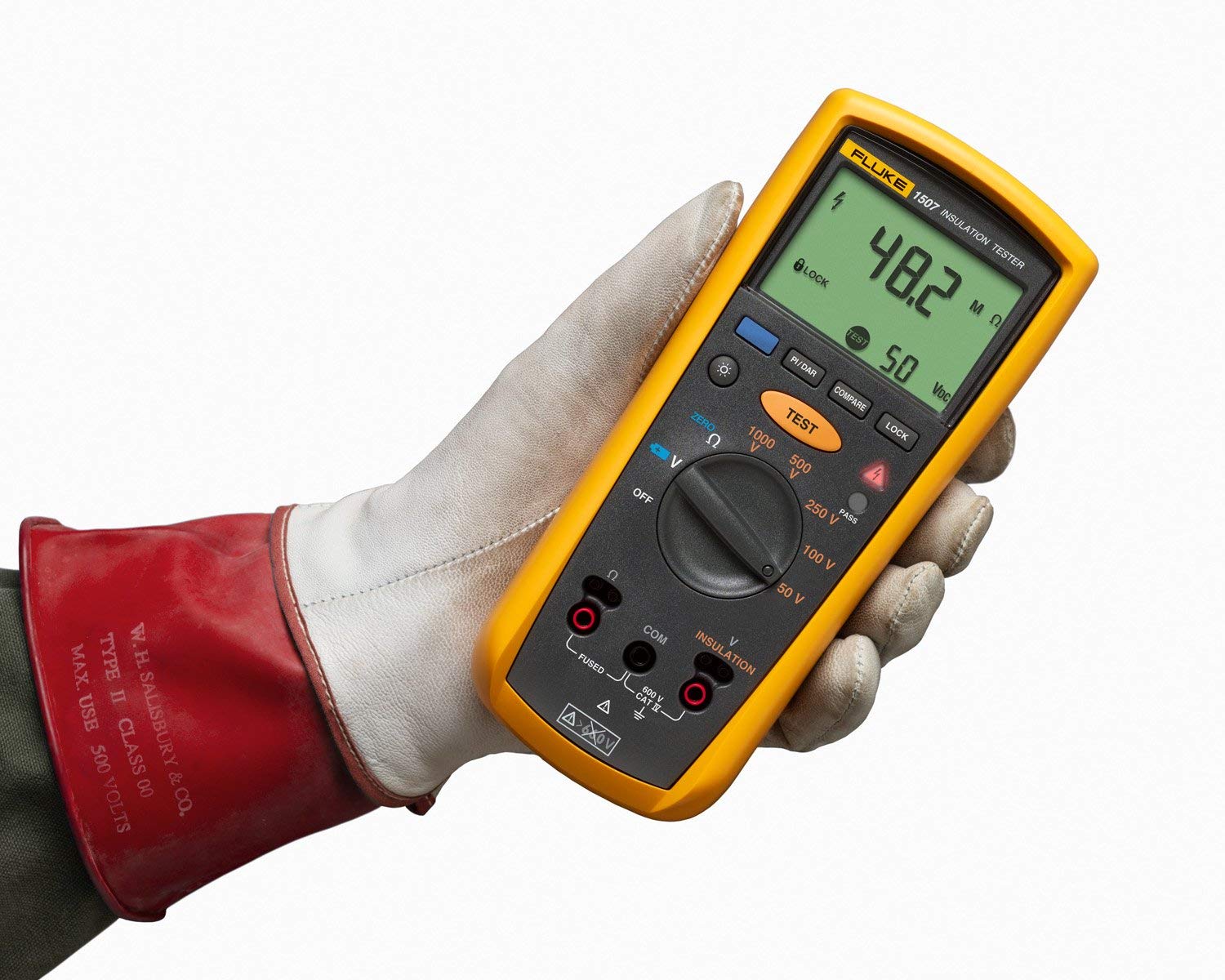

Fluke 1507 Insulation Resistance Tester

Category Brand

Fluke 1507 Insulation Resistance Tester

  • Offers multiple insulation test voltages: 50, 100, 250, 500, and 1000 V
  • Performs insulation tests from 0.01 MΩ to 2.0 GΩ
  • Includes live circuit detection to prevent insulation test if voltage >30 V is detected
  • Measures AC/DC voltage from 0.1 to 600 V and resistance from 0.01 Ω to 20.00 kΩ
  • Provides lo-ohms earth-bond continuity (200 mA)
  • Simplifies repetitive or hard-to-reach testing with the remote test probe
  • Saves battery power with auto power off

Product Description

Fluke 1507 Insulation Resistance Tester

Karya Mandiri Techindo has a wide range of Fluke products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Ideal for advanced industrial and electrical insulation testing, this insulation tester comes in a compact design and features versatility. Additionally, the multiple test voltages facilitate the tool for many troubleshooting, commissioning, and preventative maintenance applications.

Take advantage of the full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and lightweight make it easy to pack and use. Additional features, like the remote probe, save both time and money, especially when performing repetitive tests.

Features Fluke 1507 Insulation Resistance Tester

  • Rugged, compact advanced insulation resistance tester for electrical contractors and industrial and commercial electricians
  • Automatically calculates polarization index and dielectric absorption ratio
  • Makes repetitive tests simple and easy with a compare (pass/fail) function
  • Offers multiple insulation test voltages: 50, 100, 250, 500, and 1000 V
  • Performs insulation tests from 0.01 MΩ to 2.0 GΩ
  • Includes live circuit detection to prevent insulation test if voltage >30 V is detected
  • Includes auto-discharge of capacitive voltage for added user protection
  • Measures AC/DC voltage from 0.1 to 600 V and resistance from 0.01 Ω to 20.00 kΩ
  • Provides lo-ohms earth-bond continuity (200 mA)
  • Simplifies repetitive or hard-to-reach testing with the remote test probe
  • Saves battery power with auto power off
  • Presents results on a large, backlit display
  • Features CAT IV 600 V over voltage category rating
  • Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests

Applications

  • Troubleshooting
  • Commissioning
  • Preventative maintenance

Specifications Fluke 1507 Insulation Resistance Tester

AC/DC Voltage Specifications
Range600.0 V
Resolution0.1 V
Accuracy50 Hz to 400 Hz: ±(2% of rdg + 3 digits)
Input Impedance3 MΩ (nominal), < 100 pF
Common Mode Rejection Ratio (1 kΩ unbalanced)>60 dB at DC, 50 or 60 Hz
Overload Protection600 V RMS or DC
Earth Bond Resistance Specifications
Range20.00 Ω to 20.00 kΩ
Resolution0.01 Ω to 0.01 kΩ
Accuracy±(1.5% + 3 digits)
Overload Protection2 V RMS or DC
Open Circuit Test Voltage>4.0 V, <8 V
Short Circuit Current>200.0 mA
Insulation Specifications
Measurement Range0.01 MΩ to 10 GΩ
Test Voltage50, 100, 250, 500, 1000 V
Test Voltage Accuracy+20%, -0%
Short Circuit Current1 mA nominal
Auto DischargeDischarge time <0.5 second for C = 1 µF or less
Live Circuit IndicatorInhibit test if terminal voltage >30 V prior to initialization of test
Maximum Capacitive LoadOperable with up to 1 µF load
Live Circuit DetectionInhibit test if terminal voltage > 30 V prior to initialization of test
Maximum Capacitive LoadOperable with up to 1 µF load
Measure Accuracy50 V: ±(3% + 5)
100 V: ±(3% + 5)
250 V: ±(3% + 5)
500 V: ±(3% + 5)
1000 V: ±(3% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ

Includes

  • Remote probe
  • Test leads
  • Test probes
  • Alligator clips
  • User documentation






Fluke 1507 – Datasheet


Produk asli Kami distributor langsung Fluke . Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

FLUKE

Model

1507

Made In

USA

Weight

1,5 kg

Accessories Included

Remote probe
Test leads
Test probes
Alligator clips
User documentation
