Fluke 424D Laser Distance Meter
Karya Mandiri Techindo has a wide range of Fluke products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

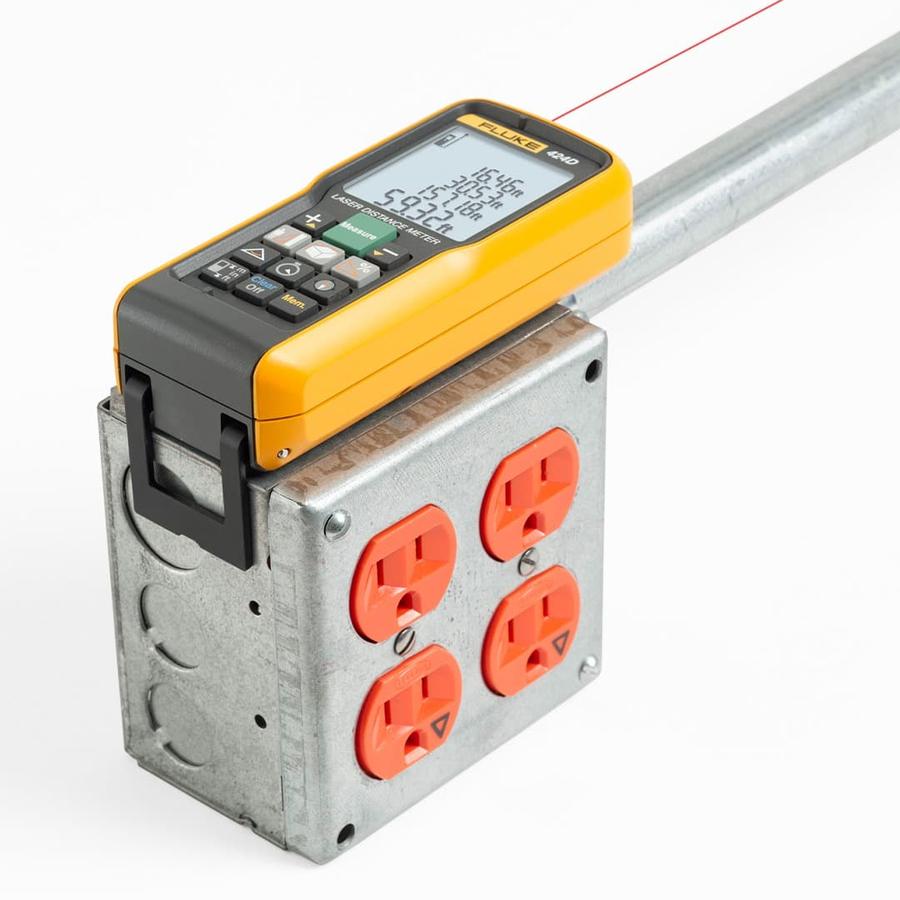

The Fluke 424D Laser Distance Meter uses 330 feet distance measurement technology. The gauges are fast, accurate, durable and easy to use – just point and shoot. The simple design and easy one-button operation mean you spend less time measuring while increasing the measurement reliability you need.
This compact and handy laser distance meter is designed for limited indoor and outdoor applications. Easy to operate, with the durability and quality you expect. And, with specific function keys, various tasks can be completed quickly and easily.
The extra bright laser is clearly visible so you can always see your target point even if the target object is in a hard-to-reach place, or far away. This unit has a large LCD display and buttons are positioned for one-handed measurement.
Features Fluke 424D Laser Distance Meter
- Measures up to 100 m (330 ft)
- Higher accuracy: ±1 mm (0.04 in)
- 4-line display shows you even more data at a glance
- Inclination sensor assists with height tracking, leveling, and indirect horizontal distance measurements when line-of-sight is blocked by an obstacle
- Corner angle feature, allows you to determine the angle of a corner
- Compass provides a “heading” for your distance measurements
- Stores 20 complete displays for quick recall
- Backlight
- Tripod mode allows you to mount the meter to a tripod when measuring long distances
- Full Pythagoras function for height measurements
- Audible keypad feedback
- Stake Out feature helps you mark out defined lengths such as when constructing wooden frames
- Automated End-piece Correction for measuring from an edge or corner – a built-in sensor detects the position of this bracket and automatically changes the reference point
- Minimum/Maximum function
- Enhanced environmental protection: IP54-rated as dust and water spray resistant
- Improved battery life of 5000 measurements with auto shut-off feature
Specifications Fluke 424D Laser Distance Meter
| Distance Measurement | |
| Typical measuring tolerance 1 | ±1.0 mm 3 |
| Maximum measuring tolerance 2 | ±2.0 mm 3 |
| Range At Leica Target Plate GZM26 | 100 m / 330 ft |
| Typical range 1 | 80 m / 260 ft |
| Range at unfavorable condition 4 | 60 m / 195 ft |
| Smallest unit displayed | 6 / 30 / 60 mm (10 / 50 / 100 m) |
| Ø Laser point at distances | 6 / 30 / 60 mm (10 / 50 / 100 m) |
| Tilt Measurement | |
| Measuring tolerance to laser beam 5 | ±0.2° |
| Measuring tolerance to housing 5 | ±0.2° |
| Range | 360° |
| General | |
| Laser cass | 2 |
| Laser type | 635 nm, < 1 mW |
| Protection class | IP54 |
| Automatic laser off | After 90 seconds |
| Automatic power off | After 180 seconds |
| Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 | Up to 5,000 measurements |
| Size (L x W x D) | 127 x 56 x 33 mm |
| Weight (with batteries) | 158 g |
| Temperature range Storage operation | -25°C to +70°C (-13°F to +158°F) |
| -10°C to +50°C (14°F to +122°F) | |
| Calibration cycle | Tilt and compass |
| Maximum altitude | 3000 m |
| Maximum relative humidity | 85% at 20°F to 120°F (-7°C to 50°C) |
| Safety | IEC Standard No. 61010-1:2001 |
| EN60825-1:2007 (Class II) | |
| EMC | EN 55022:2010 |
| EN 61000-4-3:2010 | |
| EN 61000-4-8:2010 | |
Include
- 424D Laser Distance Meter
- Two AAA batteries
- User manual on CD
- Quick reference guide
- Vinyl carrying case
- Lanyards
