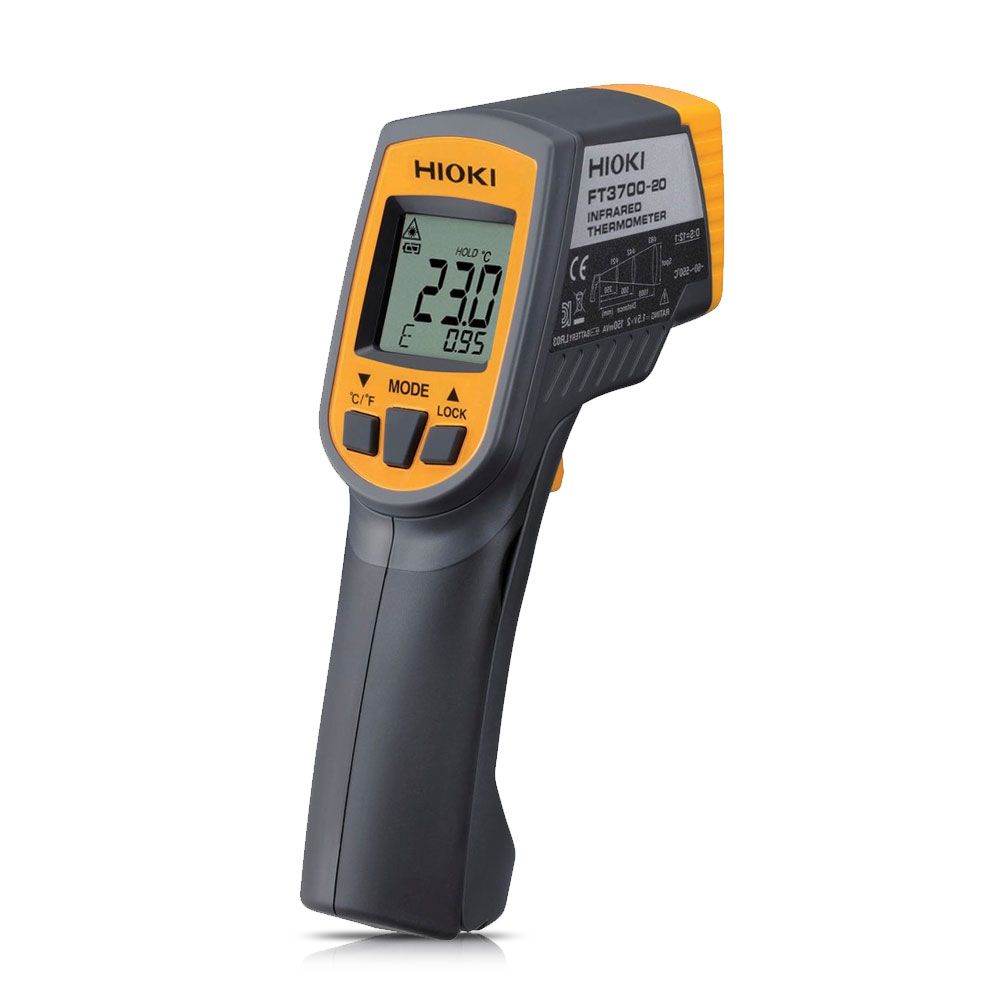

Hioki FT3700-20 Infrared Thermometer

Hioki FT3700-20 Infrared Thermometer

The FT3700 and FT3701 are non-contact thermometers using infrared rays, accurately pinpointing the spot with a two-beam laser marker. The infrared temperature guns identify the surface temperature of an object by measuring the energy level of the infrared rays emitted from the object without physically coming in contact with it.

  • Pistol design with easy-to-see display
  • A full menu of basic measuring functions
  • Easily test in difficult locations, moving objects or where there is danger of electric shock

Product Description

Hioki FT3700-20 Infrared Thermometer

Karya Mandiri Techindo has a wide range of Hioki products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

The FT3700 and FT3701 are non-contact thermometers using infrared rays, accurately pinpointing the spot with a two-beam laser marker. The infrared temperature guns identify the surface temperature of an object by measuring the energy level of the infrared rays emitted from the object without physically coming in contact with it.

Features Hioki FT3700-20 Infrared Thermometer

  • Pistol design with easy-to-see display
  • A full menu of basic measuring functions
  • Easily test in difficult locations, moving objects or where there is danger of electric shock

Specifications Hioki FT3700-20 Infrared Thermometer

FT3700-20FT3701-20
Measurement temperature range-60.0˚C to 550.0˚C (-76˚F to 1022˚F), 0.1˚C resolution-60.0˚C to 760.0˚C (-76˚F to 1400˚F), 0.1 ˚C resolution
Accuracy-35.0˚C to -0.1˚C (-31.0˚F to 31.9˚F) : ±10 %rdg. ±2˚C
0.0˚C to 100.0˚C (-32.0˚F to 212.0˚F) : ±2˚C
100.1˚C to 500.0˚C (212.1˚F to 932.0˚F) : ±2% rdg.
Note: -60.0˚C to -35.1˚C (-76.0˚F to -31.1˚F), and over 500.1˚C (932.0˚F), Accuracy not specified
Response time1 sec (90%)
Measurement wavelength8 to 14 µm
Thermal emissivity compensationε=0.10 to 1.00 (0.01 step)
Measurement field diameterε=0.10 to 1.00 (0.01 step)φ 100 mm at 3000 mm (3.94 in at 9.84 ft)
(Distance : Spot = 30 : 1)
SightingTwo-beam laser marker Max 1 mW (class 2), Red
FunctionsContinuous measurement mode, MAX/ MIN/ DIF (MAX – MIN)/ AVG measurement, Alarm, Backlight, Auto power-off
Power supplyLR03 (AAA) alkaline battery ×2, 150 mVA, Continuous use of 140 hours (With laser marker, backlight and buzzer are OFF)
Dimensions and mass48 mm (1.89 in) W × 172 mm (6.77 in) H × 119 mm (4.69 in) D, 256 g (9.0 oz), (including batteries)

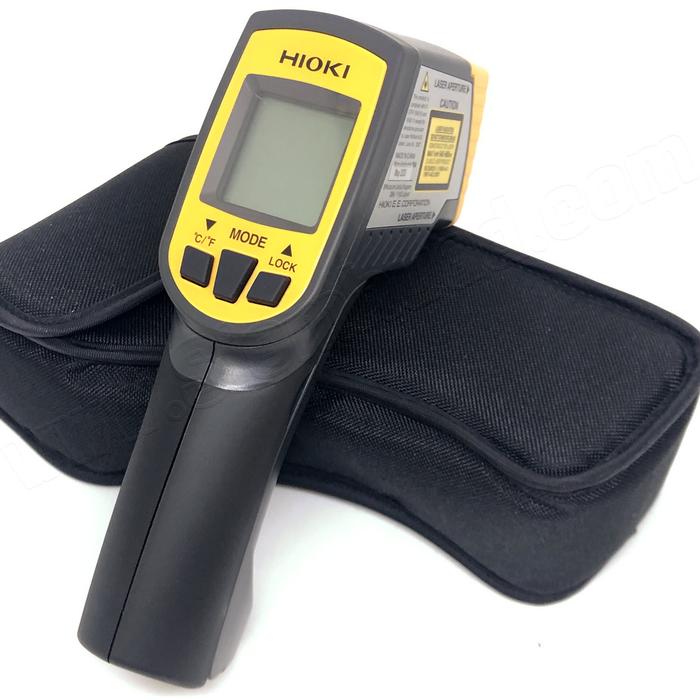

AccessoriesInstruction manual ×1, LR03 alkaline battery ×2, Carrying case ×1

Accuracy guaranteed: 1 year








Hioki FT3700-20 – Datasheet


Produk asli Kami distributor langsung HIOKI. Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Hioki

Model

FT3700-20

Made In

Japan

Weight

800 g
