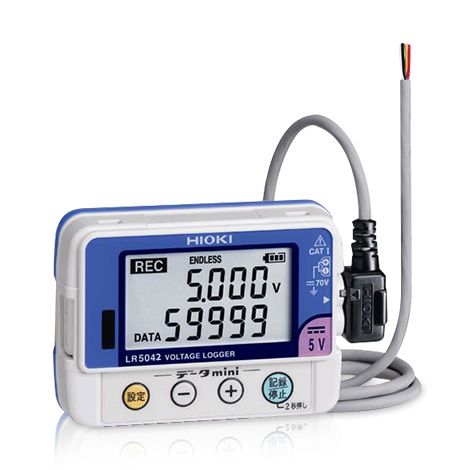

Hioki LR5042 Voltage Logger

Karya Mandiri Techindo has a wide range of Hioki products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR504X series logs DC voltage over 1 channel in as fast as 1 second intervals, available in three different ranges.

Features Hioki LR5042 Voltage Logger

Easily mount the light-weight , pocket-sized loggers in tight spaces
Easy-to-see dual display
Transfer data to PC even during recording
Replace batteries while recording (30 second limit)
3 times the memory capacity than predecessor (Record 60,000 data per channel)
Record without missing fluctuations in STAT mode
Measurement data is preserved even after the battery dies
Worry-free backup preserves recorded data even if a new measurement is started by mistake

Specifications Hioki LR5042 Voltage Logger

	LR5041	LR5042	LR5043
Measurement items	DC voltage 1ch	DC voltage 1ch	DC voltage 1ch
Measurement range	-50.00 to 50.00 mV	-5.000 to 5.000 V	-50.00 to 50.00 V
Accuracy	±0.5 %rdg. ±5 dgt.
Storage capacity	Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data
Recording interval	1 to 30 sec., 1 to 60 min., 15 selections
Recording modes	Instantaneous recording: at every recording interval Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval
Recording methods	One-time recording: Stop recording when the memory capacity is full Endless recording: Continue recording even when the memory capacity is full (old data is overwritten) Start: Logger button operation or scheduled time Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)
Other functions	Pre-heat function (requires external power supply during use of function), Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced
Waterproof and dust-proof	IP54 (EN60529) (with connection cable connected, but not including cable tip)
Interfaces	Infrared optical communications with LR5091, LR5092-20
Power supply	LR6 (AA) Alkaline battery ×1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 °C)
Dimensions and mass	79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz)
Accessories	LR6 (AA) Alkaline battery (built-in internal) ×1, Connection cable LR9802 ×1, Instruction manual ×1, Operation guide ×1, Kickstand ×1

Accuracy guaranteed: 1 year

Hioki LR5042 – Datasheet
