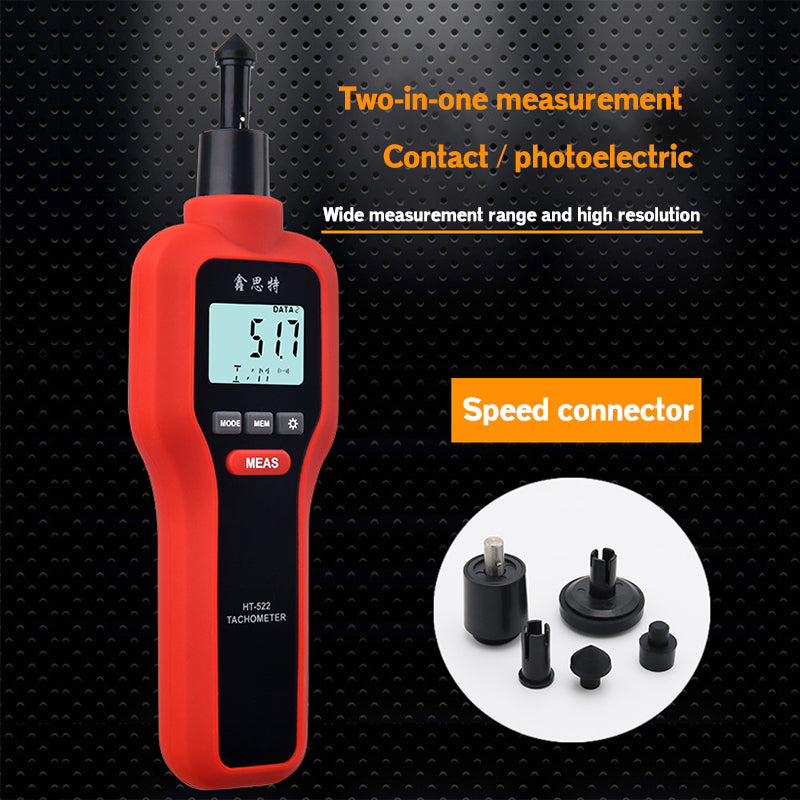

HTI HT-522 Digital Tachometer
Karya Mandiri Techindo has a wide range of HTI Instrument products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Commonly used in motor,electric fan,paper making,plastic, chemical fiber,washing machines and cars field.
Features HTI HT-522 Digital Tachometer
- Provide quick, accurate contact and non-contact measurement of the speed and rotating speed on the object surface.
- Measurement types :rotational speed (RPM, RPM), counter rotating (REV), frequency (Hz), surface Velocity (m/min, inches/minute, feet/minute, code/min) and length (meters, inches, feet, yard).
- wide Measuring rangy, high resolution.
- The visible digital liquid crystal display and Backligh display.
- laser target
- 30 data storage : 10 Measuring maximum, minimum 10 measurement, 10 Measuring instantaneous value.
Specifications HTI HT-522 Digital Tachometer
| Display | five LCD Display | ||
| Accuracy | ± (0.02%) + 2 digit | ||
| Contact measurement range | 2 ~ 20.000 RPM | ||
| Non – contact measurement range | 2 ~ 99.999 RPM | ||
| Resolution | 0.1 or 1 | ||
| Sampling time | 0.5 s (more than 120 RPM) | ||
| The measured Distance | 50mm — 600mm | ||
| Power consumption | about 45 ma | ||
| Baterry | 9V | ||
| Working temperature | 0° to 50° C (32°F – 122°F) | ||
HTI HT-522 – Catalog
