Product Description

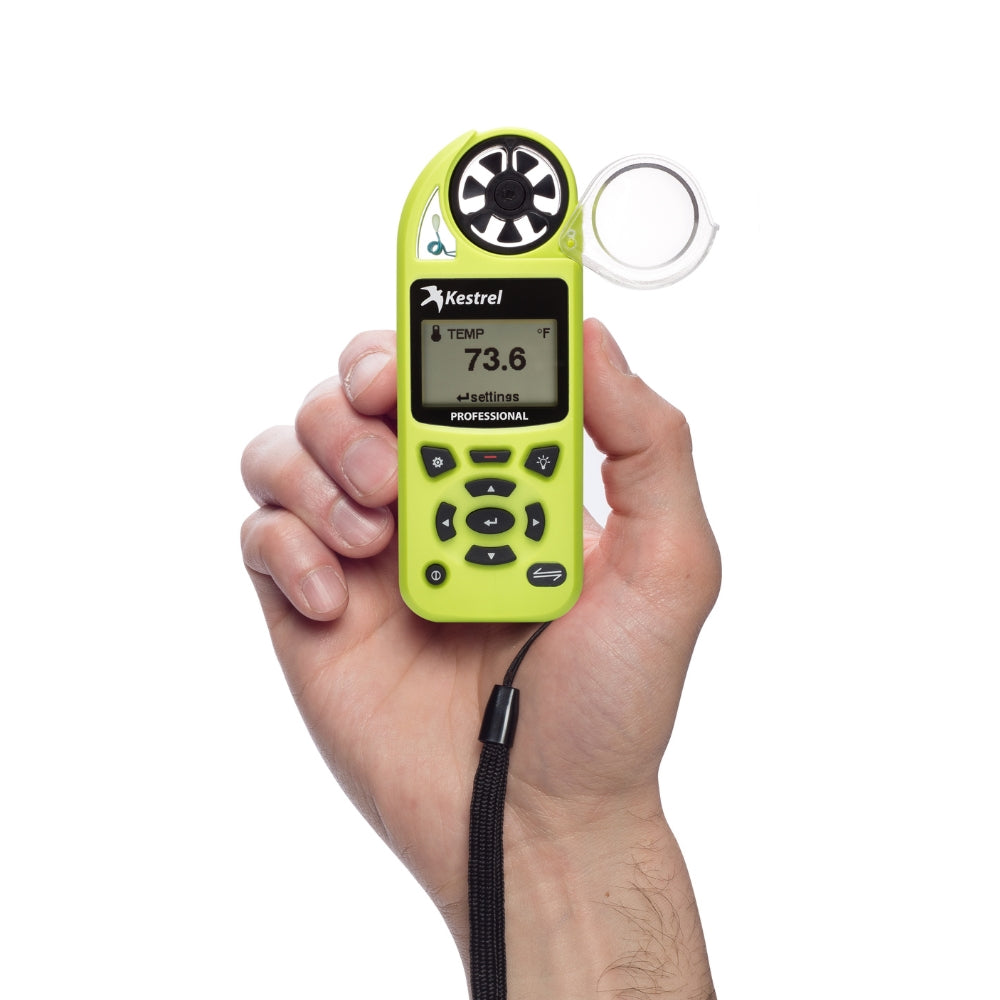

Kestrel 5200 Professional Environmental Meter
Karya Mandiri Techindo has a wide range of Kestrel products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The next generation of professional environmental monitoring is here with the Kestrel 5200.
The Kestrel 5200 environmental meter and anemometer provides the same trusted accuracy, reliability, and usability as the original Kestrel 4200 and 4300. With its complete suite of environmental measurements plus special features designed to aid HVAC technicians, construction and agriculture professionals, the Kestrel 5200 outperforms the competition as the most compact and complete environmental meter and data logger for all professional uses.
The Kestrel 5200 offers advanced calculators and readings that are unique in the portable meter market and are designed to make your job easier. In addition to measuring current environmental conditions, the 5200’s new Concrete Target Evaporation Rate Solver displays the level of cracking risk based on user-defined weather conditions and shows which environmental factors may require adjustments in order to prevent plastic shrinkage cracking. With reliable real-time environmental monitoring of jobsite conditions along with accurate predictive calculations, the Kestrel 5200 Professional Environmental Meter with LiNK® Bluetooth Low Energy Technology helps concrete contractors know when to take steps to minimize the risk by adjusting the mix or utilizing protective measures.
It’s easy to complete required jobsite documentation with the Kestrel 5200. The 5200 tracks and logs over 10,000 sets of time-stamped data. All of your data can be transferred to a iOS/Android wirelessly with the LiNK wireless communication option and Kestrel LiNK app, or to a Windows/Mac with either the accessory Kestrel LiNK Dongle or waterproof USB Data Transfer Cable (Both sold separately).
Features Kestrel 5200 Professional Environmental Meter
- Backlight blue white
- Battery Life Indicator
- Built-in Evaporation Rate Calculator & Target Evaporation Rate Solver
- Data Log Graph View
- Data Logging – Adjustable Interval
- Date & Time
- Drop-Tested to MIL-STD-810G
- FREE Kestrel LiNK Apps for Windows & Mac*
- FREE Kestrel LiNK Software for iOS and Android*
- High Contrast, Sunlight Readable Monochrome LCD Display
- Integrated Flip Open Impeller Cover
- LiNK Wireless Communication – When Option Selected (Bluetooth low energy)*
- Multilingual Menus (English, French, Spanish, German)
- Minimum/Maximum/Average Reading
- Pressure Sensor
- Relative Humidity Sensor
- Temperature Sensor (Patented External Isolated)
- Waterproof to IP67 (3’/1M for 30 minutes)
Specifications Kestrel 5200 Professional Environmental Meter
Sensor | Accuracy (+/-) | Resolution | Specification Range | Notes |
Wind Speed | Air Flow | Larger of 3% of reading, least significant digit or 20 ft/min | 0.1 m/s 1 ft/min 0.1 km/h 0.1 mph 0.1 knots 1 B* 0.1 F/S* |
0.6 to 40.0 m/s 118 to 7,874 ft/min 2.2 to 144.0 km/h 1.3 to 89.5 mph 1.2 to 77.8 knots 0 to 12 B* 2-131.2* |
1 inch|25 mm diameter impeller with precision axle and low-friction Zytel® bearings. Startup speed stated as lower limit, readings may be taken down to 0.4 m/s | 79 ft/min| 1.5 km/h | .9 mph | .8 kt after impeller startup. Off-axis accuracy -1% @ 5° off-axis; -2% @ 10°; -3% @ 15°. Calibration drift < 1% after 100 hours use at 16 MPH | 7 m/s. Replacement impeller (NK PN-0801) field installs without tools (US Patent 5,783,753). Wind speed calibration and testing should be done with triangle on impeller located at the top front face of the Kestrel. Measuring wind speeds above 60 m/s / 134.2 mph can damage the impeller. *F/S only in Ballistics units. Beaufort not available in Ballistics units. |
Ambient Temperature | 0.9 °F 0.5 °C |
0.1 °F 0.1 °C |
-20.0 to 158.0 °F -29.0 to 70.0 °C |
Airflow of 2.2 mph|1 m/s or greater provides fastest response and reduction of insolation effect. For greatest accuracy, avoid direct sunlight on the temperature sensor and prolonged sunlight exposure to the unit in low airflow conditions. Calibration drift is negligible for the life of the product. For further details, see Display & Battery Operational Temperature Limits |
Relative Humidity | ±2%RH | 0.1 %RH | 10 to 90% 25°C non-condensing | To achieve stated accuracy, unit must be permitted to equilibrate to external temperature when exposed to large, rapid temperature changes and be kept out of direct sunlight. Calibration drift is typically less than ±0.25% per year. |
Pressure | ±1.5 mbar at 25°C, 700-1100 mbar/ ±0.044inHg at 77°F 20.67-32.48 inHg/ ±0.022 PSI 10.15-15.95 PS |
0.01 inHg 0.1 hPa|mbar 0.01 PSI |
25°C/77°F, 700-1100 mbar/20.67-32.48 inHg/10.15-15.95 PSI |
Monolithic silicon piezoresistive pressure sensor with second-order temperature correction. Between 1100–1200 mbar, unit will operate with reduced accuracy. Sensor may not operate above 1200 mbar and can be damaged above 6,000 mbar or below 10 mbar. Calibration drift is negligible for the life of the product. |
Compass | ±5° | 1° 1/16th Cardinal Scale |
0 to 360° | 2-axis solid-state magnetoresistive sensor mounted perpendicular to unit plane. Accuracy of sensor dependent upon unit’s vertical position. Self-calibration routine eliminates magnetic error from batteries or unit and must be run after every full power-down (battery removal or change). Readout indicates direction to which the back of the unit is pointed when held in a vertical orientation. Declination/variation adjustable for True North readout. |
Calculated Measurements
Measurement | Accuracy (+/-) | Resolution | Sensors Deployed |
Air Density | 0.0002 lb/ft3 0.0033 kg/m3 |
0.001 lbs/ft3 0.001 kg/m3 |
Temperature Relative Humidity Pressure |
Air Flow | 6.71% | 1 cfm 1 m3/hr 1 m3/m 0.1m3/s 1 L/s |
Air Flow User Input (Duct Shape & Size) |
Altitude | typical: 23.6 ft/7.2 m – 50 to 1100 mBar max: 48.2 ft/14.7 m – 300 to 750 mBar |
1 ft 1 m |
Pressure User Input (Reference Pressure) |
Barometric Pressure | 0.07 inHg 2.4 hPa|mbar 0.03 PSI |
0.01 inHg 0.1 hPa|mbar 0.01 PSI |
Pressure User Input (Reference Altitude) |
Crosswind & Headwind / Tailwind | 7.1% | 1 mph 1 ft/min 0.1 km/h 0.1 m/s 0.1 knots |
Wind Speed Compass |
Delta T | 3.2 °F 1.8 °C |
0.1 °F 0.1 °C |
Temperature Relative Humidity Pressure |
Density Altitude | 226 ft 69 m |
1 ft 1 m |
Temperature Relative Humidity Pressure |
Dew Point | 3.4 °F 1.9 °C 15-95% RH. Refer to Range for Temperature Sensor |
0.1 °F 0.1 °C |
Temperature Relative Humidity |
Evaporation Rate | 0.01 lb/ft2/hr 0.06 kg/m2/hr |
0.01 b/ft2/hr 0.01 kg/m2/hr |
Wind Speed Temperature Relative Humidity Pressure User Input (Concrete Temperature) |
Heat Index | 7.1°F 4.0°C |
0.1 °F 0.1 °C |
Temperature Relative Humidity |
Moisture Content | Humidity Ratio (“Grains”) | .3gpp .4g/kg |
0.1 gpp 0.01 g/kg |
Temperature Relative Humidity Pressure |
Relative Air Density | 0.3% | 0.1% | Temperature Relative Humidity Pressure |
Wet Bulb Temperature – Psychrometric | 3.2 °F 1.8 °C |
0.1 °F 0.1 °C |
Temperature Relative Humidity Pressure |
Wind Chill | 1.6 °F 0.9 °C |
0.1 °F 0.1 °C |
Wind Speed Temperature |
Additional Product Info
Display & Backlight | Multifunction, multi-digit monochrome dot-matrix display. Choice of white or red LED backlight. |
Response Time & Display Update | Display updates every 1 second. After exposure to large environmental changes, all sensors require an equilibration period to reach stated accuracy. Measurements employing RH may require longer periods particularly after prolonged exposure to very high or very low humidity. |
Data Storage & Graphical Display, Min/Max/Avg History | Logged history stored and displayed for every measured value. Manual and auto data storage. Min/Max/Avg history may be reset independently. Auto-store interval settable from 2 seconds to 12 hours, overwrite on or off. Logs even when display off except for 2 and 5 second intervals. Kestrel 5 series units hold over 10,000 data points. |
Data Upload & Bluetooth® Data Connect Option | Wireless range up to 100ft. Connection requires optional USB data transfer cable or Kestrel Link Dongle or Kestrel LiNK app. Employs Kestrel Link protocol for data transmission with Link supported devices. (Kestrel LiNK for iOS/Android, Kestrel Link for PC/MAC). |
Clock / Calendar | Real-time hours:minutes:seconds clock, calendar, automatic leap-year adjustment. |
Auto Shutdown | User-selectable – Off, 15-60 minutes with no key presses. |
Languages | English, French, German, Spanish. |
Certifications | CE certified, RoHS and WEEE compliant. Individually tested to NIST-traceable standards. |
Origin | Designed and manufactured in the USA from US and imported components. Complies with Regional Value Content and Tariff Code Transformation requirements for NAFTA Preference Criterion B. |
Battery Life | AA Lithium, included. Up to 400 hours of use, reduced by backlight or Bluetooth radio transmission use. |
Shock Resistance | MIL-STD-810g, Transit Shock, Method 516.5 Procedure IV; unit only; impact may damage replaceable impeller. |
Sealing | Waterproof (IP67 and NEMA-6) |
Display & Battery Operational Temperature Limits | 14° F to 131° F | -10 °C to 55 °C Measurements may be taken beyond the limits of the operational temperature range of the display and batteries by maintaining the unit within the operational range and then exposing it to the more extreme environment for the minimum time necessary to take reading |
Storage Temperature | -22.0 °F to 140.0 °F | -30.0 °C to 60.0 °C. |
Size & Weight | 5.0 x 1.9 x 1.1 in / 12.7 x 4.5 x 2.8 cm, 4.3 oz / 121 g. (Lithium battery included) |
Includes:
- Battery – 1 x AA
- Certificate Of Conformity (Spec Sheet)
- Instructions
- Lanyard
- Protective Drawstring Pouch
Kestrel 5200 – Manual
