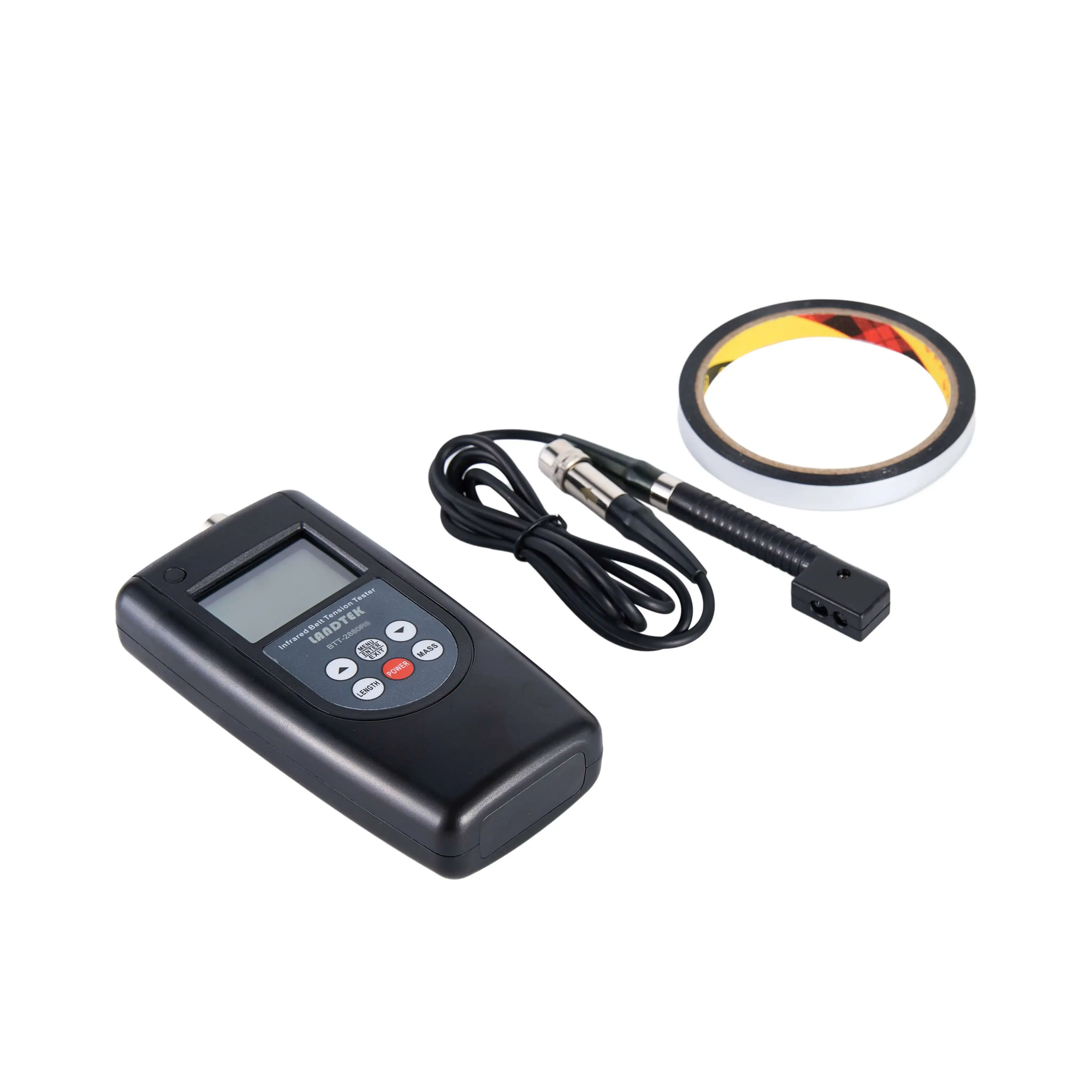

Landtek BTT-2880R8 Infrared Belt Tension Tester

Karya Mandiri Techindo has a wide range of Landtek products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

The Infrared Belt Tension Meter can measure the belt tension of motor and other machines quickly.

Features Landtek BTT-2880R8 Infrared Belt Tension Tester

Using laser sensor, direct measurement, more convenient than mechanical sensor
The size of the split sensor is small, which is suitable for measuring in a narrow space
Two kinds of sensors selectable, the integrated sensor and the split sensor
Metric or imperial units can be used to display readings
With automatic power off function

Measuring Principle

This tensiometer can measure the natural vibration frequency of the belt through the emission and reception of the laser, and then calculate the tension value of the belt by combining the input belt mass and the free belt length.

Specifications Landtek BTT-2880R8 Infrared Belt Tension Tester

Measurement Range	10Hz~800Hz
Input Range	Free Belt Length Max 99.99m
	Belt Mass Max 9.999kg/m
Digital Sampling Error	<1%
Display Error	±1Hz
Total Error	<5%
Operating Temperature Range	+10°C~50°C
Transportation Temperature Range	-5°C~70°C
Unit of Measurement	Metric: m, kg/m, N
	Imperial: Inch, lbs/foot, lbf
Optical Path Measurement Distance	3mm~20mm
Depth of Split Sensor	About 66mm
Power Supply	4×1.5V AAA (UM-4) Battery
Size	Main Unit: 178mmx72mmx34mm
	Sensor: 124mmx2mm1x12mm
Weight	180g (Not Including Battery)
Standard Accessories	Main Unit
	Split Sensor
	Carrying Case (B04)
	Operation Manual

Landtek BTT-2880R8 – Datasheet
