Product Description

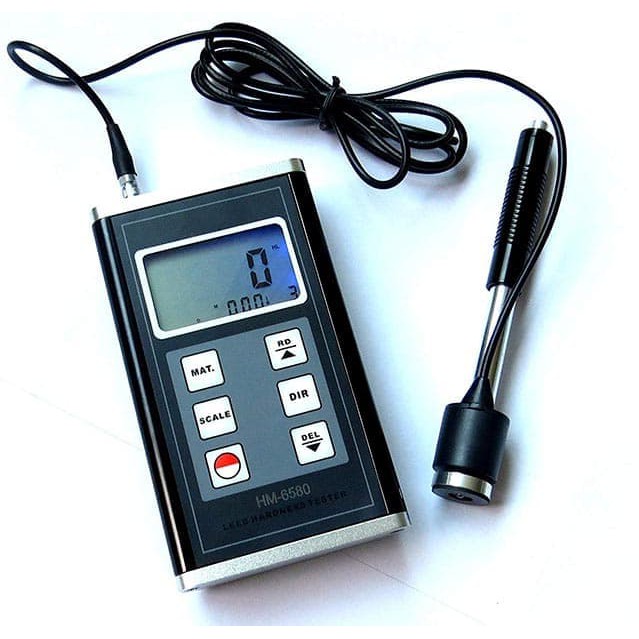

Landtek HM-6580 Leeb Hardness Tester
Karya Mandiri Techindo has a wide range of Landtek products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Landtek HM-6580 Leeb Hardness Tester
- Palm size for narrow space
- Test at any angle, even upside down
- Direct display of hardness scales HRB, HRC, HV, HB, HS,HL
- Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc
- User recalibration function allowed
- Manual or automatic shut down
- Low battery indication
- Use USB/RS-232 data output to connect with PC
- Provide Bluetooth data output choice
Material Selection
| Material | Converting Ranges | ||||||
| HL | HRC | HRB | HB | HS | HV | ||
| 30D² | 10D² | ||||||
| Steel & Cast St. | 300~900 | 20.0~68.0 | 38.4~99.5 | 80~647 | 32.5~99.5 | 80~940 | |
| C.W.Tool Steel | 300~840 | 20.4~67.1 | 80~898 | ||||
| ST.Steel | 300~800 | 19.6~62.4 | 46.5~101.7 | 85~655 | 80~802 | ||
| Gray Cast Iron | 360~650 | 93~334 | |||||
| Nodular Cast Iron | 400~660 | 131~387 | |||||
| Cast Aluminum | 174~560 | 20~159 | |||||
| Brass | 200~550 | 13.5~95.3 | 40~173 | ||||
| Bronze | 300~700 | 60~290 | |||||
| Copper | 200~690 | 45~315 | |||||
Specifications Landtek HM-6580 Leeb Hardness Tester
|
Display
|
LCD
|
|
|
Materials
|
9 different common materials(Steel&Cast Steel,C.W.Tool Steel,Stainless Steel,Gray Cast Iron,Nodular Cast Iron,Cast Aluminum,Brass,Bronze,Copper)
|
|
|
Measuring Range
|
170(HLD)~960(HLD)
|
|
|
Accuracy
|
Display Error±0.8%
|
|
|
Repeatability
|
±0.6%
|
|
|
Conversion
|
HL-HRC-HRB-HB-HV-HSD
|
|
|
Memory
|
50Data Can Be Stored And Re-readable
|
|
|
Impact device
|
Probe D,Weight:75g
|
|
|
Storage Temperature
|
-30ºC~60ºC
|
|
|
Operating Conditions
|
Temperature
|
-10ºC~50ºC
|
|
Humidity
|
<90%RH
|
|
|
Power Supply
|
2X1.5V AA(UM-3)Battery
|
|
|
Dimensions
|
130mmx76mmx32mm
|
|
|
Weight
|
340g(Not Including Batteries)
|
|
Landtek HM-6580 – Datasheet
