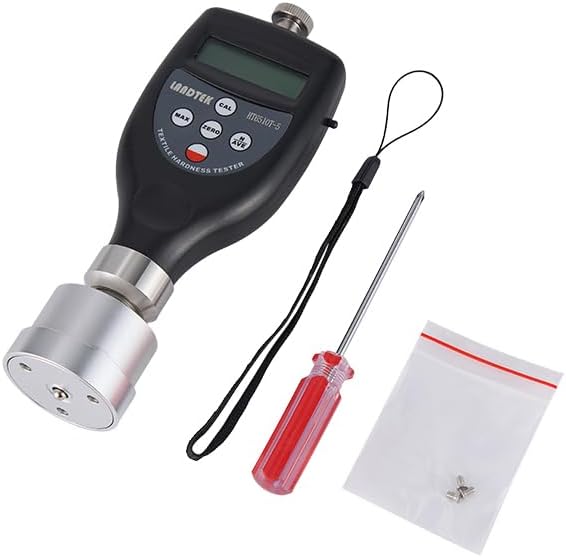

Landtek HT-6510T-5 Textile Hardness Tester
Karya Mandiri Techindo has a wide range of Landtek products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
To measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc |
Features Landtek HT-6510T-5 Textile Hardness Tester
- Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm
- With average calculate function
- Peak value deposit function
- Under-voltage alarm function
- Use USB data output to connect with PC
- Provide Bluetooth data output choice
Principle
The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as for the Shore A hardness test.
Specifications Landtek HT-6510T-5 Textile Hardness Tester
Model | HT-6510T-2.5 | HT-6510T-5 | HT-6510T-10 |
Parameters | Tested Result/Mean Value/Max.Value | ||
Indenter | Ball 2.5mmΦ | Ball 5mmΦ | Ball 10mmΦ |
Convertible Probe | The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than 400mm | ||
Area Of Application | For closely wound bobbins of synthetic, finished fibers and filaments | For loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads | For very loosely wound bobbins of thick yarns, such as carpet yarns |
Display Range | 0-100H (hardness graduation marks) | ||
Testing Range | 10-90H (hardness graduation marks) | ||
Resolution | 0.1H | ||
Accuracy | ≤±1H | ||
Battery Indicator | Low Battery Indicator | ||
Auto Switch Off | √ | ||
Depth Of Indentation* | 0-2.5mm | 0-2.5mm | 0-2.5mm |
Test Pressure** | Approx. 12.5N | Approx. 12.5N | Approx. 12.5N |
Measuring Spring Force* | 0.55-8.065N | 0.55-8.065N | 0.55-8.065N |
Scale Diameter | 51mm | 51mm | 51mm |
Working Face Radius | 55mm (when using the curved end of the probe) | ||
Working Face Flat | 45mmΦ (when using the plane end of the probe) | ||
Operating | Temperature:0~40ºC Humidity:<80%RH | ||
Power Supply | 2×1.5V AAA(UM-4)Battery | ||
Dimensions | 177x65x45mm | ||
Weight | Approx. 285g (Not including batteries) | ||
Standard Accessories | Main Unit | ||
Carrying Case | |||
Operation Manual | |||
Optional Accessories | USB Data Cable with Software | ||
Bluetooth Data Adapter with Software | |||
Landtek HT-6510T-5 – Datasheet
