Product Description

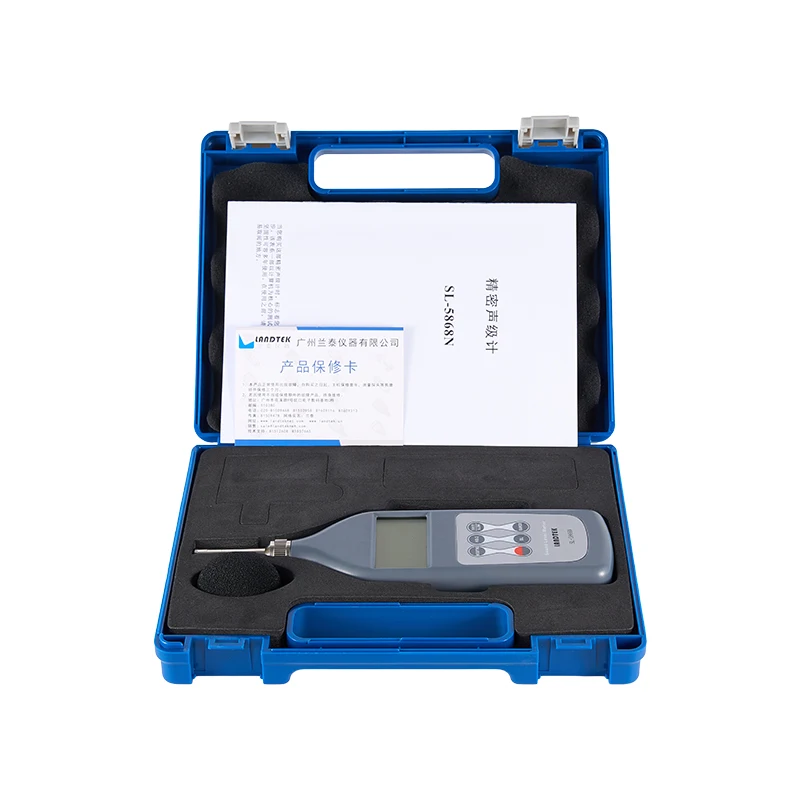

Landtek SL-5868N Accurate Sound Level Meter
Karya Mandiri Techindo has a wide range of Landtek products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Landtek SL-5868N Accurate Sound Level Meter
- Its performance is in accordance with GB/T 3785-2010 standard level 2 And IEC 61672:2013 Class 2 sound level meter requirements. It also meets the JJG 188-2017 standard
- The two time weighting F, S can be selected
- The digital detection technology is used to replacesome traditional sound level meters, the stability
- Large screen display is adopted, with clear and intuitive display. With dynamic scale display
Specifications Landtek SL-5868N Accurate Sound Level Meter
|
Microphone
|
Φ12.7mm (1/2′) test condenser microphone | |
|
Frequency weighting
|
A, C, and Lin(Linear)
|
|
|
Range
|
25dB~130dB (A)
|
|
|
Range control
|
Manual, three gears, linear range > 60dB
|
|
|
Testing Range
|
30dB~90dB (dynamic scale display 10~100)
|
|
|
50dB~110dB (dynamic scale display 30~120)
|
||
|
70dB~130dB (dynamic scale display 50~140)
|
||
|
Accuracy
|
In accordance with IEC61672 standard, class 2
|
|
|
Time Weighting
|
Fast (F), Slow (S)
|
|
|
Display
|
Large screen dynamic LCD, instantaneous sound level, with analogammeter display.
|
|
|
Calibration
|
Use class 1 sound level calibrator
|
|
|
Power Supply
|
4×1.5V AAA Size (UM-4) Battery
|
|
|
External Power
|
6V
|
|
|
Weight
|
185g (Not Including Batteries)
|
|
|
Dimensions
|
227mmx63mmx26 mm
|
|
|
Operating Condition
|
Temperature: -10°C~50°C
|
|
|
Standard Accessories
|
Main Unit
|
|
|
Windscreen
|
||
|
Carrying Case (B04)
|
||
|
Manual
|
||
|
Optional Accessories
|
External power supply (6V)
|
|
Landtek SL-5868N – Datasheet
