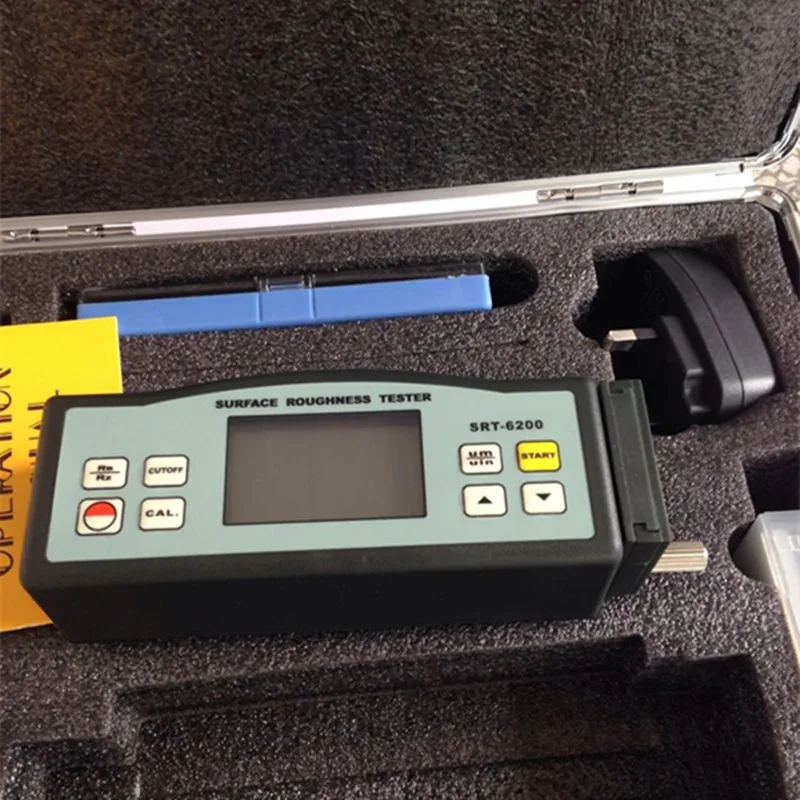

Landtek SRT-6200 Surface Roughness Tester
Karya Mandiri Techindo has a wide range of Landtek products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Landtek SRT-6200 Surface Roughness Tester
- Be compatible with four standards of ISO, DIN, ANSI and JIS
- Multiple parameter measurement: Ra, Rz
- Highly sophisticated inductance sensor
- Built-in lithium ion rechargeable battery and control circuit with high capacity
- Small in size, light in weight and easy to use
- Manual or automatic shut down
- Metric /Imperial Conversion
- Use USB/RS-232 data output to connect with PC
- Provide Bluetooth data output choice
Principle
When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
Specifications Landtek SRT-6200 Surface Roughness Tester
|
Standards
|
GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1
|
|
|
Parameters
|
Ra,Rz
|
|
|
Measuring Range
|
Ra:0.05~10.00µm/1.000~400.0µinch
Rz:0.020~100.0µm /0.780~4000µinch |
|
|
Accuracy
|
<<±10%
|
|
|
Fluctuation of Display Value
|
<<6%
|
|
|
Resolution
|
0.001/0.01/0.1
|
|
|
Sensor
|
Radius of Probe Pin
|
10µm
|
|
Material of Probe Pin
|
Diamond
|
|
|
Measurement Force of Probe
|
16mN(1.6gf)
|
|
|
Probe Angle
|
90º
|
|
|
Vertical Radius of Guiding Head
|
48 mm
|
|
|
Maximum Driving Stroke
|
17.5mm/0.7inch
|
|
|
Cutoff length(l)
|
0.25mm,0.8mm,2.5mm
|
|
|
Driving Speed
|
Sampling
|
When Length=0.25mm,Vt=0.135 mm/s
|
|
When Length=0.8mm,Vt=0.5mm/s
|
||
|
When Length=2.5mm,Vt=1mm/s
|
||
|
Returning
|
Vt=1mm/s
|
|
|
Profile Digital Filter
|
RC,PC-RC,GAUSS,D-P
|
|
|
Evaluation Length
|
1L~5L Optional
|
|
|
Data Memorize
|
——-
|
|
|
Operating Conditions
|
Temp:0ºC~50ºC Humidity:<80%RH
|
|
|
Power Supply
|
Built -in Rechargeable Li-ion Battery
|
|
|
Dimensions
|
140mmx52mmx48 mm
|
|
|
Weight
|
420g
|
|
|
Standard Accessories
|
Main Unit
|
|
|
Standard Sample Plate SSP-100
|
||
|
Standard Sensor SSP-100
|
||
|
Small Screwdriver
|
||
|
Carrying Case ( B09 )
|
||
|
Operation Manual
|
||
|
Optinal Accessories
|
RS-232C Cable with Software
|
|
|
Bluetooth Adapter with Software
|
||
|
Extension Rod SER-150
|
||
|
Groove Stylus SRP-110
|
||
|
Curvature Probe SRP-120
|
||
|
Measurement Stand SRS-1
|
||
Landtek SRT-6200 – Datasheet
