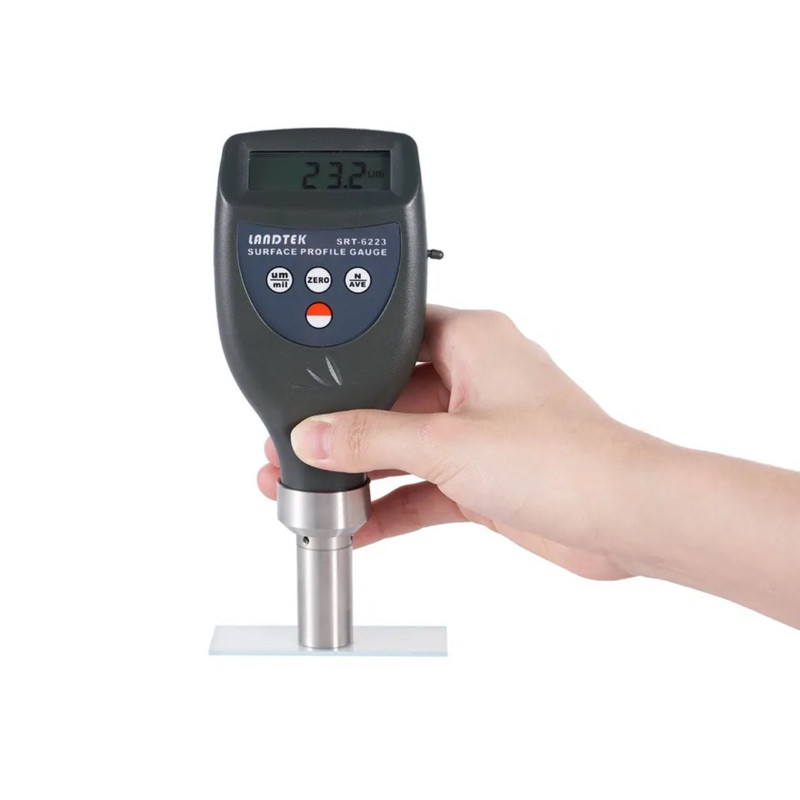

Landtek SRT-6223 Surface Profile Gauge

Karya Mandiri Techindo has a wide range of Landtek products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

For fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surface. Widely used in field of blast cleaned surface measurement.

Features Landtek SRT-6223 Surface Profile Gauge

It meets the standards of ASTMD- 4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI- 63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.
The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.
Small in size, light in weight and easy to use.
Manual or automatic power off.
Metric/Imperial Conversion.
With average calculation function.
Use USB/RS-232 data output to connect with PC.
Provide Bluetooth data output choice.

Specifications Landtek SRT-6223 Surface Profile Gauge

Display	LCD
Range	0µm~800 µm/29.5 mils
Accuracy	±5%or±5 µm,(whichever is the greater)
Resolution	0.1 µm/1 µm
Resolution	0.1mils
Principle	Inductance Type
Operating	Temperature:0ºC~50ºC
Conditions	Humidity:<80%RH
Power Supply	4×1.5V AAA(UM-4)Battery
Dimensions	162mmx65mmx28 mm
Weight	280g
Standard Accessories	Main Unit
	Standard Sample Plate
	Carrying Case ( B04 )
	Operation Manual

Landtek SRT-6223 – Datasheet
