Product Description

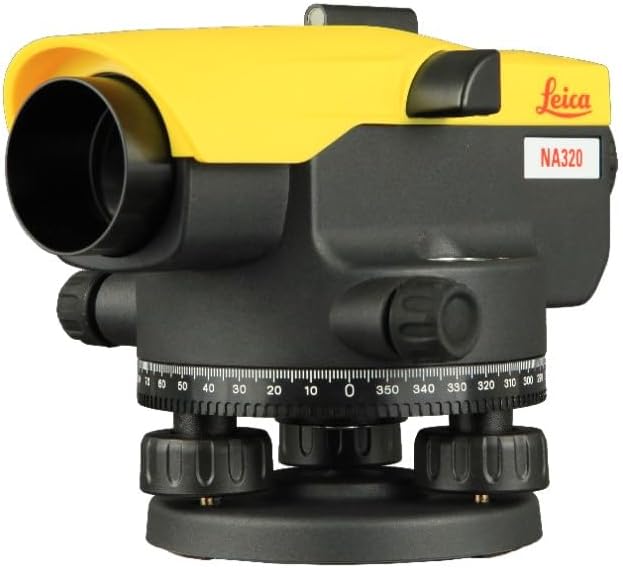

Leica NA320 Automatic Level
Karya Mandiri Techindo has a wide range of Leica products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The Leica NA300 Series of automatic (optical) levels has been developed for professionals who are looking for the highest quality results day by day. With the many obstructions and uneven surfaces on construction and building sites, the levels NA300 levels rise to the occasion and ensure the straightest and safest construction possible.
The NA300 Series is your reliable partner for accurate measurements and high quality results:
- Distinctive design and proven technology, inside and out
- Leica Geosystems understands construction and provide levels for all needs
- Protected shape for increased ergonomic handling while ensuring the highest quality results
- Simple handling for quick and accurate measurements
Unique
- Whether you’re facing basic demands or you need more support, the unique design of the Leica NA300 Series of automatic (optical) levels can meet you wherever you are in the building and construction field. With a better protected shape, these rugged levels offer increased ergonomic handling while ensuring you receive the highest quality results at the best price value.
Accurate
- Leica NA300 Series levels have been engineered for daily levelling tasks. Whatever the need, these levels measure with the highest precision and accuracy. These automatic (optical) levels provide the highest in both while being ergonomic in their handling and rugged for daily use in the harshest conditions.
Simple
- A perfectly designed mirror makes it extremely easy to adjust the horizontal level with the highest possible accuracy and confidence. The Leica NA300 Series levels – along with all our automatic (optical) levels – are made for everyday use for any site.
Protected
- Service Centres worldwide ensure you work with complete peace of mind, wherever a construction site is located on the globe. Leica Geosystems offers unbeaten service with all of its NA Series levels. The IP54 standard ensures the highest quality measurements even in the most challenging environments.
Features Leica NA320 Automatic Level
- Quick and easy measurements
- Unique design and highest quality of results for levelling needs
- Manufactured for the most rugged sites and the harshest conditions
- Expert knowledge of Leica Geosystems with more than 270 service centres worldwide
- Unbeaten service offering
Specifications Leica NA320 Automatic Level
Leica NA300 Series |
 |
 |
 |
| Technical Data | Leica NA320 | Leica NA324 | Leica NA332 |
|---|---|---|---|
| Standard deviation for 1 km double levelling (ISO17123-2) | 2.5 mm | 2.0 mm | 1.8 mm |
| Telescope | Leica NA320 | Leica NA324 | Leica NA332 |
| Telescope image | Upright | ||
| Magnification | 20 x | 24 x | 32 x |
| Objective aperture | 36 mm | ||
| Shortest target distance from instr. axis | <1.0 m | ||
| Field of view at 100 m | <2.1 m | ||
| Multiplication factor | 100 | ||
| Additive constant | 0 | ||
| Compensator | Leica NA320 | Leica NA324 | Leica NA332 |
| Working range | -± 15’ | ||
| Setting accuracy (standard deviation) | <0.5’’ | ||
| Sensitivity | 8’/2 mm | ||
| Horizontal Circle | Leica NA320 | Leica NA324 | Leica NA332 |
| Graduation | 360° | ||
| Graduation interval | 1° | ||
| Weight (net) | 1.5 kg | ||
| Operating temperature range | –20° C to +40° C | ||
| Protection | IP54 | ||
Including |
Unit |
| Leica NA320
Carry Case User Manual Sertifikat Kalibrasi Garansi 1tahun Rambu Ukur + Nivo Rambu Alumunium Tripod |
1
1 1 1 1 1 1 |
Leica NA320 – Catalog
