Product Description

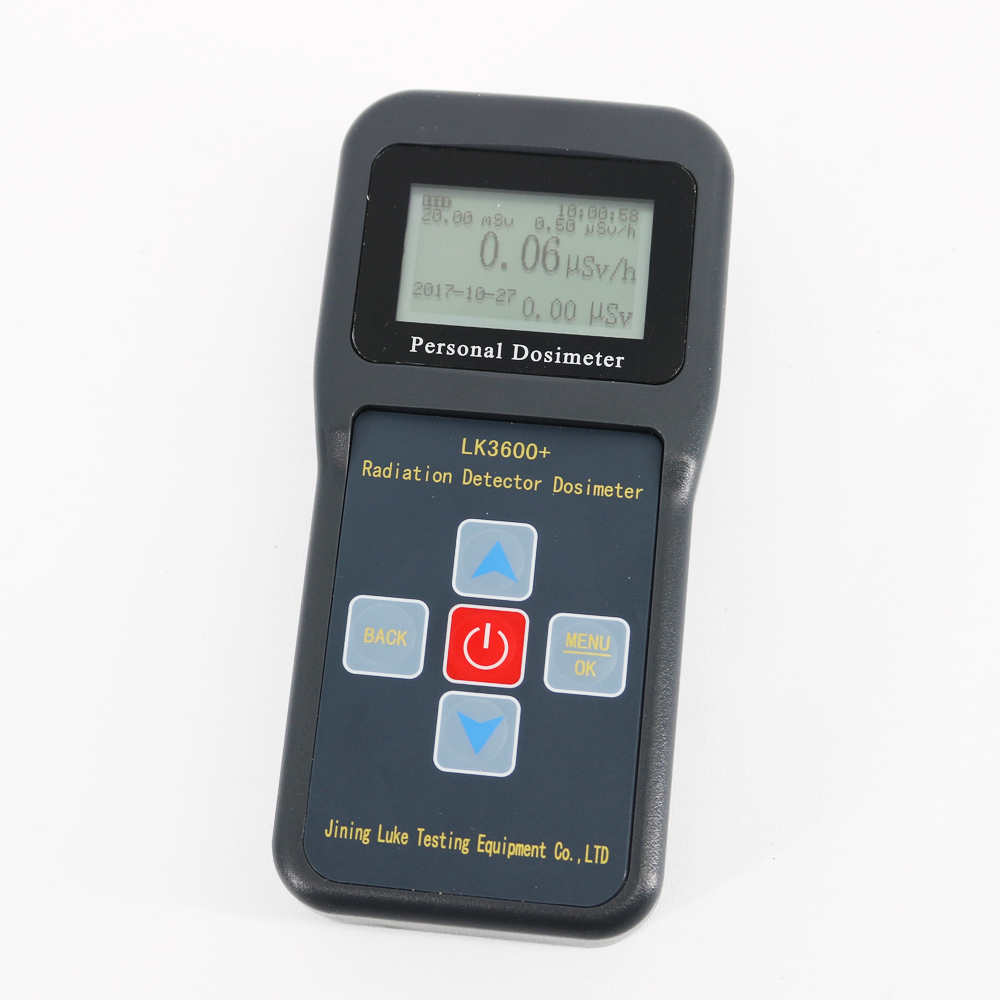

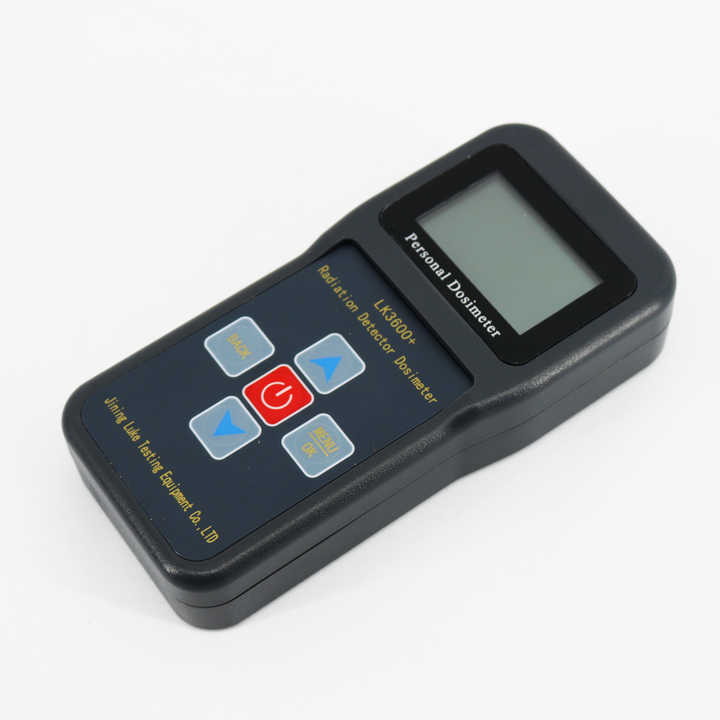

LK3600+ Portable Nuclear Radiation Detector Dosimeter

Features LK3600+ Portable Nuclear Radiation Detector Dosimeter

• Monitor X, gamma and hard beta rays.
• With high sensitivity, the instrument can also measure the environment background.
• Interface using both of Chinese and English.
• Contemporary measurement and display for both of dose rate and accumulated dose.
• The permanently saved data will not lose after the power failure.
• Graphic LCD with adequately big screen.
• Low power consumption; indication function of battery under voltage.
• Presettable alarm threshold of dose rate and accumulated dose.
• Optional alarm modes including sound / light / vibration.

Technological Parameters

• Radiation Detection: X ,gamma and hard beta rays
• Detector: energy compensation GM tube (Geiger counter tube)
• Measurement range
• Dose equivalent rate: 0.01-1000μSv/h (maximum 10mSv/h)
• Accumulated dose equivalent: 0.01μSv-500.0mSv
• Energy range: 50 keV-1.5 MeV ≤±30% (for 137Cs 1)
• Relative inherent error: ≤±15% (137CS 1mSv/h)
• Sensitivity: 80 CPM /μSv/h (for Co-60)
• Alarm threshold:
• Dose rate: arbitrary selection among 0.5, 1.0, 1.5, 2.0, 2.5, 5.0, 10.0,
• 50.0, 100.0 μSv/h
• b. Accumulated dose: arbitrary selection among 0.05, 0.5, 1.0, 2.0, 5.0,
• 10.0, 20.0, 50.0, 100.0 mSv
