Product Description

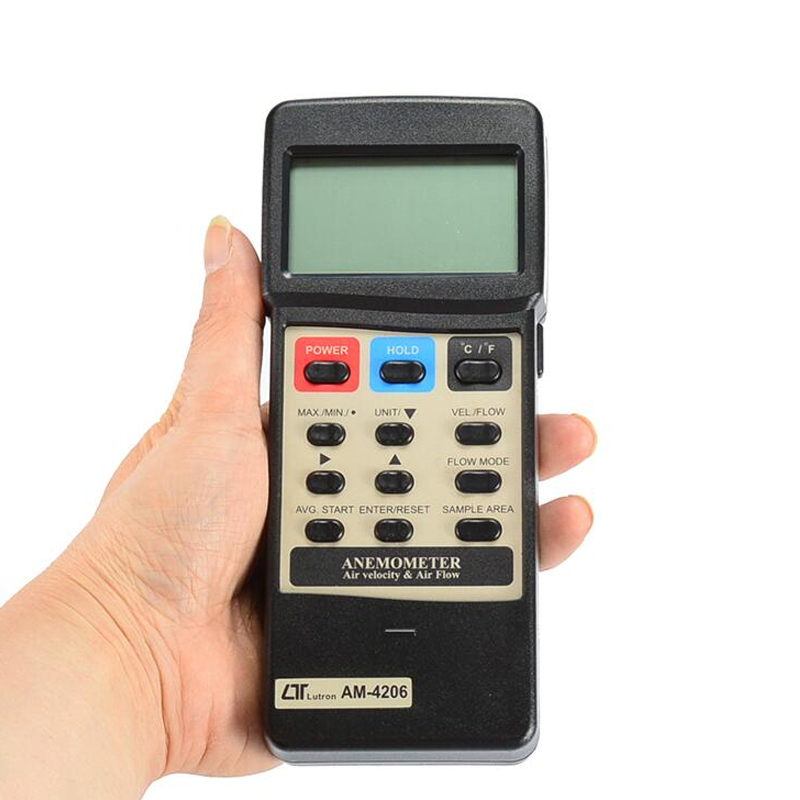

Lutron AM-4206 Anemometer

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Anemometer, Air Flow with Anemometer probe. And ø72mm plastic vane. Low-friction ball vane wheels make sure high accuracy in high & low velocities. 5 measurement units available (Air velocity) m/s, Ft/min, Km/h, Knot, Mile/h and 2 unit of (Air flow) CFM, CMM. Separate probe, easy for operation of different measurement environment.

Features Lutron AM-4206 Anemometer

Air flow : CMM ( m^3/min. ) and CFM ( ft^3/min. )
Air velocity : m/s, ft/min, km/h, knots
Air temperature : C degree, F degree
3 air flow mode : Instant, 2/3 Vmax, Average
Low-friction ball vane wheels is accurate in both high & low velocities
Large LCD with dual display
Record maximum and minimum reading with recall
Data hold
Microcomputer circuit provides special function & offer high accuracy
Auto shut off saves battery life
Thermistor sensor for temp. measurement, fast response time
Build-in low battery indicator
Operates from 006P DC 9V battery
RS 232 PC serial interface
Separate probe, easy for operation of the different measurement environment
Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case
Wide applications: use this anemometer to check air conditioning & heating systems measure air velocities, wind speeds, temperature…etc.

Specifications Lutron AM-4206 Anemometer

Circuit: Exclusive one-chip of microcomputer LSI circuit
Display:
* 13 mm (0.5″) Super large LCD display
* Dual function meter’s display
Measurement:
* Air velocity :
– m/s (meters per second)
– km/h (kilometers per hour)
– ft/min (feet/per minute)
– knots (nautical miles per hour)
– mile/h (miles per hour)
* Air flow :
– CMM ( m^3/min. )
– CFM ( ft^3/min. )* Air temperature : ℃,℉
* Data hold

Memory Recall: Record maximum & minimum reading value with recall
Sensor Structure:
* Air velocity & Air flow : Conventional twisted van arm and low friction ball bearing design
* Temperature : Thermistor
Power off: Auto shut off saves battery life or manual off by push button
Sampling Time: Approx. 0.8 sec
Operating Humidity: Less than 80% RH
Operating Temperature: 0 to 50℃ ( 32 to 122℉ )
Data Output: RS 232 PC serial interface
Power Supply: Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent
Power Current: Approx. DC 8.3 mA
Weight: 381 g/0.84 LB
Dimension:
* Main instrument: 180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch )
* Sensor head : Round, 72 mm Dia

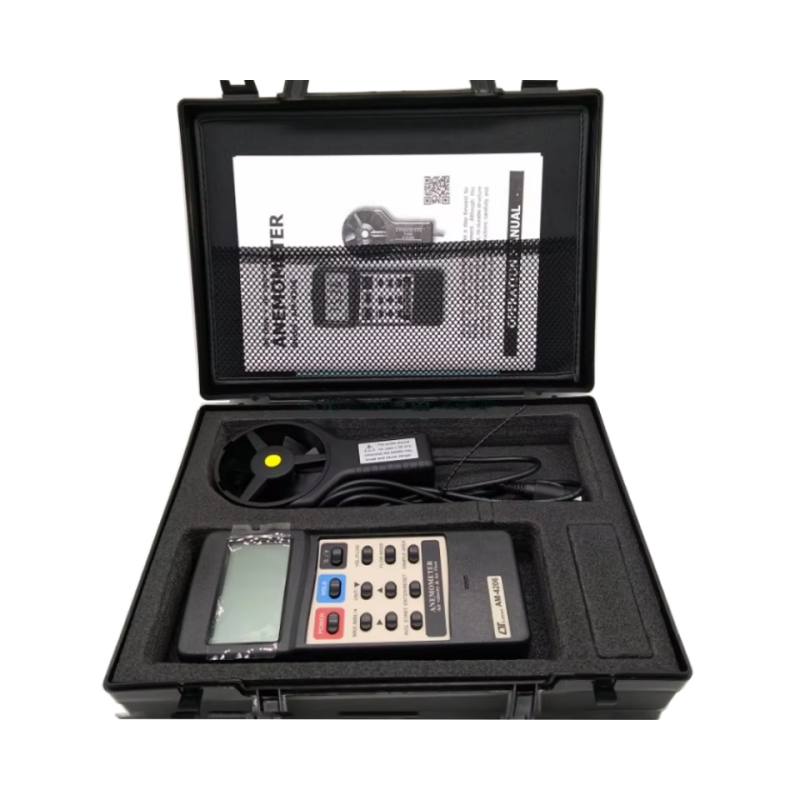

Accessories Included:

Instruction manual……………1 PC
Sensor probe…………………..1 PC
Carrying case…………………..1 PC

Optional Accessories:

Software ( Windows version, data record & data acquisition )………………….SW-U801-WIN
USB cable…………….. USB-01
RS232 cable…………..UPCB-01

Lutron AM-4206 – Datasheet
