Product Description

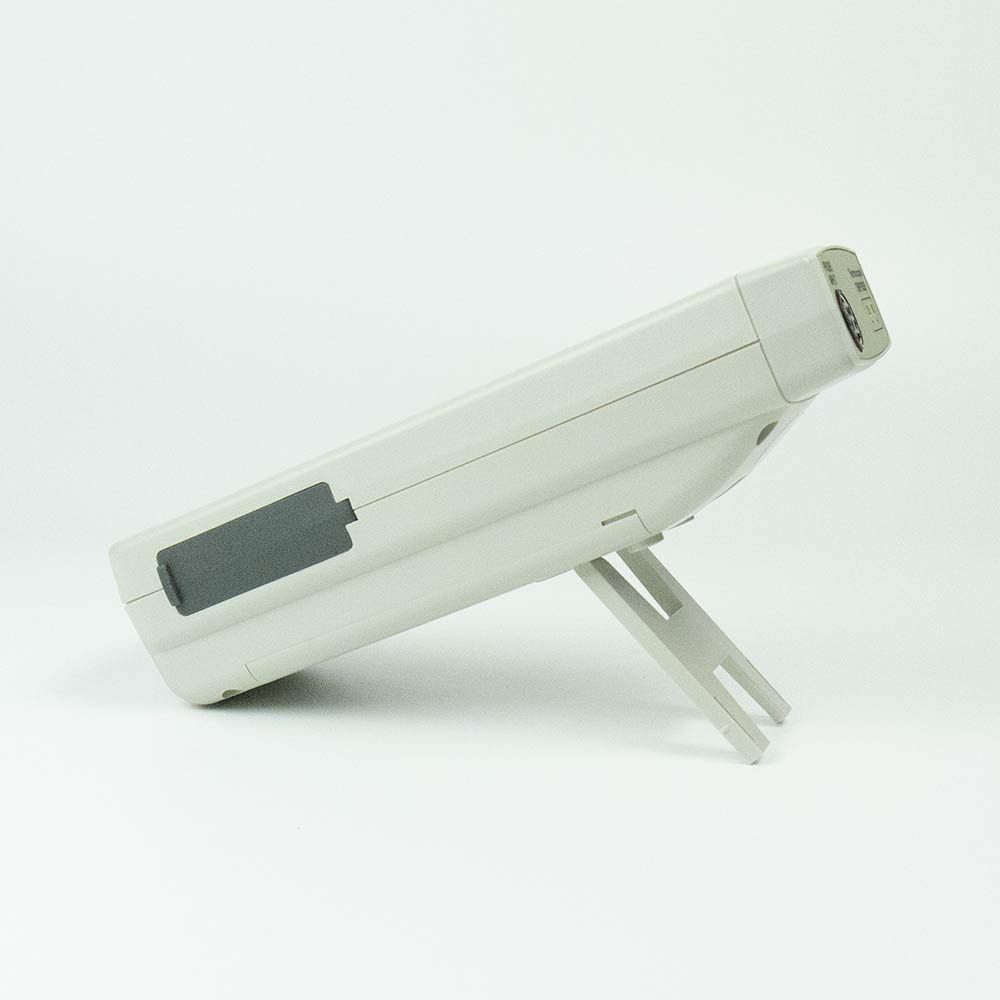

Lutron AM-4207SD Anemometer
Vane Anemometer 3 in 1. Included Anemometer probe with ø72mm. Low-friction ball vane wheels make sure high accuracy in high & low velocities. Anemometer unit: (Air velocity) m/s, Ft/min, Km/h, Knot, Mile/h
Features Lutron AM-4207SD Anemometer
- Air velocity : m/S, Ft/min, Km/h, Knots, Mile/h,
- Air temperature ( ℃, ℉)
- Low-friction ball vane wheels make sure high accuracy in high & low velocities.
- Type K, Type J thermocouple thermometer.
- Air Temp. used thermistor sensor, fast response time.

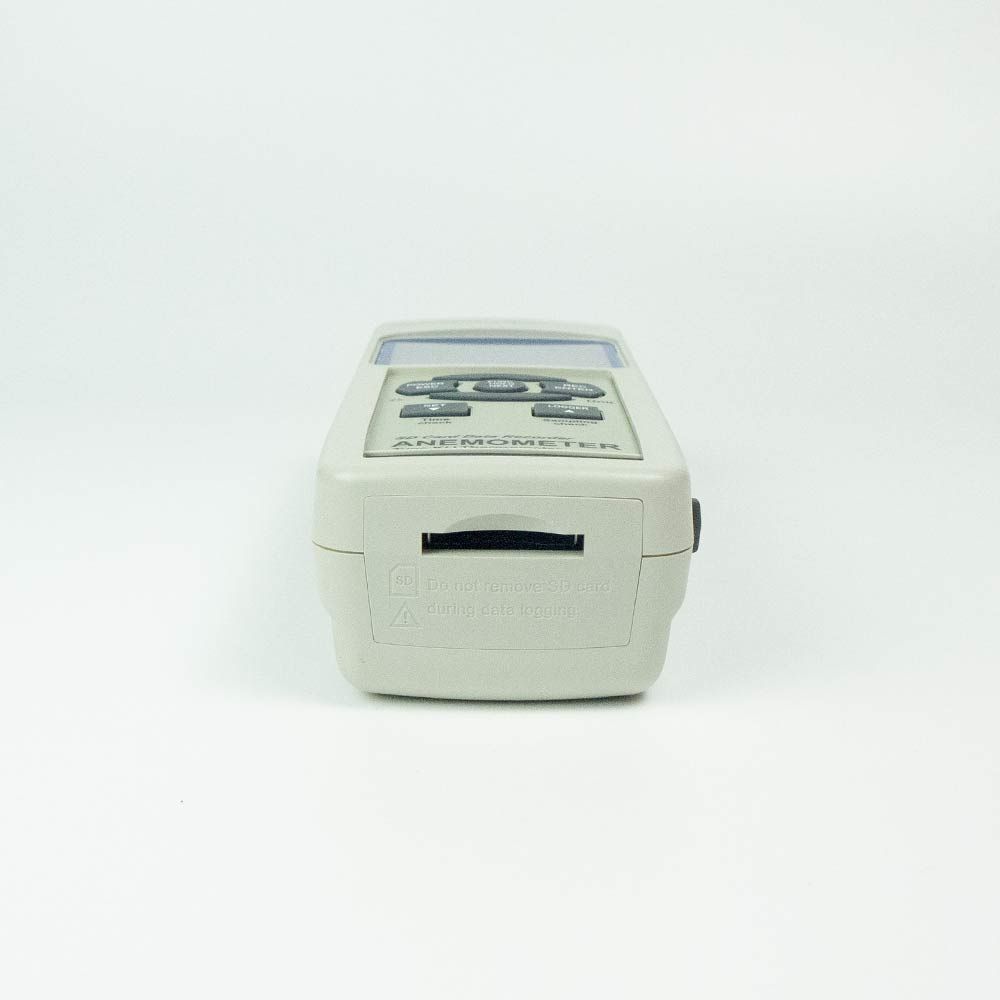

- Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.
- Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
- SD card capacity : 1 GB to 16 GB.
- LCD with green light backlight, easy reading.
- Can default auto power off or manual power off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER interface.
- Separate probe, easy for operation of different measurement environment.
Specifications Lutron AM-4207SD Anemometer
- Circuit: Custom one-chip of microprocessor LSI circuit.
- Display:
* LCD size : 52 mm x 38 mm
* LCD with green backlight ( ON/OFF ). - Measurement Unit:
* Air velocity:
º m/S (meters per second)
º Km/h ( kilometers per hour )
º Ft/min ( FPM, feet per minute )
º Knots ( nautical miles per hour )
º Mile/h ( mph, miles per hour )
* Air temperature: ℃, ℉
* Type K/ Type J thermometer: ℃, ℉ - Datalogger Sampling Time Setting range:
* Auto: 1 second to 3600 seconds
* Manual: Push the data logger button once will save data one time. - Memory Card: SD memory card. 1 GB to 16 GB.
- Advanced setting:
* Set clock time ( Year/Month/Date,Hour/Minute/ Second )
* Decimal point of SD card setting
* Auto power OFF management
* Set beep Sound ON/OFF
* Set thermometer type to Type K or Type J
* Set temperature unit to ℃ or ℉
* Set sampling time
* SD memory card Format - Data Hold: Freeze the display reading.
- Temperature Compensation: Automatic temp. compensation for the Anemometer function and the type K/J thermometer.
- Memory Recall: Maximum & Minimum value.
- Sampling Time of Display: Approx. 1 second.
- Data Output: RS 232/USB PC computer interface.
- Operating Temperature: 0 to 50 ℃.
- Operating Humidity: Less than 85% R.H.
- Power Supply:
* Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
* ADC 9V adapter input. ( AC/DC power adapter is optional ). - Power Current:
* Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 15 mA
* When SD card save the data and LCD Backlight is OFF) : Approx. DC 36 mA. - Weight: 515 g/ 1.13 LB.
- Dimension:
* Main instrument : 203 x 76 x 38 mm
* Anemometer sensor head : Round, 72 mm Dia.
Accessories Included:
- Instruction manual………………………1 PC
- Anemometer probe………………. 1 PC
- Hard carrying case ( CA-06 )………….1 PC
Optional Accessories:
- SD Card ( 1 G )
- SD Card ( 2 G )
- Type K thermocouple probe.
- AC to DC 9V adapter.
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data Acquisition software,SW-U801-WIN.
