Lutron AM-4215SD Hot Wire Anemometer

Category Brand
Lutron AM-4215SD Hot Wire Anemometer
  • One meter can accept two probes : Hot wire anemometer probe
  • Combination of hot wire and standard thermistor, deliver rapid and precise measurements even at low air velocity value.
  • Slim hot wire probe, ideal for grilles & diffusers.
  • Air velocity : m/s, Ft/min, Km/h, Knot, Mile/h,
  • Air flow ( CFM, CMM ) measurement.
  • Air temperature ( ℃,℉ )
  • Air Temp. used thermistor sensor, fast response time.
  • Fast humidity measuring response time.
  • Type K, Type J thermocouple thermometer.
  • Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.

Product Description

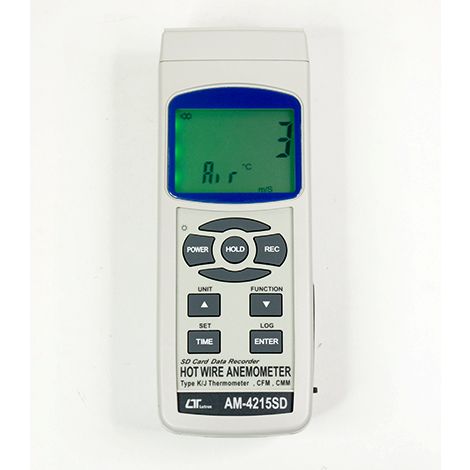

Lutron AM-4215SD Hot Wire Anemometer

Hot wire Anemometer, Complete set with two probes: Hot wire anemometer probe and Humidity/ Temp. probe. Also can be measured Air flow (CMM/ CFM), Humidity, Dew point, type K/J Temp.(optional). 5-Measurement units selectable, m/s, km/h, ft/min, knots, mile/h.

Features Lutron AM-4215SD Hot Wire Anemometer

  • One meter can accept two probes : Hot wire anemometer probe
  • Combination of hot wire and standard thermistor, deliver rapid and precise measurements even at low air velocity value.
  • Slim hot wire probe, ideal for grilles & diffusers.
  • Air velocity : m/s, Ft/min, Km/h, Knot, Mile/h,
  • Air flow ( CFM, CMM ) measurement.
  • Air temperature ( ℃,℉ )
  • Air Temp. used thermistor sensor, fast response time.
  • Fast humidity measuring response time.
  • Type K, Type J thermocouple thermometer.
  • Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.
  • Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No.( position 1 to position 99 ).
  • Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
  • SD card capacity : 1 GB to 16 GB.
  • LCD with green light backlight, easy reading.
  • Can default auto power off or manual power off.
  • Data hold, record max. and min. reading.
  • Microcomputer circuit, high accuracy.
  • Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
  • RS232/USB PC COMPUTER interface.
  • Separate probe, easy for operation.
  • Applications : Environmental testing, HVAC, Air conveyors, Flow hoods, Clean rooms, Air velocity, Air balancing, Fans/motors/blowers, Furnace velocity, Refrigerated case, Paint spray booths . measurements

Specifications Lutron AM-4215SD Hot Wire Anemometer

  • Circuit: Custom one-chip of microprocessor LSI circuit.
  • Display:
    * LCD size : 52 mm x 38 mm
    * LCD with green backlight ( ON/OFF ).
  • Measurement Unit:
    * Air velocity:
    º m/s (meters per second)
    º Km/h ( kilometers per hour )
    º Ft/min ( FPM, feet per minute )
    º Knots ( nautical miles per hour )
    º Mile/h ( mph, miles per hour )
    * Air flow : CFM, CMM
  • Type K/ Type J thermometer : ℃,℉
  • Air temperature: ℃, ℉
  • Sensor Structure:
    * Air velocity & Air flow : Tiny glass bead thermistor.
    * Air temperature : Thermistor.
    * Type K, Type J thermometer : Type K/J thermocouple probe.
  • Datalogger Sampling Time Setting range:
    * Auto: 1 second to 3600 seconds
    * Manual: Push the data logger button once will save data one time.
  • Memory Card: SD memory card. 1 GB to 16 GB.
  • Advanced setting:
    * Set clock time ( Year/Month/Date,Hour/Minute/ Second )
    * Set sampling time
    * Auto power OFF management
    * Set beep Sound ON/OFF
    * Decimal point of SD card setting
    * SD memory card Format
    * Set thermometer type to Type K or Type J
    * Set temperature unit to ℃ or ℉
    * Set air flow type ( CFM/USA, CMM/EURO )
    * Set air flow area dimension
  • Temperature Compensation:
    * Automatic temp. compensation for the
    * Anemometer function and the type K/J thermometer.
  • Data Hold: Freeze the display reading.
  • Memory Recall: Maximum & Minimum value.
  • Sampling Time of Display: Approx. 1 second.
  • Data Output: RS 232/USB PC computer interface.
  • Operating Temperature: 0 to 50 ℃.
  • Operating Humidity: Less than 85% R.H.
  • Power Supply:
    * Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
    * ADC 9V adapter input. ( AC/DC power adapter is optional ).
  • Power Current:
    * Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 30 mA.
    * When SD card save the data and LCD Backlight is OFF) : Approx. DC 50 mA.
  • Weight: 347 g/ 0.76 LB. * Meter only
  • Dimension:
    * Main instrument : 182 x 73 x 47.5 mm ( 7.1 x 2.9 x 1.9 inch )
    * Hot wire telescope probe : Round, 12 mm Dia x 280 mm ( min. length ). Round, 12 mm Dia x 940 mm ( max. length ).
Accessories Included:
  • Instruction manual……….1 PC
  • Hot wire telescope probe.1 PC
  • Hard carrying case ……… 1 PC
Optional Accessories:
  • SD Card ( 2 G )
  • Type K thermocouple probes, refer to page 31.
  • AC to DC 9V adapter.
  • USB cable, USB-01.
  • RS232 cable, UPCB-02.
  • Data Acquisition software, SW-U801-WIN.
  • Excel Data Acquisition software, SW-E802





Lutron AM-4215SD – Datasheet

Produk asli Kami distributor langsung LUTRON. Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Lutron

Model

AM-4215SD

Made In

Taiwan

Weight

1,5 kg

Accessories Included

Instruction manual
Hot wire telescope probe
Hard carrying case
