Lutron AM-4221 Cup Anemometer with Temperature

Product Description

Lutron AM-4221 Cup Anemometer with Temperature

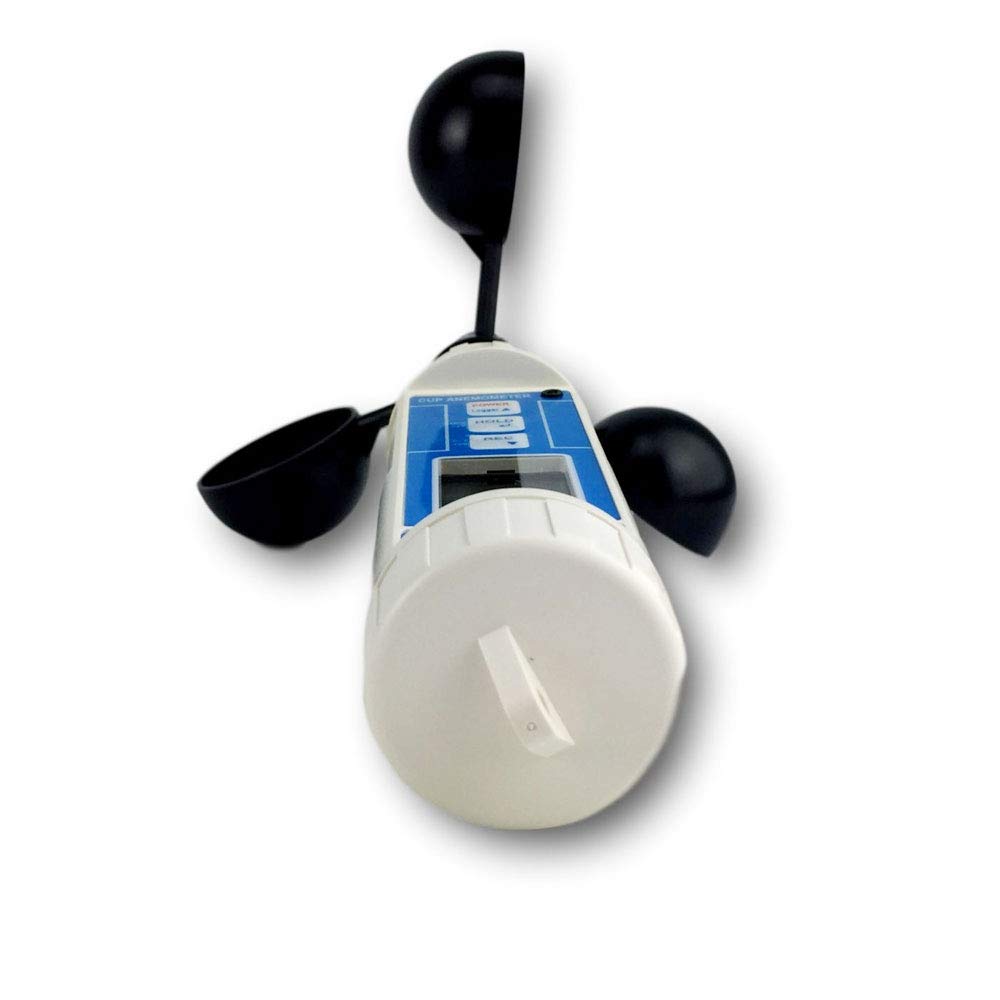

Anemometer and temperature cup type, accurate measurement, can choose from 5 wind speed units: m/s, ft/min., km/h, mile/h, knots. Suitable for natural wind measurement. The 3 cups type, cup size ø135 mm, is designed with low friction to provide accurate measurement results in both high and low airflows. Uses AAA x 4 batteries, small body size, easy to carry, 190 x 40 x 32mm (181g.)

Features Lutron AM-4221 Cup Anemometer with Temperature

• Cup vane anemometer, available for wind speed measurement, high reliability.
• Measurement range : 0.9 to 35.0 m/s
• Wind speed unit : m/s, km/h, ft/min, knot, mile/h.
• ℃, ℉ temperature measurement.
• LCD display, IP 65 water resistance.
• Microprocessor circuit ensures high accuracy and provides special functions and features.
• Records Maximum and Minimum readings with recall.
• Data hold and 100 point data logger with recall.
• Auto power off saves battery life.
• Operates from DC 1.5V ( UM4/AAA ) x 4 PCs batteries.
• Low-friction ball vane wheels is accurate in both high and low velocities.
• Durable, long-lasting components, enclosed in strong, compact ABS-plastic housing.

Specifications Lutron AM-4221 Cup Anemometer with Temperature

• Display: LCD size : 28 mm x 19 mm.
• Wind speed Unit:
  º m/S (meters per second)
  º Km/h ( kilometers per hour )
  º Knot ( nautical miles per hour )
  º ft/min ( feet per minute )
  º mile/h ( miles per hour )
• Temp. unit: ℃, ℉
• Circuit: Custom one-chip of microprocessor LSI circuit.
• Temp. Sensor: Thermister
• Data Logger:
  º Max. can save 100 point data with recall.
  º Manual, push the data logger button once will save data one time.
• Data Hold: Freeze the display reading.
• Sensor Structure: Cup van probe with low friction ball bearing design.
• Memory Recall: Maximum & Minimum value.
• Sampling Time: Approx. 1 second.
• Power off: Auto shut off saves battery life or manual off by push button.
• Operating Temp. and Humidity:
  º 0 to 50℃ .
  º Less than 80% R.H.
• Power Supply: DC 1.5 V battery ( UM4/AAA ) x 4 PCs,
• Power Current: Approx. DC 6.8 mA
• Weight: 181 g/ 0.4 LB. @ Battery is included.
• Dimension:
  º Main instrument : 190 x 40 x 32 mm (7.5″ x 1.6″ x 1.3″)
  º Cup vane ( 3 cups with arm ) : 135 mm dia.

Accessories Included:

• Instruction manual………………….. 1 PC
• Carrying case………………………….1 PC

Lutron AM-4221 – Datasheet
