Description

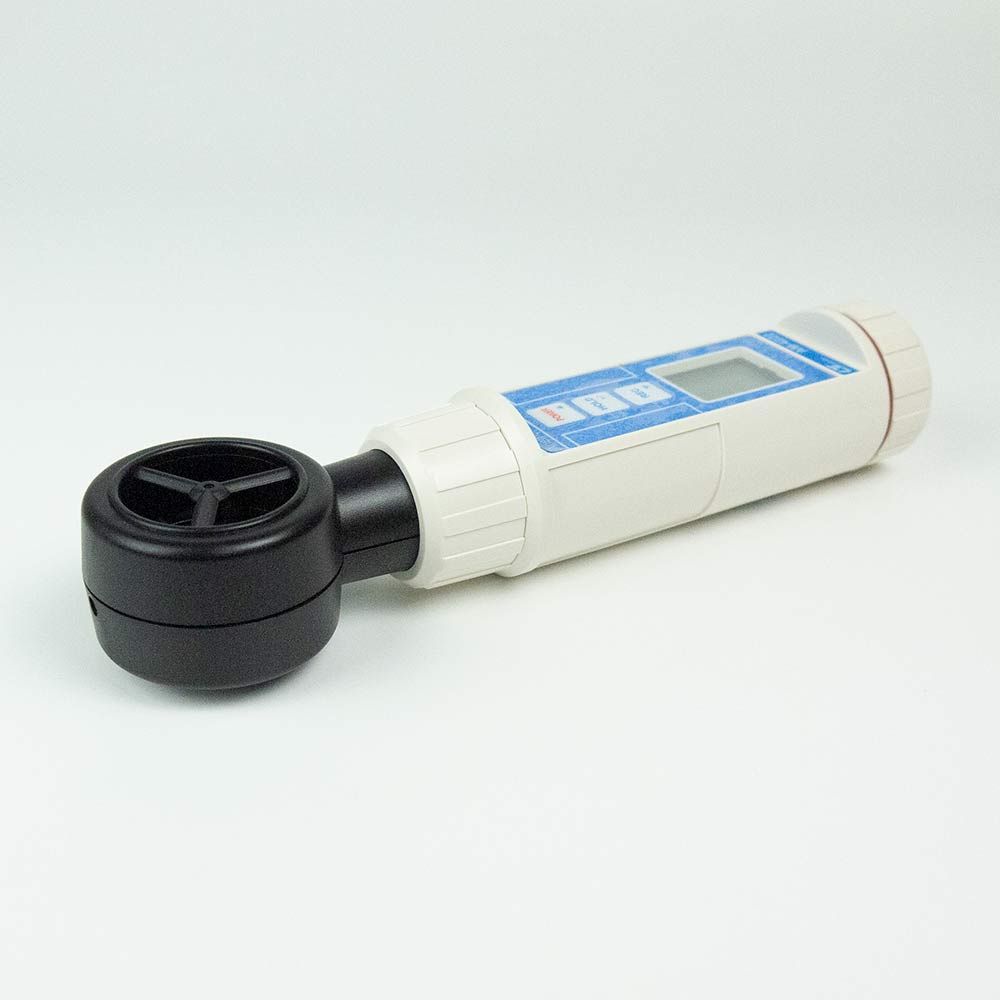

Lutron AM-4222 Vane Anemometer

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Vane Anemometer & Temperature, ABS-plastic fans ideal for natural wind measure. 5-unit measurements selectable m/s, km/h, mile/h, ft/min, knots. LCD display simultaneous value at the same time, the bearing fan is a low friction for high-accuracy. Rugged, durable, compact size, light weight, portable design for one-hand used.

Features Lutron AM-4222 Vane Anemometer

Anemometer, Temperature meter, two in one, professional
Anemometer unit : m/S, Km/h, FPM, mph, Knot
Temperature measurement with , unit. ℃ ℉
Vane anemometer, available for air velocity measurement, high reliability
Two display show air velocity and temperature value at the same time
Bright LCD display
Microprocessor circuit ensures high accuracy and provides special functions and features
Records Maximum and Minimum readings with recall
Auto power off saves battery life
Operates from DC 1.5V ( UM4/AAA ) x 4 PCs batteries
Low-friction ball vane wheels is accurate in both high and low velocities
Durable, long-lasting components, enclosed in strong, compact ABS-plastic housing

Specifications Lutron AM-4222 Vane Anemometer

Display: LCD size : 28 mm x 19 mm
Anemometer Unit:
* m/S (meters per second)
* Km/h ( kilometers per hour )
* FPM ( feet per minute )
* mph ( miles per hour )
* Knot ( nautical miles per hour )
Temp. unit , ℃ ℉
Circuit Custom one-chip of microprocessor LSI circuit
Sensor Structure
* Anemometer: Van probe with low friction ball bearing design
* Temperature: Thermister
Data Hold: Freeze the display reading
Memory Recall: Maximum & Minimum value
Sampling Time: Approx. 1 second
Power off: Auto shut off saves battery life or manual off (REC function)
Operating Temp.: 0 to 50 . ℃
Operating Humidity: Less than 80% R.H.
Power Supply: DC 1.5 V battery ( UM4/AAA ) x 4 PCs
Power Current: Approx. DC 4 mA
Weight: 182 g/ 0.4 LB
Dimension: 205 x 48 x 40 mm (8.1″ x 1.9″ x 1.6″)

Accessories Included:

Instruction manual……………………………………….1 PC

Optional Accessory:

Soft carrying case with sash ( 210 x 80 x 50 mm ), Model : CA-52A

Lutron AM-4222 Manual
