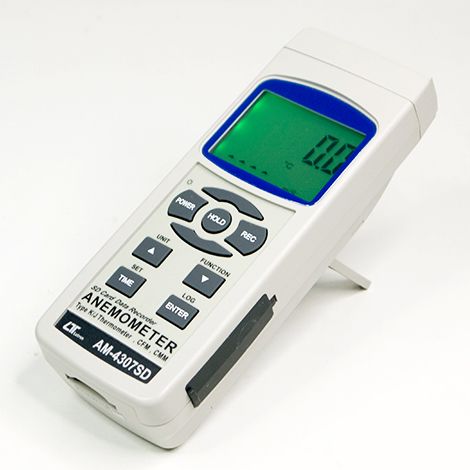

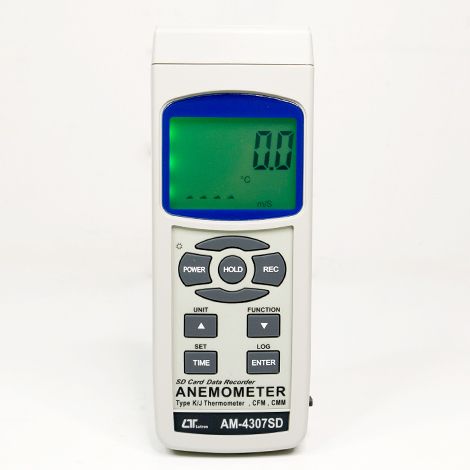

Lutron AM-4307SD Anemometer

Category Brand

Lutron AM-4307SD Anemometer

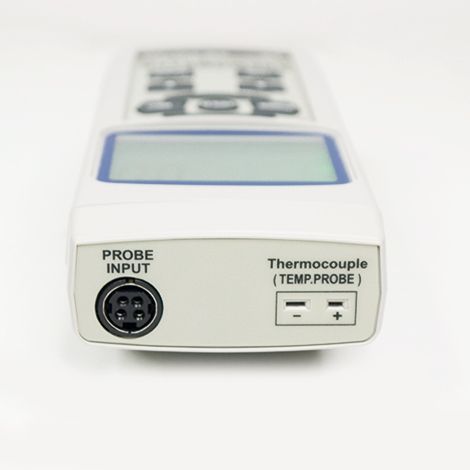

  • One meter can accept two probes : Anemometer probe , Thermocouple probe.
  • Air velocity : m/s, Ft/min, Km/h, Knot, Mile/h.
  • Air flow ( CFM, CMM ) measurement.
  • Air temperature ( ℃, ℉).
  • Air Temp. used thermistor sensor, fast response time.
  • Type K, Type J thermocouple thermometer.
  • Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds

Product Description

Lutron AM-4307SD Anemometer

Anemometer 7 in 1 included with Anemometer probe. And ø72mm plastic vane. Low-friction ball vane wheels make sure high accuracy in high & low velocities. 5 measurement units available (Air velocity) m/s, Ft/min, Km/h, Knot, Mile/h and Two of Air flow CFM, CMM. Separate probe, easy for operation of different measurement environment.

Features Lutron AM-4307SD Anemometer

  • One meter can accept two probes : Anemometer probe , Thermocouple probe.
  • Air velocity : m/s, Ft/min, Km/h, Knot, Mile/h.
  • Air flow ( CFM, CMM ) measurement.
  • Air temperature ( ℃, ℉).
  • Air Temp. used thermistor sensor, fast response time.
  • Type K, Type J thermocouple thermometer.
  • Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds
  • Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
  • Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
  • SD card capacity : 1 GB to 16 GB.
  • LCD with green light backlight, easy reading.
  • Can default auto power off or manual power off.
  • Data hold, record max. and min. reading.
  • Microcomputer circuit, high accuracy.
  • Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter
  • RS232/USB PC COMPUTER interface.
  • Separate probe, easy for operation.
  • Applications : Environmental testing, HVAC, Air conveyors, Flow hoods, Clean rooms, Air velocity, Air balancing, Fans/motors/blowers, Furnace velocity, Refrigerated case, Paint spray booths . measurements.

Specifications Lutron AM-4307SD Anemometer

  • Circuit: Custom one-chip of microprocessor LSI circuit.
  • Display:
    * LCD size : 52 mm x 38 mm
    * LCD with green backlight ( ON/OFF ).
  • Measurement Unit:
    * Air velocity:
    º m/s (meters per second)
    º Km/h ( kilometers per hour )
    º Ft/min ( FPM, feet per minute )
    º Knots ( nautical miles per hour )
    º Mile/h ( mph, miles per hour )
    * Air flow : CFM, CMM
  • Type K/ Type J thermometer : ℃ , ℉
  • Air temperature: ℃ , ℉
  • Datalogger Sampling Time Setting range:
    * Auto: 1 second to 3600 seconds
    * Manual: Push the data logger button once will save data one time.
  • Memory Card: SD memory card. 1 GB to 16 GB.
  • Advanced setting:
    * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
    * Set sampling time
    * Auto power OFF management
    * Set beep Sound ON/OFF
    * Decimal point of SD card setting
    * SD memory card Format
    * Set thermometer type to Type K or Type J
    * Set temperature unit to ℃ or ℉
    * Set air flow type ( CFM/USA, CMM/EURO )
    * Set air flow area dimension
  • Temperature Compensation: Automatic temp. compensation for the Anemometer function and the type K/J thermometer.
  • Data Hold: Freeze the display reading.
  • Memory Recall: Maximum & Minimum value.
  • Sampling Time of Display: Approx. 1 second.
  • Data Output: RS 232/USB PC computer interface.
  • Operating Temperature: 0 to 50 ℃.
  • Operating Humidity: Less than 85% R.H.
  • Power Supply:
    * Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
    * DC 9V adapter input. ( AC/DC power adapter is optional ).
  • Power Current:
    * Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 30 mA.
    * When SD card save the data and LCD Backlight is OFF) : Approx. DC 50 mA.
  • Weight: 347 g/ 0.76 LB. * Meter only
  • Dimension:
    * Main instrument : 182 x 73 x 47.5 mm ( 7.1 x 2.9 x 1.9 inch )
    * Anemometer sensor probe : Round, 72 mm Dia .

Accessories Included:

  • Instruction manual………………………1 PC
  • Anemometer probe…………………….. 1 PC
  • Hard carrying case ( CA-06 )………….1 PC

Optional Accessories:

  • SD Card ( 4 G )
  • Type K thermocouple probe.
  • AC to DC 9V adapter.
  • USB cable, USB-01.
  • RS232 cable, UPCB-02.
  • Data Acquisition software,SW-U801-WIN.
  • Excel Data Acquisition software,SW-E802.





Lutron AM-4307SD – Datasheet


Produk asli Kami distributor langsung LUTRON. Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Lutron

Model

AM-4307SD

Made In

Taiwan

Weight

1,5 kg

Accessories Included

Instruction manual
Anemometer probe
Hard carrying case ( CA-06 )
