Product Description
Lutron BTM-4208SD 12 Channels Temp. Recorder
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

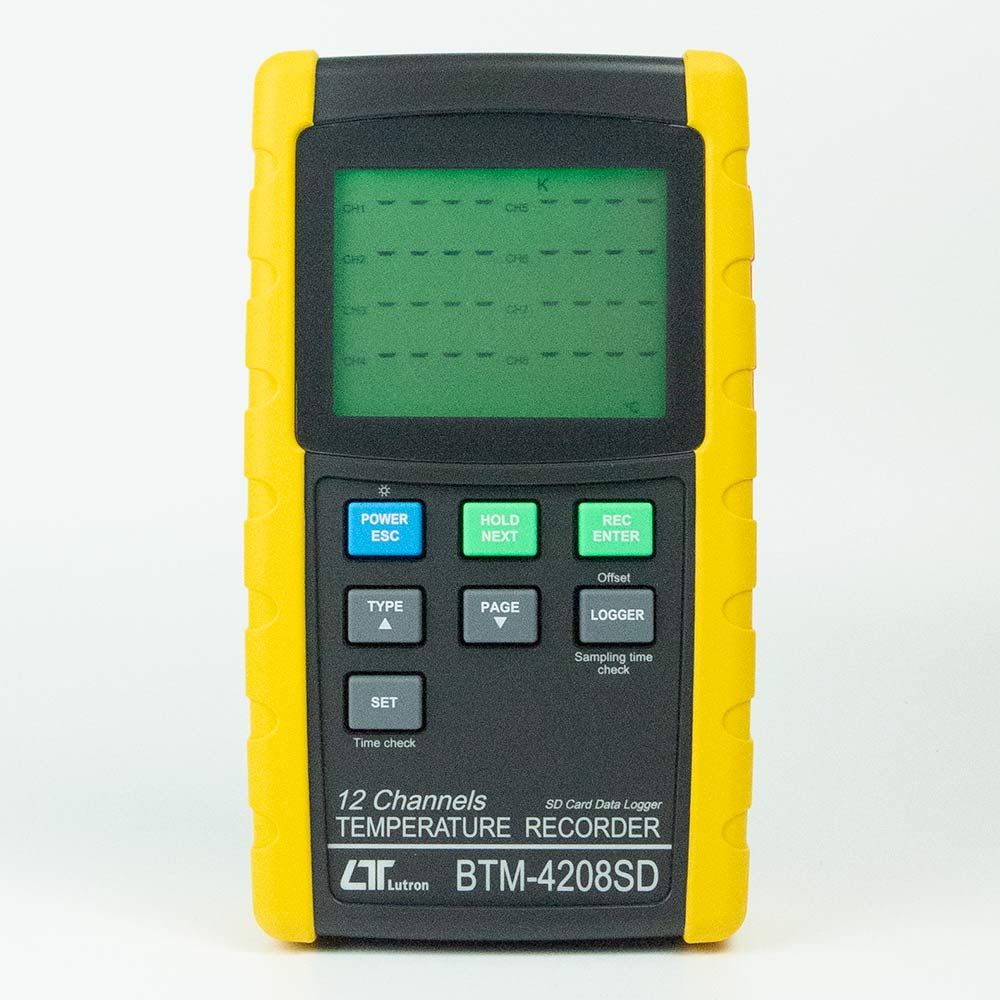

Lutron BTM-4208SD Temperature Recorder 12Ch | Max.1300℃
12 Channels Temperature Recorder, compatible with Thermocouple type K, J, T, E, R, S. Super large LCD display with Green blacklight easy to readout the values. Auto power off, Data hold, Record MAX. and MIN. reading and RS232/USB PC COMPUTER interface.
Datalogger Sampling Time Setting range
- Auto: 1 second to 3600 seconds
- Manual: Push the data logger button once will save data one time.
Innovation and easy operation, No need to setup software, Just put the SD Card into the computer. You can open file data as Excel directly.
Features Lutron BTM-4208SD 12 Channels Temp. Recorder
- 12 channels Temperature recorder, use SD card to save the data along with time information, paperless
- Real time data logger, save the 12 channels Temp. measuring data along the time information ( year, month, date, minute, second ) into the SD memory card and can be down load to the Excel, extra software is no need. User can make the further data or graphic analysis by themselves
- Channels no. : 12 channels ( CH1 to CH12 ) temperature measurement
- Sensor type : Type J/K/T/E/R/S thermocouple
- Auto datalogger or manual datalogger
- Data logger sampling time range: 1 to 3600 seconds
- Type K thermometer: -100° to 1300° C
- Type J thermometer: -100° to 1200° C
- Page select, show CH1 to CH8 or CH9 to CH12 in the same LCD
- Display resolution : 1 degree/0.1 degree
- Offset adjustment
- SD card capacity: 1GB to 16GB (NOT INCLUDED)
- RS232/USB computer interface
- Microcomputer circuit provides intelligent function and high accuracy
- Jumbo LCD with green light backlight, easy reading
- Can default auto power off or manual power off
- Data hold to freeze the measurement value
- Record function to present the max. and min. reading
- Power by UM3/AA ( 1.5 V ) x 8 batteries or DC 9V adapter
- RS232/USB PC COMPUTER interface
- Heavy duty & compact housing case
Specifications Lutron BTM-4208SD 12 Channels Temp. Recorder
| Datalogger Sampling Time Setting range | Auto: 1 second to 3600 seconds |
| Manual: Push the data logger button once will save data one time. | |
| Advanced setting |
|
| Data Output | RS 232/USB PC computer interface. |
| Power Supply | Battery AA x 8 or Adapter 9V (Optional) |
| Dimension/ Weight | 225 X 125 X 64 mm (944g) |
Electrical Specifications (23± 5 )
| Sensor type | Range | Resolution | Accuracy |
| Type K | -50.1 to -100.0 °C | 0.1°C | ± (0.4 % + 1°C) |
| -50.0 to 999.9°C | ± (0.4 % + 0.5°C) | ||
| 1000 to 1300°C | 1°C | ± (0.4 % + 1°C) | |
| Type J | -50.1 to -100.0°C | 0.1°C | ± (0.4 % + 1°C) |
| -50.0 to 999.9°C | ± (0.4 % + 0.5°C) | ||
| 1000 to 1150°C | 1°C | ± (0.4 % + 1°C) | |
| Type T | -50.1 to -100.0°C | 0.1°C | ± (0.4 % + 1°C) |
| -50.0 to 400.0°C | ± (0.4 % + 0.5°C) | ||
| Type E | -50.1 to -100.0°C | 0.1°C | ± (0.4 % + 1°C) |
| -50.0 to 900.0°C | ± (0.4 % + 0.5°C) | ||
| Type R | 0 to 600°C | 1°C | ± (0.4 % + 0.5°C) |
| 601 to 1700°C | ± (0.4 % + 1°C) | ||
| Type S | 0 to 600°C | 1°C | ± (0.4 % + 0.5°C) |
| 601 to 1500°C | ± (0.4 % + 1°C) |
Accessories Included
- Instruction manual
- Type K Temp. probe, TP-01= 2 pcs
- SD Card ( 4 GB )
- Hard carrying case, CA-08
Optional Accessories
- DC Adaptor AP-9VA , 9 volt
- Type K thermocouple probe. TP-01, TP-02A. TP-03, TP-04
- Battery AA ( 1.5 V ) x8 pcs
Lutron BTM-4208SD – Datasheet
