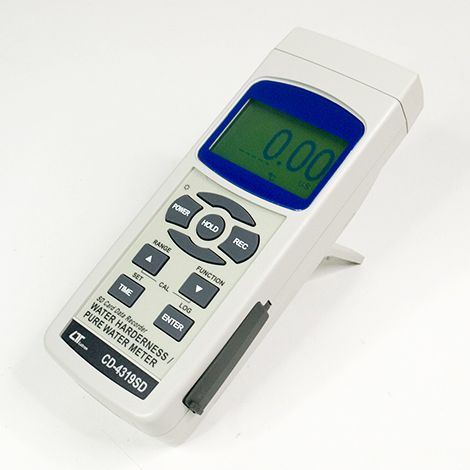

Lutron CD-4319SD Water Hardness/Pure Water Meter

Lutron CD-4319SD Water Hardness/Pure Water Meter

  • One meter for multi purpose operation : Conductivity TDS (Total dissolved solids), Salt , Hardness , Resistivity measurement
  • Conductivity : 20 uS/ 200 uS/2 mS/20 mS/200 mS
  • Salt : 0 to 12 % salt ( % weight )
  • Hardness : 0 to 100,000 ppm
  • Resistivity : 5 ohm-cm to 99.99 M ohm-cm
  • Conductivity measurement can select Temp. Coefficient of measurement solution
  • Separate probe, easy for operation of different measurement environment

Product Description

Lutron CD-4319SD Water Hardness/Pure Water Meter

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Features Lutron CD-4319SD Water Hardness/Pure Water Meter

  • One meter for multi purpose operation : Conductivity TDS (Total dissolved solids), Salt , Hardness , Resistivity measurement.
  • Conductivity : 20 uS/ 200 uS/2 mS/20 mS/200 mS.
  • Salt : 0 to 12 % salt ( % weight ).
  • Hardness : 0 to 100,000 ppm .
  • Resistivity : 5 ohm-cm to 99.99 M ohm-cm
  • Conductivity measurement can select Temp. Coefficient of measurement solution.
  • ATC for the conductivity measurement
  • Separate probe, easy for operation of different measurement environment

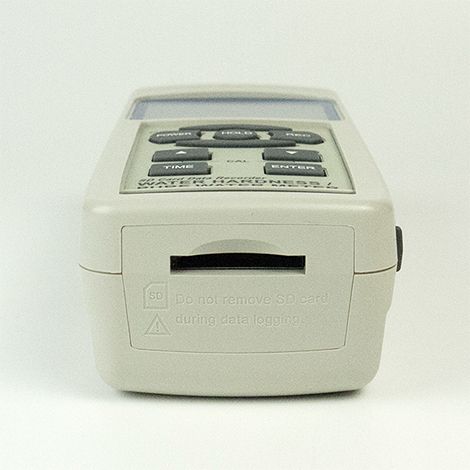

  • Real time SD memory card Datalogger, built-in Clock and Calendar, sampling time can set from 1 sec to 3600 seconds
  • Manual datalogger is available, during execute the manual datalogger function, it can set the different location no. ( position 1 to position 99 ).
  • Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, thenuser can make the further data or graphic analysis by themselves.
  • SD card capacity : 1 GB to 16 GB.
  • LCD with green light backlight, easy reading
  • It can default auto power off or manual power off.
  • Data hold, record max. and min. reading.
  • Microcomputer circuit, high accuracy.
  • Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
  • RS232/USB PC COMPUTER interface.
  • Wide applications: water conditioning, aquariums,beverage,fish hatcheries, food processing, photography,laboratory, paper industry plating industry, quality control, school & college, water conditioning.

Specifications Lutron CD-4319SD Water Hardness/Pure Water Meter

  • Circuit: LSI microprocessor single-chip custom circuit.
  • Display:
    * LCD Size: 52mm x 38mm
    * LCD with green backlight (ON/OFF).
  • Measurement Function:
    * Conductivity (US, mS)
    * TDS (Total Dissolved Solids, PPM)
    * Salt (% Weight)
    * Temperature (℃ , ℉)
    * Hardniss
    * Resistance
  • Temperature Compensation: Automatic from 0 to 60 ℃ (32 – 140 ℉), with variable temperature compensation factor between 0 to 5.0% per C.
  • Probe Structure: Pt glass electrode for long life. High performance for low conductivity measurements (pure water).
  • Datalogger Sampling Timing Range:
    * Auto: 1 second to 3600 seconds.@Sampling time can be set to 1 second, but data memory may be lost.
    * Manual: Press data logger button once will save data one time.@Set sampling time to 0 seconds.@Manual mode,also can choose position 1 to 99(Location)no.
  • Memory Card: SD memory card. 1GB to 16GB.
  • Advanced settings:
    * Set the clock time (Year/Month/Date, Hour/Minute/Second)
    * Set the sampling time
    * Auto shutdown management
    * Set Beep sound ON/OFF
    * SD card setting decimal point
    * Format SD memory card
    * Set temperature unit to ℃ or ℉
    * Set CD temperature drop factor
    * Set CELL K probe value
  • Data Store: Freezes the reading view.
  • Memory Retention: Maximum & Minimum Values.
  • Display Sampling Time: Approx. 1 second.
  • Data Output: PC PC RS 232/USB interface. * Subscribe marked RS232 cable, UPCB-02 will get RS232 plug. *
  • Plug in the desired USB cable, USB-01 will get a USB plug.
  • Operating Temperature:
    * Meter: 0 to 50℃.
    * Probe 0 to 60℃.
  • Operating Humidity: Less than 85% R.H.
  • Power Supply:
    * Alkaline or heavy-duty batteries DC 1.5 V ( UM3, AA ) x 6 PCs, or equivalent.
    * Input DC 9V adapter. (The AC/DC power adapter is turned on).
  • Power Current:
    * Normal operation (without SD card saving data and LCD Backlight OFF): Approx. DC 6mA.
    * When SD card is storing data and LCD Backlight is OFF: Approx. DC 37 mA.
    * If the LCD backlight is on, the power consumption will increase by approx. 12 mA.
  • Weight: 489 g/1.08 lb.
  • Dimensions:
    * Meters: 177 x 68 x 45 mm (7.0 x 2.7 x 1.9 inches)
    * Probe Round, Diameter 22 mm. x length 120mm.

Accessories included

  • Instruction manual…………………………………..1 PC
  • Conductivity/TDS/Salt pt glass probe, CDPB-04………………………………………………. 1 PC
  • Hard carrying case ( CA-06 )…………………….. 1 PC

Optional accessories

  • 1.413 mS Conductivity Standard Solution, CD-14
  • SD memory card ( 4 GB )
  • AC to DC 9V adapter.
  • USB cable, USB-01.
  • RS232 cable, UPCB-02.
  • Data Acquisition software,SW-U801-WIN., SW-E802





Lutron CD-4319SD – Datasheet


Produk asli Kami distributor langsung Lutron. Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Lutron

Model

CD-4319SD

Made In

Taiwan

Weight

1,5 kg

Accessories Included

Instruction manual
Conductivity/TDS/Salt pt glass probe, CDPB-04
Hard carrying case ( CA-06 )
