Product Description

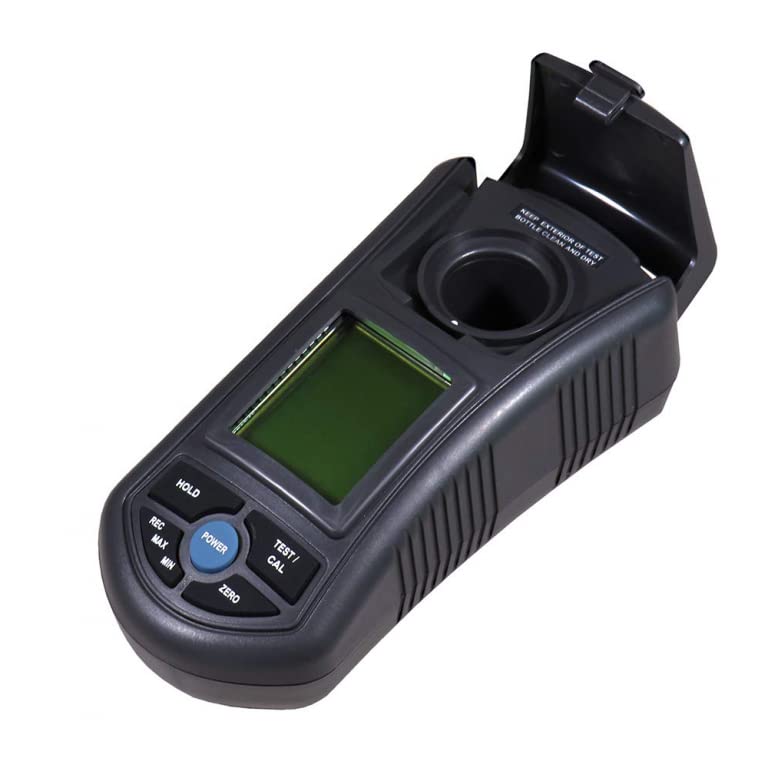

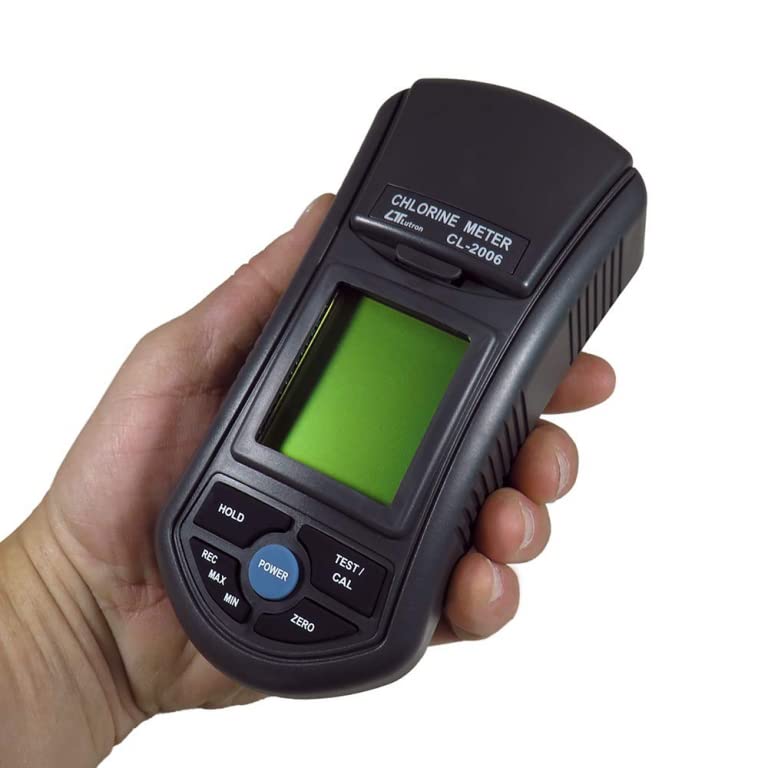

Lutron CL-2006 Chlorine Meter
Chlorine meter (Free chlorine and Total chlorine), measuring range 0.00 to 3.50 ppm, can measure quickly and accurately, has a function of Data hold, Record (Max., Min.) and automatic shutdown when not in use.
Features Lutron CL-2006 Chlorine Meter
- The meter measures the Free and Total chlorine ( CL ) in the 0.00 to 3.50 ppm ( mg/L ).
- The measuring method is an adaptation of the USEPA Method 330.5 for waste water and Standard Method 4500-Cl G for drinking water.
- The advanced optical system based on a special narrow band LED lamp that allows most accurate and repeatable reading.
- Friendly and powerful calibration function are able to validate good performance of your meter at any time.
1.00 ppm Free standard solution and 1.00 ppm Total standard solution are includes as the standard accessories. - The unique optics structure, enables the instrument to read with high resolution : 0.01 ppm ( mg/L ).
- Splash waterproof on the front panel.
- Jumbo LCD, easy readout.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Battery operated for field and on-site testing convenience.
- Data hold function for freezing the desired value on display.
- Records Maximum and Minimum reading with Recall.
- Heavy duty & compact housing with hard carrying case, designed for easy carry out & operation.
- Auto shut off is available to save battery life.
- Application : Test swimming pool, municipal water, food and beverage water, or other aqueous solution where fluid clarity is important.
Specifications Lutron CL-2006 Chlorine Meter
- Circuit: Custom one-chip of microprocessor LSI circuit.
- Display: LCD size : 41 mm x 34 mm
- Range:
º Free chlorine ( CL ) : 0.00 to 3.50 ppm ( mg/L ).
º Total chlorine ( CL ) : 0.00 to 3.50 ppm ( mg/L ). - Resolution: 0.01 ppm ( mg/L ).
- Accuracy: ± 0.02 ppm ( mg/L ). @ 1.00 ppm ( mg/L )
- Light source: LED, 525 nm.
- Light detector: Photo diode
- Response time: Less than 10 seconds.
- Sample volume: 10 mL.
- Data Hold: Freeze the display reading.
- Memory Recall: Maximum & Minimum value.
- Method: The measuring method is an adaptation of the USEPA Method 330.5 and Standard Method 4500-Cl G.
- Display Sampling Time: Approx. 1 second.
- Power off: Auto shut off saves battery life or manual off by push button.
- Calibration points: Zero chlorine.
º 1.00 ppm ( Free chlorine ).
º 1.00 ppm ( Total chlorine ). - Operating Temperature: 0 to 50 ℃.
- Operating Humidity: Less than 85% R.H.
- Power Supply: DC 1.5 V battery ( UM4, AAA ) x 6 PCs, or equivalent.
- Power Current:
º Stand by Approx. DC 4 mA.
º Testing Approx. DC 12 mA. - Weight: 320 g/0.70 LB. @ Battery is included.
- Dimension: 155 x 76 x 62 mm ( 6.1 x 3.0 x 2.4 inch)
Accessories Included:
- Hard carrying case CA-07A…………… 1 PC
- Instruction manual………………………1 PC
- 1.0 ppm Free Chlorine standard solution, CF-01……………………………1 PC
- 1.0 ppm Total Chlorine standard solution, CT-01………………………….. 1 PC
- Zero Chlorine standard solution, CL-01……………………………………….1 PC
- Empty testing bottle…………………….2 PC
- Clean cloth…………………………………1 PC
- Free Chlorine DPD powder…………….10 PC
- Total Chlorine DPD powder……………10 PC
Optional Accessories:
- Free Chlorine DPD powder ( 10 PCs ), Model : CFP-10
- Total Chlorine DPD powder ( 10 PCs ), Model : CTP-10
- Empty testing bottle, Model : 0601
- 1.0 ppm Free Chlorine standard solution, Model : CF-01
- 1.0 ppm Total Chlorine standard solution, Model : CT-01
- Zero Chlorine standard solution, Model : CL-01
Lutron CL-2006 – Datasheet
