Description

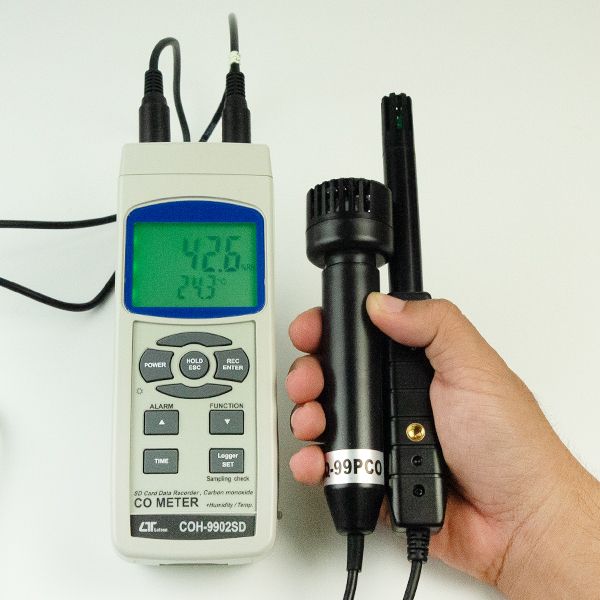

Lutron COH-9902SD CO Meter + Humidity/Temp.
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
(SD Card Real time Data Recorder CO, Humidity, DEW Point, Temp.)
Carbon Dioxide Meter and Recorder comes with a CO Probe and Humidity Probe in the kit. The meter can record and save the results to the SD Card in real time. Measures quickly and accurately. The LCD screen has a green backlight. Can be used in bright areas. Data hold function, Record (Max., Min.) and auto power off when not in use. Connect to COMPUTER via RS232 cable, USB PC interface (sold separately, not included).
One device can measure 5in1, so it is convenient and supports all applications
- CO (Carbon monoxide)
- Humidity
- Dew Point Temp
- Wet bulb Temp
- Temperature
Data recording function
- Save data to SD Card (Support SD Card 1 to 16 GB)
- The results of the data recording are in “EXCEL File” format, just insert the SD Card into the computer. View data via EXCEL program immediately
- Set the recording frequency (Sampling Time) from 1 to 3600 seconds. Built-in Clock and Calendar, thus displaying the time and date of recording in the file
 ▲ EXCEL data screen (for example) |  ▲ EXCEL graphic screen (for example) |
Features Lutron COH-9902SD CO Meter + Humidity/Temp.
- Real time recorder, save the data into the SD memory card and can be down load to the Excel, extra software is no need. User can make the further data or graphic analysis by themselves. under the Excel software
- Interested? Please don’t hesitate to call us @022-7106162
- At the same time, the SD memory card can record two probe’s data ( %RH/CO/Temp. ) along with the time information into the one Excel file at the same time
- Manual datalogger is available, during execute the manual datalogger function, it can set the different ocation no. ( position 1 to position 99 )
- Air quality measurement application, multi-function : CO ( Carbon monoxide ), Humidity, temperature measurement
- OR wa us @0821-3010-0456
- Dew point Temp. and Wet bulb Temp. measurement
- Alarm setting with the beeper sound output
- Separate probe, easy for remote measurement
- Meter can cooperate with 2 GB to 16 GB SD card, SDcard is optional
- RS232/USB computer interface
Specifications Lutron COH-9902SD CO Meter + Humidity/Temp.
General Specifications
| Display | LCD size : 52 mm x 38 mm LCD with green backlight ( ON / OFF ) | |
| Sensor structure | CO | Galvanic cell type |
| Humidity | Precision capacitance sensor | |
| Temperature | Precision thermistor | |
| Circuit | Custom one-chip of microprocessor LSI circuit | |
| Datalogger Sampling Time Setting range | Auto | 2 second to 3600 seconds (Sampling time can set to 1 second, but memory data may loss) |
| Manual | Push the data logger button once will save data one time (Set the sampling time to 0 second.) (Manual mode, can also select the 1 to 99 position ( Location ) no.) | |
| Memory card | SD memory card. 1GB to 16GB | |
| Advanced |
| |
| Data Output | RS232/USB PC computer interface
| |
| Data Hold | Freeze the display reading | |
| Memory recall | Maximum & Minimum value | |
| Sampling Time of Display | Approx. 1 second | |
| Power Requirements | Battery AA × 6 or Adapter ADC 9V (optional) | |
| Dimension (Weight) |
| |
| Included Accessories | * Instruction manual 1 PC * Hard case CA-06 * Humidity probe 1 PC * CO probe 1 PC |
| Optional accessories : | * SD card |
Electrical Specifications
▼ CO (Carbon Monoxide)
| Measurement | Range | Resolution | Accuracy |
| CO (Carbon monoxide) | 0 to 1000 ppm | 1 ppm | ± (5% + 2 ppm) |
▼ Temperature
| Measurement | Range | Resolution | Accuracy |
| Temperature | 0 to 50℃ | 0.1℃ | ±0.8℃ |
▼ Humidity
| Measurement | Range | Resolution | Accuracy |
| Humidity | 5 to 95% R.H. | 0.1% R.H. | ± 3% RH (< 70% RH) ± (3% reading + 1% RH) |
▼ Dew Point
| Measurement | Range | Resolution | Remark |
| Dew Point | -25.3 to 48.9℃ | 0.1℃ | Dew Point display value is calculated from the Humidity, Temp. measurement automatically. |
▼ Wet bulb
| Measurement | Range | Resolution | Accuracy |
| Wet bulb | -21.6 to 50.0℃ | 0.1℃ | Wet bulb display value is calculated from the Humidity, Temp. measurement automatically. |
Lutron COH-9902SD – Datasheet
