Product Description

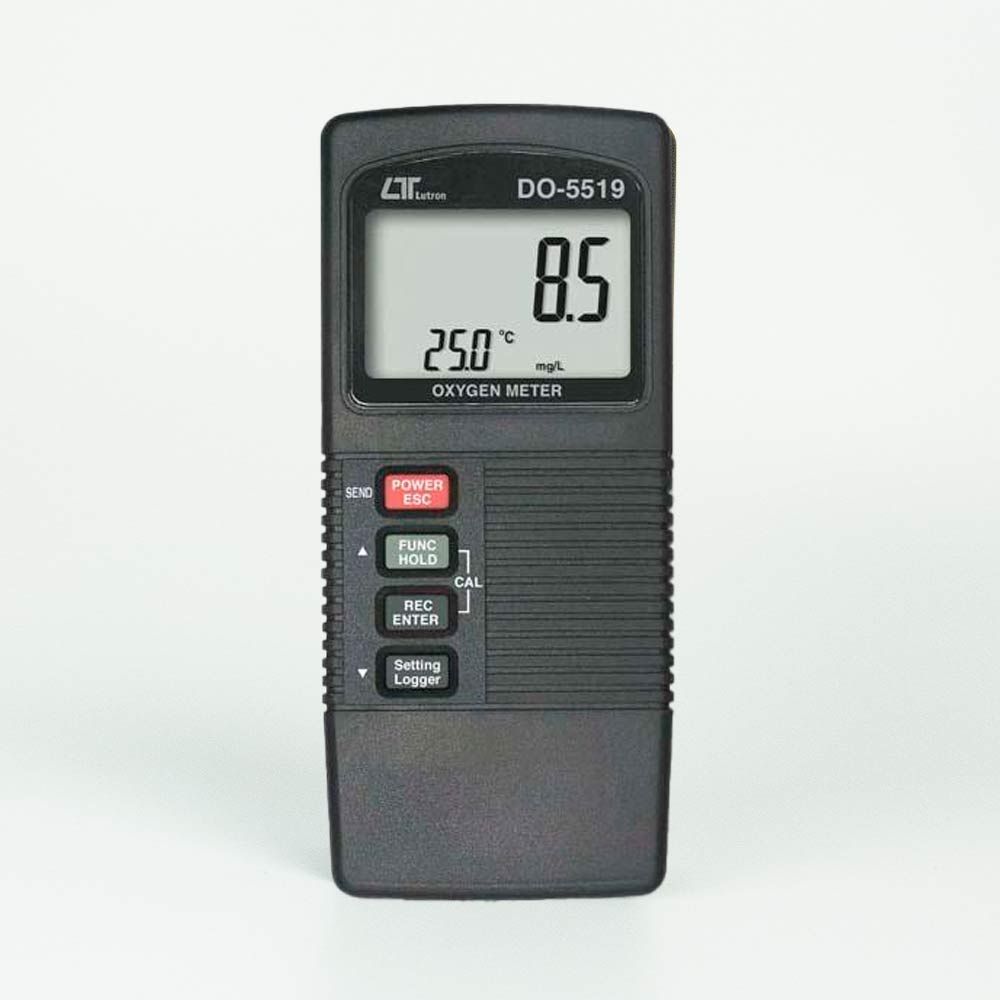

Lutron DO-5519 Dissolved Oxygen Meter

The DO-5519 Digital Dissolved Oxygen Meter is supplied with a polarographic type probe (cable length: 4M). Manual and auto data logger, with flexible sampling time selection, can save max. 1,600 reading data. Auto power off, Data hold, Record MAX./ MIN. reading. Data output with RS232 PC serial interface. Operate with battery DC 9V or AC/DC power adapter (optional).

Features Lutron DO-5519 Dissolved Oxygen Meter

• This Digital Oxygen Meter is supplied with a polarographic type probe with an incorporated Temp. sensor which serves for precise Dissolved Oxygen ( DO ) and Temp. measurement.
• Applications for Aquarium, Medical research, Agriculture, Fish hatcheries, Laboratory, Water conditioning,
• Mining industry, Schools & Colleges, Quality control…
• Heavy duty dissolved oxygen probe, probe head size can connect with BOD bottle
• Separate probe with 4 meters cable.
• Automatic Temp. compensation from 0 to 50℃ for sensor.
• Build in advanced setting procedures, it can adjust the ” % SALT ” & ” Height ” compensation value.
• Microprocessor circuit assures high accuracy and provides special functions and features.
• Multi-display, show Dissolved oxygen & Temp. at the same time.
• RS 232 PC serial interface.
• Build in temperature , measurement.
• LCD with two display, easy readout.
• Manual and auto data logger, with flexible sampling time selection, can save max. 1,600 reading data.
• Power function can default to auto off or manual off.
• Temperature unit can default to ℃ or ℉.
• Microcomputer circuit, intelligent function, high accuracy.
• Records Maximum and Minimum readings with recall.
• Data hold function for freezing the desired value.
• Build in the input socket for DC 9V power adapter.
• RS232 PC serial interface.
• Use the durable, long-lasting components, including a heavy duty & compact ABS-plastic housing case.

Specifications Lutron DO-5519 Dissolved Oxygen Meter

• Display:
  * LCD size : 44 mm x 29 mm.
  * Dual function LCD
• Circuit: Custom one-chip of microprocessor LSI circuit.
• Measurement & Range:
  * Dissolved Oxygen: 0 to 20.0 mg/L ( liter ).
  * Oxygen in Air: 0 to 100.0 %.
  * Temperature: 0 to 50℃ .
• Resolution:
  * Dissolved Oxygen: 0.1 mg/L.
  * Oxygen in Air: 0.1 % O2 .
  * Temperature: 0.1 ℃.
• Accuracy:
  * Dissolved Oxygen: ± 0.4 mg/L.
  * Oxygen in Air: ± 0.7% O2.
  * Temperature ± 0.8 ℃/1.5 ℉.
• Sensor Structure: The polarographic type oxygen probe with an incorporated temperature sensor.
• Probe Compensation and Adjustment:
  * Temperature: 0 to 50℃,
  * Salt: 0 to 39 %Salt
  * Height: 0 to 3,900 meter
• Memory Recall: Records Maximum, Minimum readings with recall.
• Power off: Auto power off saves battery life, or manual off by push button.
• Data Output: RS 232 PC serial interface.
• Sampling Time of Data Logger:
  * Manual: Push the data logger button once will save data one time.
  * Auto: 1, 2, 5, 10, 30, 60, 600, 1800, 3600 seconds.
• Data Logger number: Max. 1,600-point Data logger
• Data Hold: Freeze the display reading.
• Sampling Time of display: Approx. 1 second.
• Data Output: RS 232 PC serial interface.
• Operating Temperature: 0 to 50℃ .
• Operating Humidity: Less than 80% RH.
• Power Supply: 006P DC 9V battery ( Alkaline or Heavy duty type ) or DC 9V adapter input.
• Power Current: Approx. DC 6.2 mA.
• Weight: 446 g/0.98 LB.
• Dimension:
  * Main instrument: 135 x 60 x 33 mm.
  * Oxygen probe : 190 mm x 28 mm Dia. ( 7.5″ x 1.1″ Dia. ) Probe’s cable length : 4 meters.

Accessories Included:

• Oxygen probe ( OXPB-11 )…………….1 PC.
• Soft carrying case ( CA-05A )…………1 PC.
• Operation manual………………………. 1 PC.
• Spare Probe head with Diaphragm OXHD-04…………………………………..2 set
• Probe-filling Electrolyte OXEL-03……………………………………1 set

Optional probe and accessories:

• Oxygen probe…………………..OXPB-11
• Spare Probe head with Diaphragm set………………….OXHD-04
• Probe-filling Electrolyte……….OXEL-03
• RS232 cable……………………. UPCB-02
• USB cable………………………..USB-01
• Data Acquisition software…… SW-U801-WIN
• Data logger software………….SW-DL2005
• Hard carrying case……………. CA-06
• AC to DC 9V adapter

Lutron DO-5519 – Datasheet
