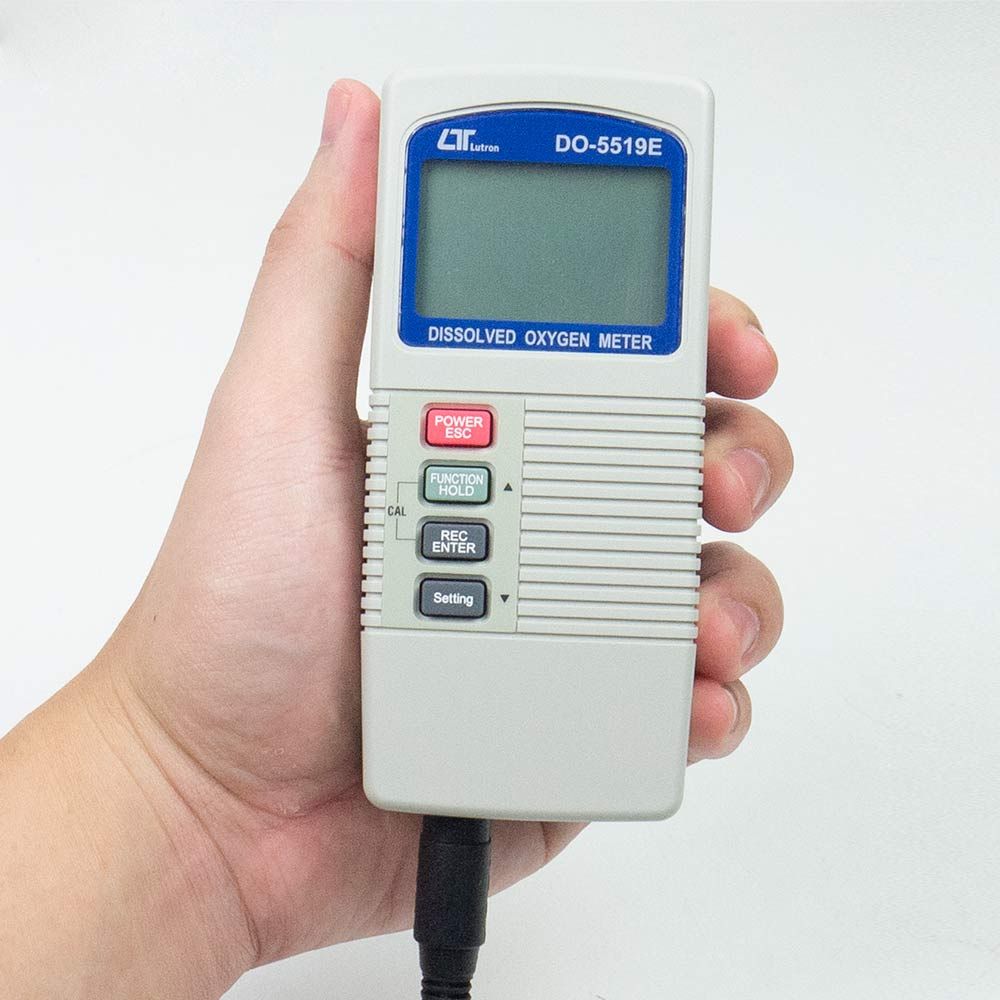

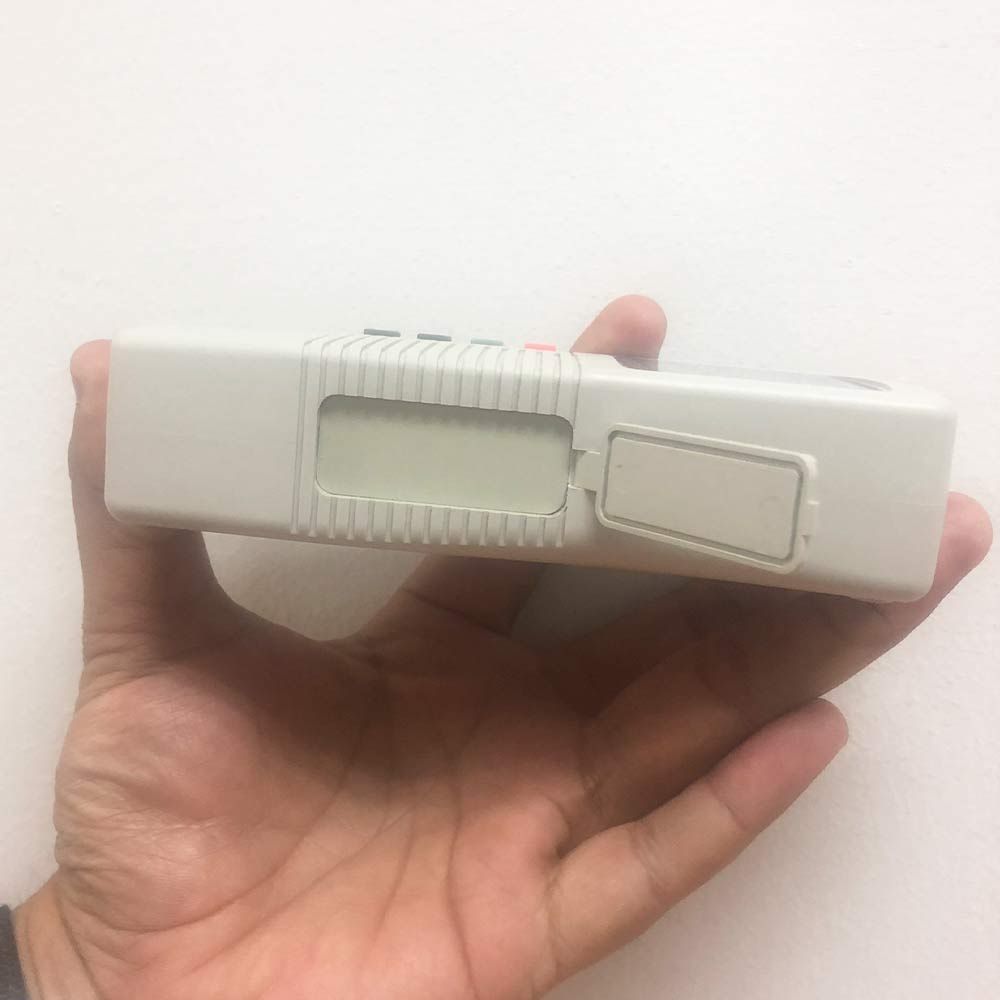

Lutron DO-5519E Dissolved Oxygen Meter

Description

Lutron DO-5519E Dissolved Oxygen Meter

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Features Lutron DO-5519E Dissolved Oxygen Meter

• This Digital Oxygen Meter is supplied with a polarographic type probe with an incorporated Temp. sensor which serves for precise Dissolved Oxygen ( DO ) and Temp. measurement
• Applications for Aquarium, Medical research, Agriculture, Fish hatcheries, Laboratory, Water conditioning, Mining industry, Schools & Colleges, Quality control…
• Heavy duty dissolved oxygen probe, probe head size can connect with BOD bottle
• Separate probe with 4 meters cable
• Automatic Temp. compensation from 0 to 50 for sensor
• Build in advanced setting procedures, it can adjust the ” % SALT ” & ” Height ” compensation value
• Microprocessor circuit assures high accuracy and provides special functions and features
• Multi-display, show Dissolved oxygen & Temp. at the same time
• Build in temperature , measurement
• LCD with two display, easy readout
• Power function can default to auto off or manual off
• Temperature unit can default to ℃ or ℉
• Microcomputer circuit, intelligent function, high accuracy
• Records Maximum and Minimum readings with recall
• Data hold function for freezing the desired value
• Use the durable, long-lasting components, including a heavy duty & compact ABS-plastic housing case

Specifications Lutron DO-5519E Dissolved Oxygen Meter

• Display:
  º LCD size : 44 mm x 29 mm.
  º Dual function LCD
• Circuit: Custom one-chip of microprocessor LSI circuit.
• Measurement & Range:
  º Dissolved Oxygen: 0 to 20.0 mg/L ( liter ).
  º Oxygen in Air: 0 to 100.0 %.
  º Temperature: 0 to 50 ℃.
• Resolution:
  º Dissolved Oxygen: 0.1 mg/L.
  º Oxygen in Air: 0.1 % O2 .
  º Temperature: 0.1 ℃.
• Accuracy (23± 5 ℃):
  º Dissolved Oxygen: ± 0.4 mg/L.
  º Oxygen in Air: ± 0.7% O2..
  º Temperature: ± 0.8 ℃/1.5 ℉.
• Sensor Structure: The polarographic type oxygen probe with an incorporated temperature sensor.
• Memory Recall: Records Maximum, Minimum readings with recall.
• Probe Compensation and Adjustment:
  º Temperature 0 to 50 ℃,
  º Salt: 0 to 39 %Salt
  º Salt: 0 to 39 %Salt
• Power off: Auto power off saves battery life, or manual off by push button.
• Data Hold: Freeze the display reading.
• Sampling Time of display: Approx. 1 second.
• Operating Temperature: 0 to 50 ℃.
• Operating Humidity: Less than 80% RH.
• Power Supply: 006P DC 9V battery ( Alkaline or Heavy duty type ).
• Power Current: Approx. DC 6.2 mA.
• Weight: 446 g/0.98 LB.
• Dimension:
  º Main instrument: 135 x 60 x 33 mm.
  º Oxygen probe : 190 mm x 28 mm Dia. ( 7.5″ x 1.1″ Dia. ) Probe’s cable length : 4 meters.

Accessories Included:

• Oxygen probe ( OXPB-11 )…………….1 PC
• Soft carrying case ( CA-05A )…………1 PC
• Operation manual………………………..1 PC
• Spare Probe head with Diaphragm OXHD-04…………………………………..2 PC
• Probe-filling Electrolyte OXEL-03……………………………………1 PC

Optional probe and accessories:

• Oxygen probe…………………..OXPB-11
• Spare Probe head with Diaphragm set…………………. OXHD-04
• Probe-filling Electrolyte……….OXEL-03

Optonal Accesories:

• Carrying case CA-06: Hard carrying case. ( 280 x 195 x 65 mm )
