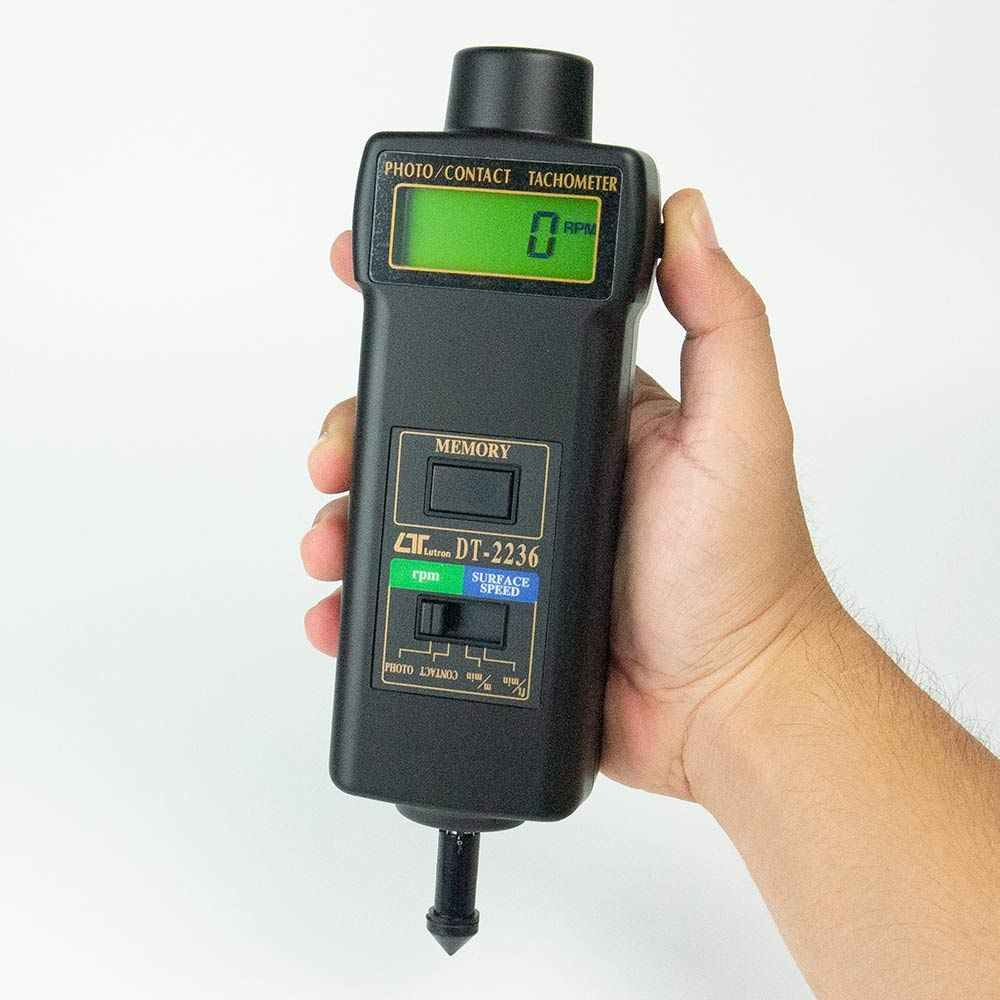

Lutron DT-2236 Digital Tachometer

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Compact & Pocket tachometer, most convenient for applications with combine Photo Tachometer and Contact Tachometer. 4 measurement units selectable RPM, m/min.,ft/min.,in/min. LCD display, clearly and easy-to-read the values. Durable, strong, light weight with ABS plastic housing.

Features Lutron DT-2236 Digital Tachometer

World’s patent, Multi-functions, one instrument combine Photo Tach.( RPM ) & Contact Tach. ( RPM, m/min., ft/min. )
Wide measuring range from 0.5 to 100,000 RPM
0.1 RPM resolution for the measured value < 1000 RPM
High precison with 0.05% accuracy
The last value, max., value, min. value will be stored into the memory automatically & can be obtained by pressing MEMORY CALL BUTTON
High visible LCD display gives RPM reading exactly with no guessing or errors & saves battery energy
This tachometer used the exclusive one chip MICRO-COMPUTER LSI circuit & crystal time base, offer the high accurate measurement & fast sampling time
The use of durable, long lasting components, including a strong, light weight ABS plastic housing, assures almost maintenance free performance for many years
The housing cabinet has been carefully shaped to fit comfortable in either hand

Specifications Lutron DT-2236 Digital Tachometer

Measurement & Range:
Photo Tachometer : 5 to 99,999 RPM
* Contact Tachometer : 0.5 to 19,999 RPM
* Surface Speed :
– m/min. – 0.05 to 1,999 m/min
– ft/min. – 0.2 to 6,560 ft/min
Resolution:
* RPM:
– 0.1 RPM ( < 1,000 RPM )
– 1 RPM ( ≧1,000 RPM )
Resolution:
* m/min.:
– 0.01 m/min. ( < 100 m/min. )
– 0.1 m/min. ( ≧100 m/min. )
– 1 m/min. ( ≧1000 m/min. )
* ft/min.:
– 0.1 ft/min. ( < 1,000 ft/mn. )
– 1 ft/min. ( ≧1,000 ft/mn. )
Display: 5 digits, 10 mm ( 0.4″ ) LCD
Accuracy: ±( 0.05% + 1 digit )
Time base: Quartz crystal
Circuit: Exclusive one-chip of microcomputer LSI circuit
Operating Temp.: 0 – 50 ℃ ( 32 – 122 ℉ )
Operating Humidity: Less than 80% R.H
Memory: Last/Max./Min. value

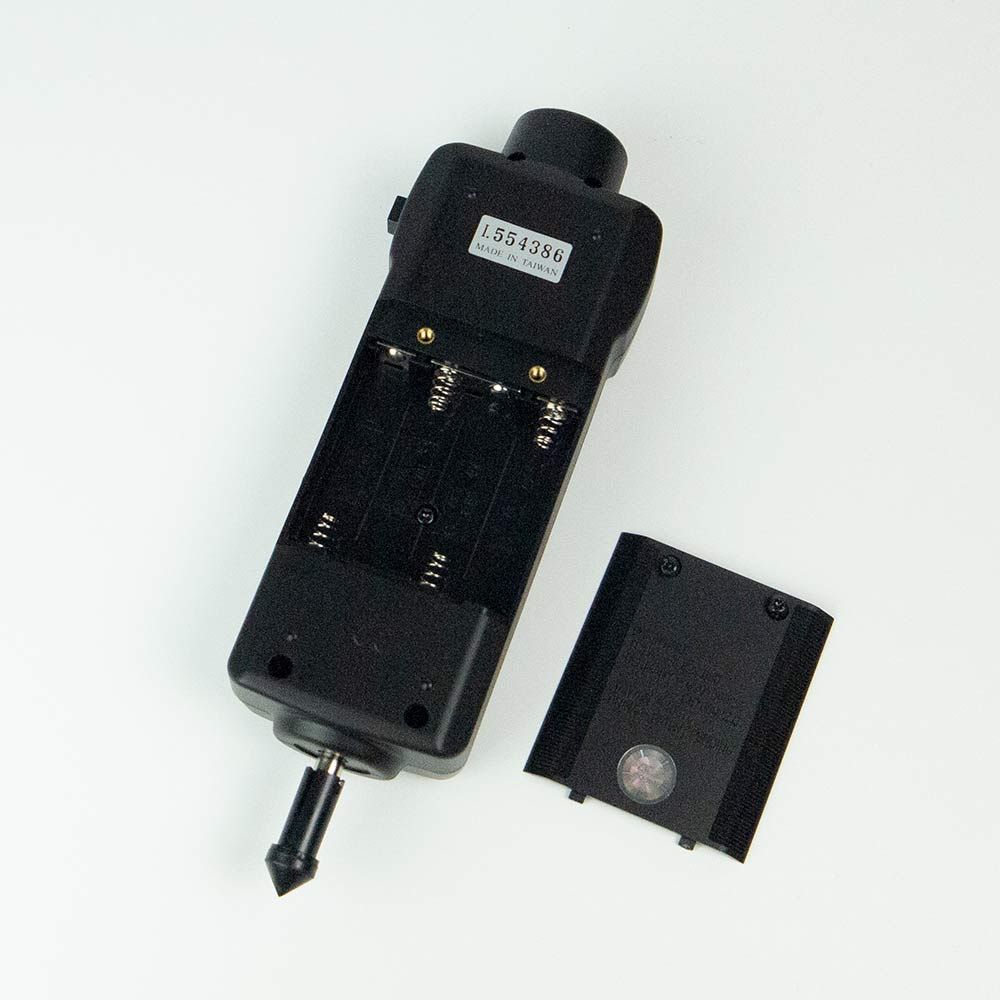

Battery: 4 x 1.5V AA ( UM-3 ) batteries
Power Consumption:
* Photo type : Approx. DC 44 mA
* Contact type : Approx. DC 8 mA
Size: 195 x 61 x 38.5 mm. ( 7.6 x 2.4 x 1.5 inch )
Weight: 211 g ( 0.46 LB ) * without batteries

Accessories Included:

Carrying case…………………1 PC
Reflecting tape marks ( 600 mm )…………………….1 PC
RPM adapter ( CONE )…………………………………1 PC
RPM adapter ( FUNNEL )…………………………………1 PC
Surface speed test wheel………………………………..1 PC
Operation manual………… 1 PC

Lutron DT-2236 – Datasheet
