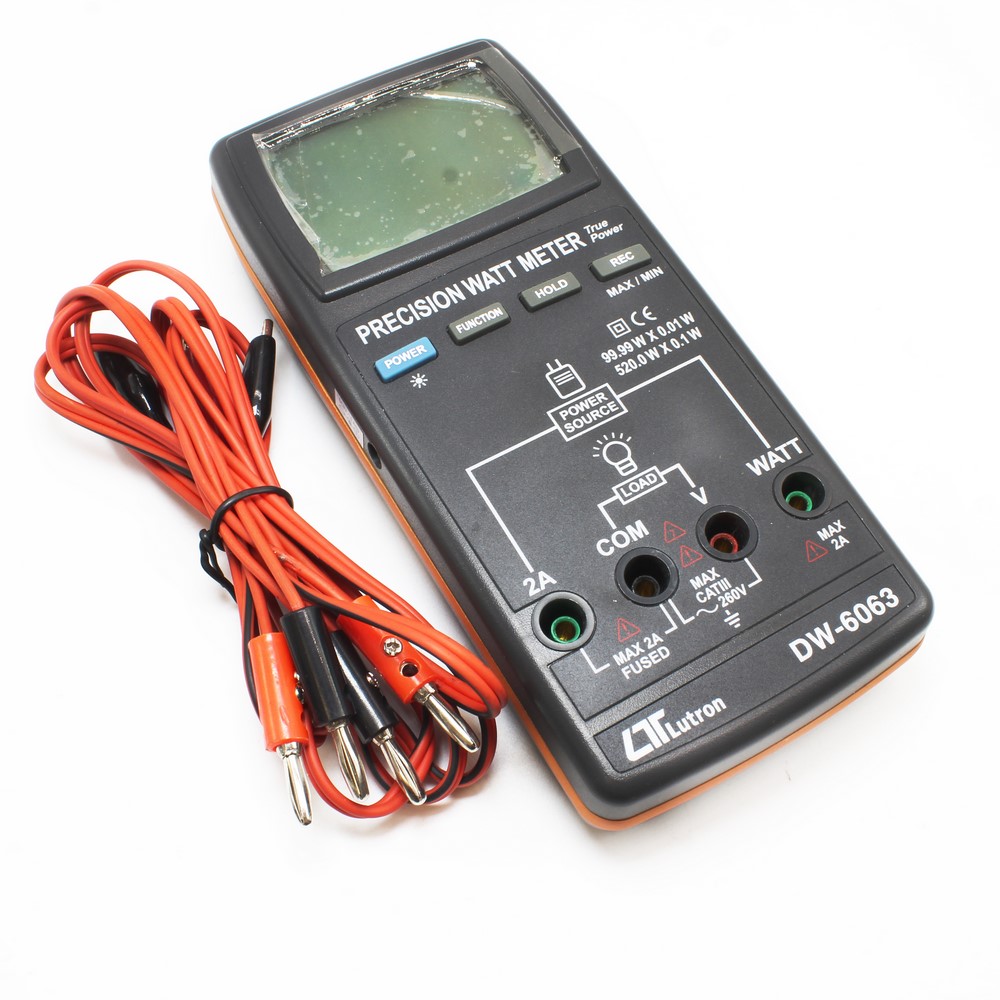

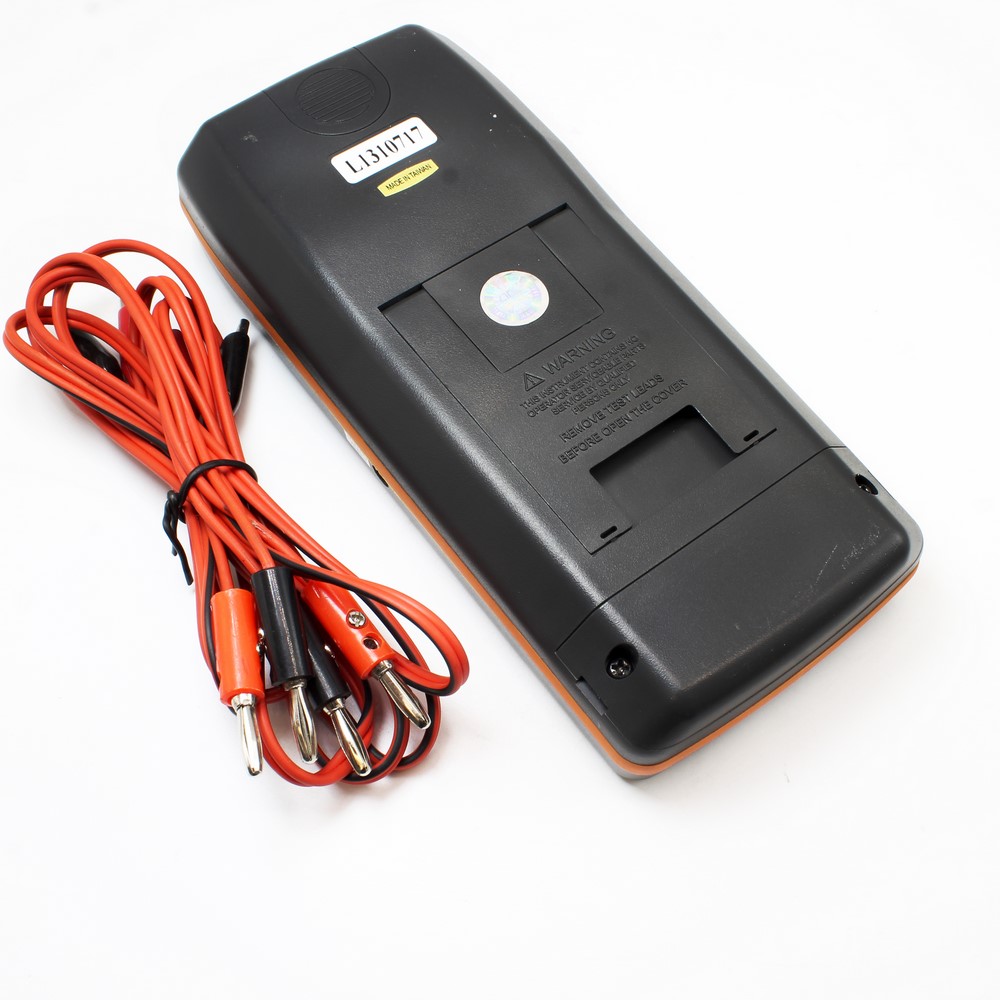

Lutron DW-6063 Precision Watt Meter

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

High precision watt meter Supports ACV, ACA, WATT, PF measurements with professional accuracy. Digital display, resolution up to 0.01W, measuring circuit designed for high reliability and durability. Get more accurate measurement results with True RMS function, extra large LCD screen. Dual display at the same time, support RS232 / USB Computer interface connection.

Features Lutron Lutron DW-6063 Precision Watt Meter

0.01 W resolution, precision Watt meter is special for low power measurement
Designed for the high resolution low power measurement
LSI – circuit provides high reliability and durability
Directly operation
Measurement :
* WATT ( AC ) : 99.99 W x 0.01 W, 520 W x 0.1 W
* ACV : 260V x 0.1 V
* ACA : 2 A x 1 mA / 1 A x 0.1 mA
* PF : 1.00 x 0.01
True Power and Wide range 0 W to 520 Watt
True RMS measurement of ACV / ACA
Super large LCD , Dual display at same time
Full function Auto range
Memory Record ( Max. , Min. ) , Data Hold
RS232 / USB Computer interface
Built-in low battery indicator
Built – in backlight easy to readout
Power : DC 9V ( 006P ) or AC to DC 9V adapter in

Specifications Lutron DW-6063 Precision Watt Meter

Circuit: Custom one-chip of microprocessor LSI circuit
Display:
* Large LCD display max. reading 9999
* Digit size : 21.8 x 8.5 mm
* Dual value display with backlight
Measurement Unit:
* ACV: 0.1 to 260.0 V
* ACA: 0.1 mA to 2000 mA
* WATT: 0.01 W to 520.0 W
* PF: 0.01 to 1.00
Over input: ” —- ” mark indication
Zero: Automatic adjustment
Sampling Time: Approx. 1 second
Data Hold: Freeze the display reading
Memory Recall: Maximum & Minimum value
Data output: RS232 / USB PC Computer interface
Operation Temperature: 0℃ to 50℃ ( 32℉ to 122℉ )
Operation Humidity: Less than 80% RH
Power Supply: Alkaline or Heavy duty type DC 9V battery 006P , MN1604 (PP3) or equivalent
Power Consumption: Approx. DC 10 mA
Weight: 398 g/0.88 LB
Dimension: 190 x 88 x 40 mm ( 7.5 x 3.5 x 1.6 inch )

Accessories Included:

Instruction manual………………….. 1 PC
Test lead (Red & Black)……………. 1 Pair

Optional Accessories:

AC to DC 9V adapter
Holster. HS-03
SD card DATA LOGGER, DL-9602SD
USB cable , USB – 01
RS232 cable , UPCB – 02
Data Acquisition software, SW-U801-WIN
Excel Data Acquisition software, SW-E802

Lutron DW-6063 – Datasheet
