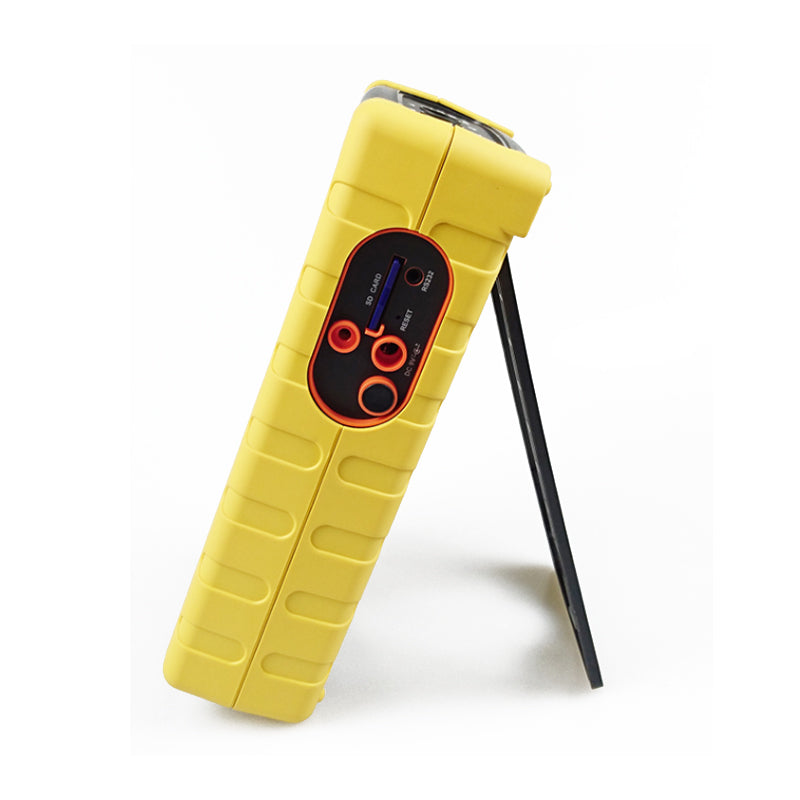

Lutron DW-6092 3 Phase Power Analyzer

Categories , Brand
Lutron DW-6092 3 Phase Power Analyzer
  • Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
  • Voltage & Current are the True RMS value
  • True Power ( KW、MW、GW ) measurement
  • Apparent Power ( KVA、MVA、GVA ) measurement
  • Reactive Power ( KVAR MVAR、GVAR) measurement
  • Watt-Hour ( WH、SH、QH、PFH )
  • Power Factor( PF )、Phase Angle( Φ )
  • Voltage measurement range : 10 to 600 ACV

Product Description

Lutron DW-6092 3 Phase Power Analyzer

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Power analysis functions ACV, ACA, Power factor, Phrase angle, Frequency, Active (Real) Power
Apparent Power, Reactive Power, Watt Hour, VA Hour, VAR Hour.

Features Lutron DW-6092 3 Phase Power Analyzer

  • Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
  • Voltage & Current are the True RMS value
  • True Power ( KW、MW、GW ) measurement
  • Apparent Power ( KVA、MVA、GVA ) measurement
  • Reactive Power ( KVAR MVAR、GVAR) measurement
  • Watt-Hour ( WH、SH、QH、PFH )
  • Power Factor( PF )、Phase Angle( Φ )
  • Voltage measurement range : 10 to 600 ACV
  • Current measurement range: 0.2A to 1200 ACA
  • Programmable CT ratio (1 to 600) and PT ratio (1 to 1000)
  • ACV input impedance is 10 Mega ohms
  • Safety Standard : IEC 1010, CAT III 600V
  • Built-in clock and Calendar, real time data record with SD memory card , sampling time set from 2 to 7200 seconds. Just slot in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/data/hour/mimute/second ) to the Excel directly, then user can make the further data analysis by themselves
  • Complete set with 4 PCs Test Leads, 4 PCs Alligator clips, 3 PCs Clamp Probe, AC to DC 9V adapter, 2 G SD memory card and Carrying bag
  • Computer data output, can cooperate with USB Cable /USB-01 RS232 cable/UPCB-02 and Data Acquisition software, SW-U811-WIN

Specifications Lutron DW-6092 3 Phase Power Analyzer

Circuit Custom one-chip of microprocessor LSI circuit
Display LCD Size : 81.4 X 61 mm ( 3.2 X 2.4 inch )
Dot Matrix LCD (320 X 240 pixels ) with back light
Measurement ACV
ACA
AC WATT ( True Power )
AC WATT( Apparent Power )
AC WATT( Reactive Power )
Power factor
Phase angle
Frequency
Wire connections 1P/2W, 1P/3W, 3P/3W, 3P/4W
Voltage ranges 10 ACV to 600 ACV, auto range
Current ranges 0.2 ACA to 1200 ACA, auto range/manual range
Safety standard IEC1010 CAT III 600 V
ACV input impedance 10 Mega ohms
Range select ACV: Auto range
ACA: Auto range & manual range
Clamp frequency response 40 Hz to 1 KHz
Spec. tested frequency 45 to 65 Hz
Over load protection ACV: 720 ACV rms
ACA: 1300 ACA with clamp probe CP-1200
Over Indicator Show ” OL “
Under Indicator Show ” UR “
Data Hold Freeze the display reading
Data Record SD Card Record
Sampling Time Approx. 1 second
Power ON/OFF Manual OFF by push button
Real time data logger Real time data logger, saved the data into SD memory card and down load the all the measured value with the time information ( year/month/data/hour/mimute/second ) down load to the Excel.
Integration time for data logger : 2 seconds to 7200 seconds, the during of setting step are 2 seconds.
Data Output USB/RS232: RS232 computer serial interface Connect the optional USB cable USB-01 will get the USB plug.
Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
Operating Temperature 0 to 50℃ ( 0 to 122℉ )
Operating Humidity Less than 80% R.H
Power Supply DC 1.5V, AA ( UM-3 ) Battery X 8 PCs (Alkaline or heavy duty battery)
AC to DC 9V power adapter
Power Consumption Meter : 300 DCmA
Clamp : 20 DCmA
Clamp max conductor Size: 86 mm ( 3.4 inch )
Weight Meter: 1049g ( includes batteries )
Clamp : 522g
Dimension Meter : 225 X 125 X 64 mm ( 8.86 X 4.92 X 2.52 inch )
Clamp : 210 X 64 X 33mm ( 8.3 X 2.5 X 1.3 inch )
Clamp Jaw : 50 mm (2.0 inch)- outside



Accessories Included:
  • Instruction manual…………………..1 PC
  • Test Leads (TL88-4AT)…………….. 1 Set (4 PCs)
  • Alligator clips (TL88-4AC)…………..1 Set (4 PCs)
  • Clamp Probe ( CP-1200 )………….. 3 PCs
  • AC to DC 9V adapter…………………1 PC
  • SD card ( 2 G )………………………. 1 PC
  • Carrying bag…………………………..1 PC
Optional Accessories:
  • USB Cable , USB-01
  • RS232 cable, UPCB-02
  • Data Acquisition software, SW-U811-WIN





Lutron DW-6092 – Datasheet

Produk asli Kami distributor langsung Lutron. Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Lutron

Model

DW-6092

Made In

Taiwan

Weight

6 kg

Accessories Included

Instruction manual
Test Leads (TL88-4AT)
Alligator clips (TL88-4AC)
Clamp Probe ( CP-1200 )
AC to DC 9V adapter
SD card ( 2 G )
Carrying bag
