Lutron EMF-839 3 Axis Radio Frequency Electromagnetic Field Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Lutron EMF-839 3 Axis Radio Frequency Electromagnetic Field Meter
- 3 Axis probe.
- Wide measuring frequency ranges, 100 KHz to 3 GHz.
- Radio frequency electromagnetic field tester
- EMF-839 is used for broadband devices of monitoring the wide range radio frequency electromagnetic field value.
- For precision measurement consideration, the meter are included two probes :
º EP-04L ( Low frequency Probe, 100 KHz to 100 MHz )
º EP-03H ( High frequency Probe, 100 MHz to 3 GHz ) - Unit : V/m, W/m^2, mW/cm^2.
- Alarm setting function can warn the user if the measuring antenna is too near the strong radiation sources, the buzzer will sound to remind the user.
- Peak hold function to latch peak value.
- Data hold function to lock the current reading.
- RS232 computer interface.
- Real time data logger, build in clock ( hour-MIN-sec.,year-month-date ).
- Auto or manual data record, 16,000 Data logger no.
- Wide sampling time adjustment range from one second to 8 hours 59 minutes 59 seconds.
- Compact metallic carry case.
- Large size LCD with contrast adjustment, which can fit best viewing angle.
- Microcomputer circuit provides special function & offers high accuracy.
- Powered by 006P DC 9V battery or DC 9V adapter.
Applications

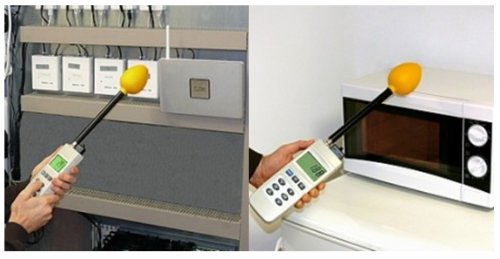

This meter is specially developed for measuring or monitoring electromagnetic field, for example: cell-phone station, hospital equipment, radar , micro-wave oven, radiation work, TV antenna , Radio station , welding equipment , baking- equipment, television , computer , factory, laboratory , and other environment…etc.
Specifications Lutron EMF-839 3 Axis Radio Frequency Electromagnetic Field Meter
- Circuit: Custom one-chip of microprocessor LSI circuit.
- Display: LCD size : 58 mm x 34 mm.
- Measurement Unit: V/m, mW/cm^2, W/m^2.
- Accuracy: < 2 dB.
- Probe structure: 3 Axis.
- Probe Type Selection:
º EP-03H : 100 MHz to 3 GHz.
º EP-04L : 100 kHz to 100 MHz. - Probe Input Impedance: 50 OHM
- Frequency Selection Points:
º EP-03H: 900 MHz, 1 GHz, 1.8 GHz, 2.4 GHz, 2.45 GHz, 3 GHz.
º EP-04L: 100kHz, 200kHz, 500kHz, 1MHz, 10MHz, 13.56MHz, 100MHz. - Sensor Structure: Semiconductor
- Sampling Time of Data Logger:
º Manual: Press the data logger button once will save data one time. * Set the sampling time to 0 second
º Auto: 1 sec to 8 hour 59 min. 59 sec. - Data Hold: Freeze the display reading.
- REC Function: Record Maximum & Minimum value.
- Power off: Auto shut off saves battery life or manual off by push button.
- Peak Hold: To latch the peak measurement value.
- Alarm Setting: Buzzer will sound when display over the setting value.
- Sampling Time: Approx. 1 second.
- Low Battery Indicator: When display show Low battery Indicator, it should change the batteries.
- Data Output: RS 232 PC serial interface.
- Operating Temperature: 0 to 50℃ .
- Operating Humidity: Less than 80 %RH.
- Power Supply:
º DC 9 V battery ( 006P ) * Heavy duty or Alkaline type.
º DC 9V adapter input. - Power Current: Approx. DC 5.95 mA
- Weight: 523 g/ 1.16 LB.
- Dimension:
º Main instrument : 200.0 x 76.2 x 36.8 mm
º Probe : 70 mm ( diameter) x 290 mm ( length)
Accessories Included:
- Instruction manual………………………1 PC
- EP-03H Probe………………………… 1 PC
- EP-04L Probe…………………………… 1 PC
- Memory card for EP-03H…………….. 1 PC
- Memory card for EP-04L…………….. 1 PC
- DC 9V power adapter………………… 1 PC
- Metal carrying case……………………..1 PC
Optional Accessories:
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- Data Acquisition software,SW-U801-WIN.
- Data Logger software, SW-DL2005.
Lutron EMF-839 – Datasheet
