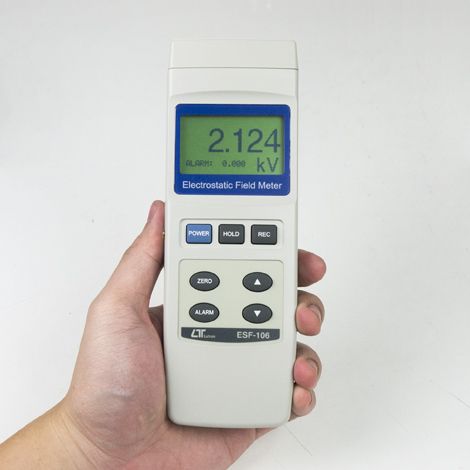

Lutron ESF-106 Electrostatic Field Meter

Description

Lutron ESF-106 Electrostatic Field Meter

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Features Lutron ESF-106 Electrostatic Field Meter

• Measuring ranges: 0.010 KV to 20.000 KV / -0.010 KV to -20.000 KV
• Sampling time: 0.5 sec
• High Voltage alarm: 20.000 KV
• Warning alarm setting
• Measuring distance: 2.54 cm (1 inch)
• Data hold
• Peak hold (MAX or MIN)
• Auto power off
• USB/RS232 Computer interface
• Low Battery indicate

Specifications Lutron ESF-106 Electrostatic Field Meter

• Static Voltage Range: 19.999 to -19.999 kV
• Resolution: 0.001 kV
• Accuracy: within (95% + 50d) at 18 to 28′”
• Display LCD size: (51x30mm)
• Max. indication: 19999
• Measurement Static Voltage: -19.999 kV to +19.999 kV
• Over input ” —- ” mark indication
• Zero adjustment ZERO button
• Sampling time Approx. 0.5 second
• Operating Temperature: 0° to 50° C / 32° F to 122° F
• NOTE most batteries are not rated for below -4° F or above 125° F
• Operating Humidity: less than 80% RH non-condensing
• Power supply: (1) 9v Alkaline or equivalent battery
• Power consumption: approximate 6mA DC
• Weight: approximately 8 ounces (215 g)
• Dimensions: 7.6″ x 2.6″ x 1.2″ (195 x 68 x 30mm)

Accessories included:

• Lutron ESF-106
• Instruction manual
• 1″ Magnetic Spacer
• Ground wire
• Ground CLIP
• Carrying case, CA-06

Optional Accessories:

• USB cable, USB-01
• RS232 cable, UPCB-02
• Data Acquisition software, SW-U801-WIN acquisition-software-1
• Excel Data Acquisition software, SW-E802
• SD card data logger, DL-9602SD

Lutron ESF-106 – Datasheet
