Description

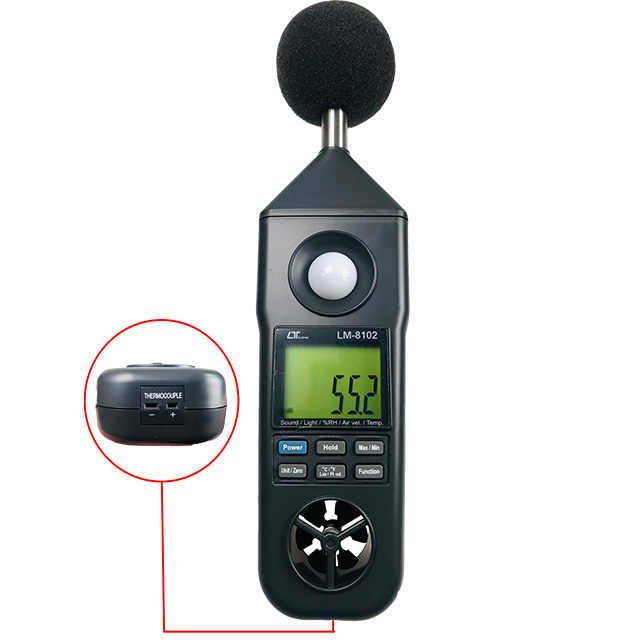

Lutron LM-8102 5 in 1 Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Portable 5 in 1 multi-functional meter comes with Sensor, providing fast response. And many functions in use such as Data Hold, Record Min/ Max., “A” frequency weighting and “Fast” time weighting : IEC 61672 class 2 with Thermocouple Type K temperature probe connector (separate probe available) The machine is small, compact, lightweight, easy to carry.
Features Lutron LM-8102 5 in 1 Meter
- 5 in 1 professional measuring instrument: Anemometer, Hygrometer, Type K Thermometer, Light meter. Sound level meter
- Anemometer use low-friction ball bearing mounted wheel design provides high accuracy
- Light meter use exclusive photo diode and color correction filter light sensor, spectrum meets C.I.E. photopic
- Type K thermometer use standard type K (NiCr-NiAl) thermocouple input jack suitable for all kinds of type K probe
- Humidity meter use high precision humidity sensor with fast response time
- Sound level meter’s characteristic is simulated as ” Human Ear Listing” response, used the ” A ” frequency weighting and ” Fast ” time weighting to meet IEC 61672 class 2
- Sound level meter can cooperate the external 94 dB sound calibrator and just press the front buttons to make the calibration
- Built- in microprocessor circuit assures excellent performance and accuracy
- Concise and compact buttons arrangement, easy operation
- Memorize the maximum and minimum value with recall
- Hold function to freeze the current reading value
- ℃/℉detection by pressing button on the front panel
- Lux/Feet-candle selection by pressing front button
- Air velocity measuring units selection by pressing button on the front panel for five kinds of units
- Multi channel display for relative humidity and temperature measured values or air velocity and temperature measured values at the same time
- Zero button design makes light meter calibration
- Rough housing case suitable for handling with one hand
- RS232/USB computer data bus
Specifications Lutron LM-8102 5 in 1 Meter
- Display: LCD display, LCD soze : 41.5 x 31.5 mm
- Measurement:
* 5 in 1 :
– Anemometer ( Air velocity + Temp. )
– Humidity ( %RH + Temp. )
– Light
– Thermometer ( type K )
– Sound level - Operating Humidity: Max. 80 %RH
- Operating Temperature: 0 to 50° C (32 to 122° F)
- Over Input Display: Indication of “- – – – “
- Data Output: RS 232/USB PC serial interface
- Power Supply:
– DC 1.5 V battery ( UM4, AAA ) x 6 PCs
– DC 9V adapter input - Power Consumption:
– Anemometer : Approx. DC 11 mA
– Other functions : Approx. DC 7.5 mA - Weight: 335 g/0.74 LB ( battery included )
- Dimension: HWD 248 x 70 x 34 mm ( 9.8 x 2.8 x 1.3 inch)
Standard Accessories:
- Instruction Manual: 1 pc
Optional Accessories:
- Carrying case
- Type K Temperature probe
- Sound Calibrator/SC-941
- USB cable/USB-01
- RS232 cable/UPCB-02
- Data Acquisition software, SW-U801-WIN
- AC to DC power adapter
Lutron LM-8102 Datasheet
