Product Description

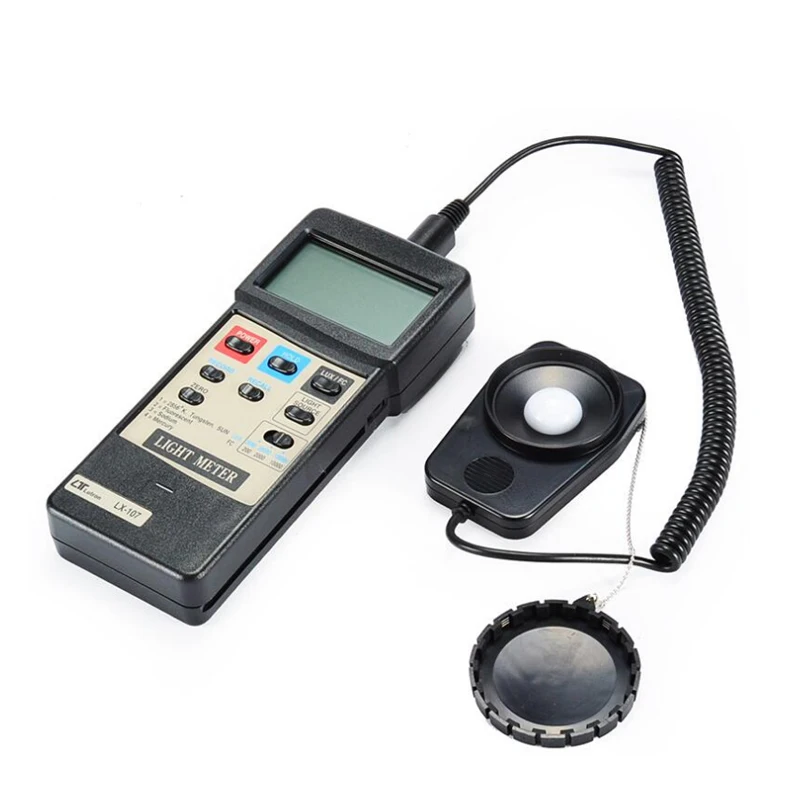

Lutron LX-107 Light Meter

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Light Meter Is a test tool to measure the intensity of light or measure the amount of light that enters through this light measuring test tool. In photography, a light meter is often used to determine the correct exposure or aperture for a photo. Usually a light meter will include a computer, either digital or analog.

Features Lutron LX-107 Light Meter

Selection of lighting type (Tungsten, Fluorescent, Sodium or Mercury)
Microprocessor circuit assures maximum possible accuracy, provides special
functions and features
Super large LCD display, easy readout
Dual function meter’s display
Zero adjustment by push button
Heavy duty & compact housing case
Records Maximum, Minimum and Average readings with recall
Data hold
Auto shut off saves battery life
Operates from 006P DC 9V battery
Spectrum of photo sensor meets C.I.E..
Wide measurement both of Lux & Foot Candle measurement

Specifications Lutron LX-107 Light Meter

General Specifications

Display	* 13 mm(0.5″) super large LCD display with contrast adjustment for best viewing angle * Dual function meter’s display
Measurement & ranges	Lux : 0 – 100,000 Lux, 3 ranges Foot-candle(Fc) : 0 -10,000 Fc, 3 ranges
Lighting Type Selection	Tungsten, Fluorescent, Sodium, Mercury lamp
Memory Recall	Records Maximum, Minimum and Average readings with recall
Zero	Adj. By push button
Power off	Auto shut off saves battery life, or manual off by push button
Sensor	The exclusive photo diode & color correction filter, spectrum designed to meet C. I. E.
Power Supply y	006P DC 9V battery (Heav Duty Type)
Power Current	Approx. DC 5.3 mA
Weight	335 g/0.77 LB
Dimension	Main instrument : 180 x 72 x 32 mm (7.1 x 2.8 x1.3 inch)
Accessories Included	Instruction manual Sensor probe 1 PC
Optional Accessories	Battery 9 Volt Soft Carrying Case, CA-05A Hard Carrying Case, CA-06

Electrical Specifications (23#5 )
Measurement	Range In-range	Display	Resolution	Accuracy
Lux	2,000 Lux	0 – 1,999 Lux	1 Lux	#( 5 % + 2 d )
	20,000 Lux	1,800 – 19,990 Lux	10 Lux	#( 5 % + 2 d )
	100,000 Lux	18,000 – 10,000 Lux 1	00 Lux	50,000 Lux : #( 5 % + 2 d ) > 50,000 Lux : “for reference only, fno specify the accuracy.”

Foot-candle ( Fc )	200 Fc	0 – 186.0 Fc	0.1 Fc	#( 5 % + 2 d )
	2,000 Fc	167 – 1,860 Fc	1 Fc	#( 5 % + 2 d )
	10,000 Fc	1,670 – 10,000 Fc	10 Fc	4,650 Fc : #( 5 % + 2 d )
				> 4,650 Fc
				for reference only,
				fno specify the accuracy.
