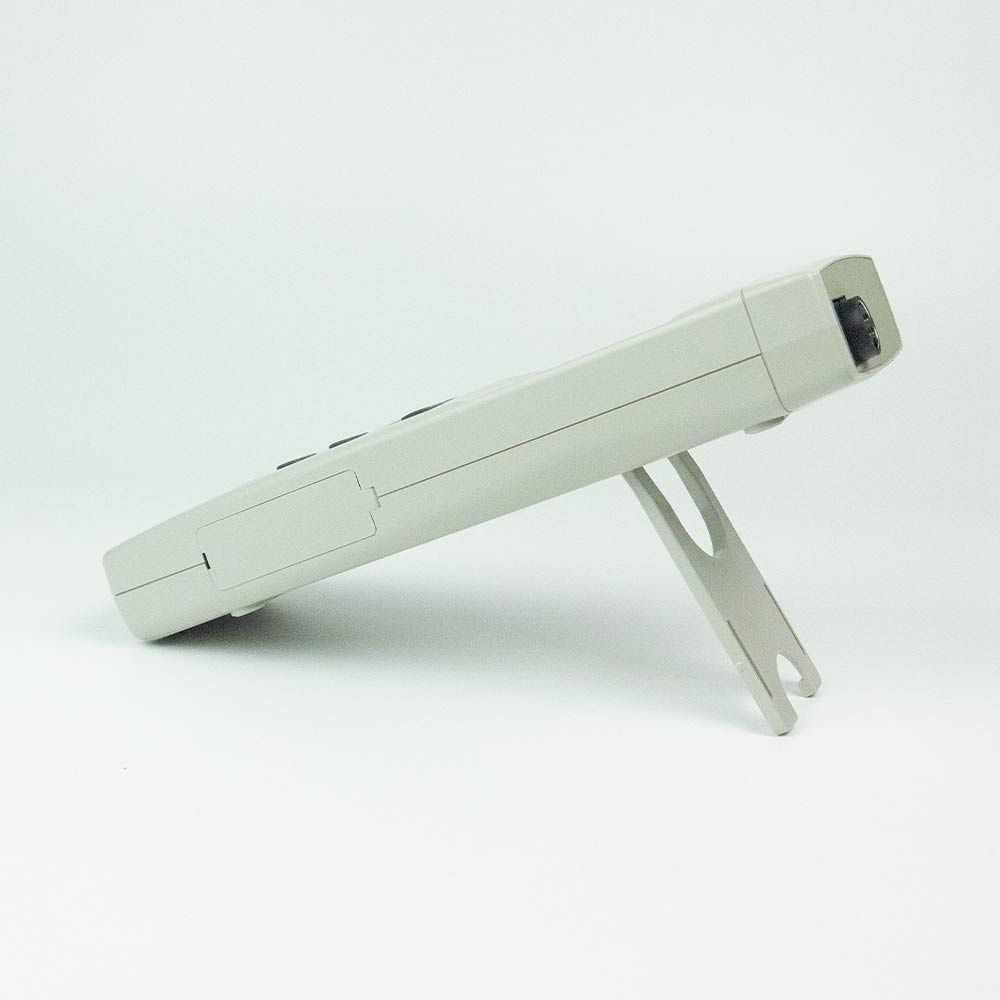

Lutron LX-1108 Light Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
4 light type selection Light Meter such as, tungsten, Fluorescent, Sodium, Mercury lamp with wide measuring range and Lux, Foot-candle (Fc) units. In addition, more functions such as, Data hold, Peak hold, Record (max., min.,) with Recall, Auto power off. Compact size and excellent operation.
Features Lutron LX-1108 Light Meter
- 5 ranges: 40.00/400.0/4,000/40,000/400,000 Lux
- Resolution: 0.01 Lux to 100 Lux. 0.01 Ft-cd to 10 Ft-cd
- Selection of lighting type (Tungsten, Fluorescent, Sodium or Mercury)
- Sensor used the exclusive photo diode & color correction filter, spectrum meet C.I.E. photopic
- Sensor cosine correction factor meet standard
- Separate Light Sensor allows user to measure the light at an optimum position
- Lux & Foot-candle unit selection
- Large LCD display with bar graph
- Water resistance front panel
- Zero adjusting button
- Data hold and Peak hold
- Memory function with Recall. Auto
- Auto power off or manual power off
- RS-232 computer data output
Specifications Lutron LX-1108 Light Meter
| Display | Large LCD display, LCD size 52 x 38 mm, 4 digits with bargraph indicator |
| Unit | Lux, Foot-candle (Fc) |
| Lighting Type Selection | Tungsten, Fluorescent, Sodium, Mercury lamp |
| Sensor | The exclusive photo diode & color correction filter, spectrum meet |
| Data output | RS-232 serial data output |
| Power requirement | Battery DC 9V |
| Dimensions/ Weight | Main unit: 200 x 68 x 30 mm/ 220 g Sensor probe: 82 x 55 x 7 mm |
Elecrical Specifications ( 2 3± 5 )
| Measurement | Range | Resolution | Accuracy |
| Lux | 40.00 Lux | 0.01 Lux | ± (3% rdg + 0.5% FS) |
| 400.0 Lux | 0.1 Lux | ||
| 4,000 Lux | 1 Lux | ||
| 40,000 Lux | 10 Lux | ||
| 400,000 Lux | 100 Lux | ± (3% rdg + 0.5% FS) : < 100,000 Lux | |
| Foot-candle (Fc) | 4.000 Fc | 0.001 Fc | ± (3% rdg + 0.5% FS) |
| 40.00 Fc | 0.01 Fc | ||
| 400.0 Fc | 0.1 Fc | ||
| 4,000 Fc | 1 Fc | ||
| 40,000 Fc | 10 Fc | ± (3% rdg + 0.5% FS) : < 9,300 Fc |
Accessories Included:
- Instruction Manual
- Light Sensor with protection cover
Optional accessories:
- Batere kotak 9 Volt
- USB-01 USB Cable
- Data acquisition Software SW-U801-WIN
- Hard case CA-06
Lutron LX-1108 – Datasheet
