Product Description

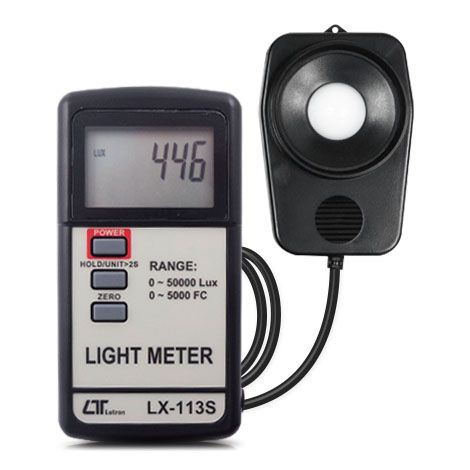

Lutron LX-113S Light Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The Lutron Auto Ranging Digital Light Meter measures in both Lux and Foot Candles
Features Lutron LX-113S Light Meter
- 2,000/20,000/50,000 Lux , Autorange
- Light sensor used the exclusive photo diode & color correction filter, spectrum meet C.I.E. photopic
- Light sensor cosine correction factor meet standard
- Separate Light Sensor allows user to measure the light at an optimum position
- Light meter can default the display unit to Lux or Ft-cd with default
- Zero key function
- Sepeare light probe, easy operation
- Microprocessor circuit
- DC 9V battery ( 006 P )
- Microcomputer circuit provides high accuracy
- Data hold function for freezing the desired value
- Built-in low battery indicator
Specifications Lutron LX-113S Light Meter
- Measurement range:
- LUX:
- 0 to 1,999 LUX, Resolution 1
- 2,000 to 19,990 LUX, Resolution 10
- 20,000 to 50,000 LUX, Resolution 100
- Foot-Candles (FC):
- 0 to 1.99 FC, Resolution 0.1
- 200 to 1,999 FC, Resolution 1
- 2,000 to 5,000 FC, Resolution 10
- LUX:
- Accuracy is within: plus or minus (5% + 4 digits)
- Sampling time: approximately 1 second
- Display: 0.5″ LCD, 3 1/2 digits, Max indication 1999
- Sensor: exclusive photo diode & color correction filter
- Operating humidity range: less than 80%, non condensing
- Operating temperature range: 32° to 122° F (0° to 50° C)
- Weight: approximately 7ounces (195 grams) with battery installed
- Power supply: (1) 9v alkaline battery
- Power current: approximately DC 2.7mA
- Dimensions:
- Meter: 5.3″ x 2.4″ x 1.3″ (135 x 60 x 33 mm)
- Sensor probe: 3.2″ x 2.2″ x 0.3″ (82 x 55 x 7 mm)
Electrical Specifications (23± 5 )
LUX @ auto range
Range : In-range Display : Resolution : Accuracy
2,000 LUX : 0-1,999 LUX : 1 LUX : ± ( 5 % + 4 LUX )
20,000 LUX : 2,000-19,990 LUX : 10 LUX : ± ( 5 % + 40 LUX )
50,000 LUX : 20,000-50,000 LUX : 100 LUX : ± ( 5 % + 400 LUX )
Feet-candle ( Ft-cd ) @ auto range
Range : In-range Display : Resolution : Accuracy
200 FC : 0-199.9 Ft-cd : 0.1 FC : ± ( 5 % + 0.4 FC )
2,000 FC : 200-1,999 : Ft-cd 1 FC : ± ( 5 % + 4 FC )
5,000 FC : 2,000-5,000 : Ft-cd 10 FC : ± ( 5 % + 40 FC )
Accessories Included:
- Instruction manual………………..1 PC
- Light probe………………………….1 PC
Optional Accessories:
- Carrying case, CA-52A
Lutron LX-113S – Datasheet
