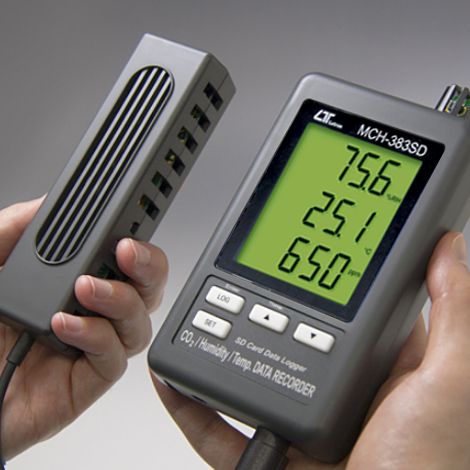

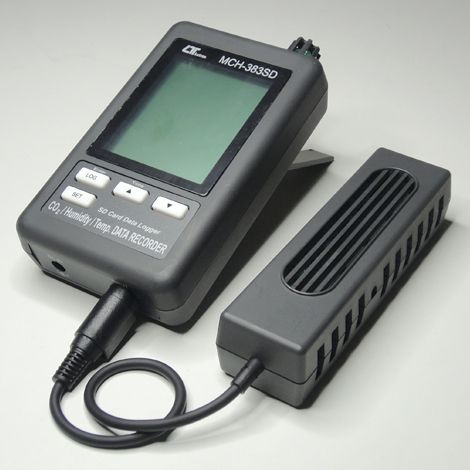

Lutron MCH-383SD CO2/Humidity/Temp. Monitor

Product Description

Lutron MCH-383SD CO2/Humidity/Temp. Monitor

CV. Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Features Lutron MCH-383SD CO2/Humidity/Temp. Monitor

• Monitor with real time data logger, save the measuring data along the time information ( year, month, date, minute, second ) into the SD memory card and can be down load to the Excel, extra software is no need. user can make the further data or graphic analysis by themselves.
• Show CO2 ( Carbon dioxide ), Humidity and Temperature value in the same LCD.
• NDIR method principal for CO2 ( Carbon dioxide ) measurement, available for long term operation. high repeatability and high accuracy.
• 0.1 %RH resolution for the humidity reading, 0.1 degree resolution for the Temp. reading.
• Used the precision capacitance type humidity sensor, professional and high accuracy.
• SD card capacity : 1 GB to 16 GB.
• Large LCD display, easy readout.
• Microcomputer circuit, high reliability.
• Low power consumption and long battery life when use battery power.
• DC 1.5V ( UM-4, AAA ) battery x 6 PCs or DC 9V adapter in.
• RS232/USB computer interface.
• Patented

Specifications Lutron MCH-383SD CO2/Humidity/Temp. Monitor

• Circuit: Custom one-chip of microprocessor LSI circuit.
• Display: LCD size : 60 mm x 50 mm
• Measurement:
  * CO2 ( Carbon dioxide )
  * Humidity and Temperature
• Unit:
  * CO2: ppm
  * Humidity: %RH
  * Temp.: ?, ?
• CO2 Sensor Structure: NDIR
• Response Time for CO2 measurement: CO2 : < 2 min. typically.
• Temperature Compensation: Automatic temp. compensation for CO2 measurement.
• Datalogger Sampling Time: 5 seconds.
• Advanced setting:
  * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
  * Decimal point of SD card setting
  * Set temperature unit to ℃ or ℉
  * Set sampling time mode ( power consumption mode ).
  * SD memory card Format
• Memory Card: SD memory card. 1 G to 16 G.
• Update Time of Display: Approx. 1 second if measuring data is changed.
• Data Output: RS 232/USB PC computer interface.
• Operating Temperature: 0 to 50 ℃.
• Operating Humidity: Less than 85% R.H.
• Power Supply: DC 9V adapter input. ( AC/DC power adapter is included ).
• Power Consumption:
  * Approx. DC 9.6 mA for 90% period.
  * Approx. DC 128 mA for 10% period.
• Weight:
  * Meter: 240 g/0.53 LB.
  * CO2 probe: 158 g/0.35 LB.
• Dimension:
  * Meter: 132 x 80 x 32 mm ( 5.2 x 3.1 x 1.3 inch )
  * CO2 probe: 132 x 38 x 32 mm

Accessories Included:

• Instruction manual………………………1 PC
• AC to DC 9V adapter……………………1 PC

Optional Accessories:

• SD Card ( 1 GB )
• SD Card ( 2 GB )
• USB cable, USB-01.
• RS232 cable, UPCB-02.
• Data Acquisition software, SW-U801-WIN.

Lutron MCH-383SD – Datasheet
